| LED power supply 24V3A |
| Item No.: IN2403000 |
|
|
| Features/ Functions |
|
- LED power supply for LED light
- Power-on LED indicator
- Powe factor control
- Constant output current
- Comply with ENERGY STAR
- Certifications: UL, CUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick, RoHS
|
|
 |
|
|
| General Specifications |
|
- Input :100-240VAC, 50/60Hz
- Output voltage : 10 ～ 24VDC
- Output current : 3A +/- 5%
- Ripple : 350 mVp-p Max.
- Inrush current : Limited 15A for a cold start
- No load standby power ≤0.5W
- Efficiency: 85 % Min.
- Powr factor: 0.9 Min.
- Operating temperature: -29℃～+45.5℃
- Storage temperature: -40℃～+75℃
- Operating relative humidity: 5%～95% RH
- Over load protection: Auto recovery
- Short circuit protection: Auto recovery
- MTBF: 30000 hours full rated load at 25℃

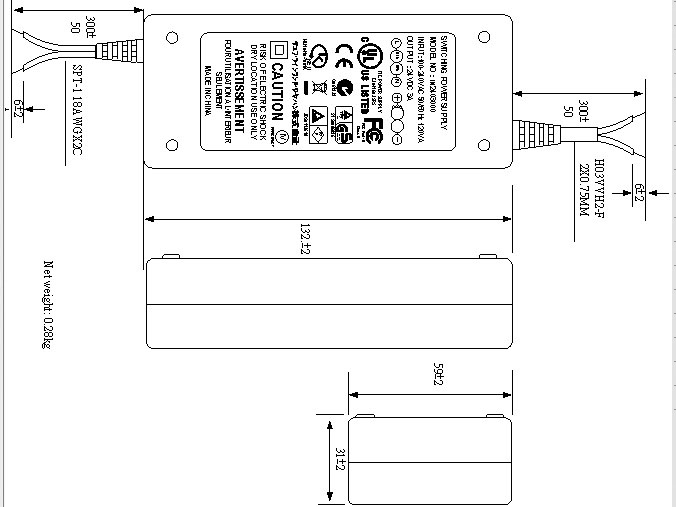

- Case dimension: 134X59X31.5mm
- Warranty: 3 year
|
|
|
 |
|
 |
|
