MCU 3S Cell Ni-mh battery charger 4.2V 1A
Item No.: IN4201000
Features/ Functions
MCU controls charge process
Sensing and following the battery voltage
Constant output current
Stop charge once charge completed
A dual color LED indicates charge status
Safety standard approvals: SAA, RCM, C-tick
General Specifications
Input :100-240VAC, 50/60Hz
Output voltage : 2.4~4.5VDC
Output current : 1A+/-0.1A
Inrush current : Limited 15A for a cold start
No load standby power ≤0.5W
Efficiency: 75% Min.
Operating temperature: -29℃~+45.5℃
Storage temperature: -40℃~+75℃
Operating relative humidity: 5%~95% RH
Over load protection: Auto recovery
Short circuit protection: Auto recovery
MTBF: 30000 hours full rated load operation at 25℃

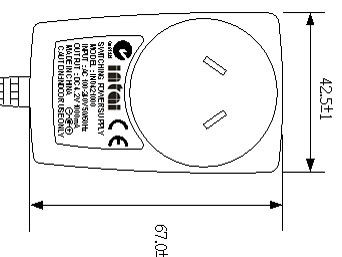

Case dimension: 67.5X42.5X27.5mm
AQL: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5
