MCU Smart 2S Cell Ni-mh battery charger 3V 0.5A
Item No.: IN0300500
Features/ Functions
MCU controls the whole charge process and guarantees the battery pack is fully charged, and also avoids battery pack over charge.
Automatic detection of shorted/ bad battery
LED indicate the charge status
Safety standard approvals: GS, CE, BS, CB, EMCk
General Specifications
Input :100-240VAC, 50/60Hz
Output voltage : 0.6~3 VDC
Output current: 500 mA
Inrush current : Limited 30A for a cold start
No load standby power ≤0.5W
Efficiency: 70% Min.
Operating temperature: -29℃~+45.5℃
Storage temperature: -40℃~+75℃
Operating relative humidity: 5%~95% RH
Over load protection: Auto recovery
Short circuit protection: Auto recovery
MTBF: 30000 hours full rated load operation at 25℃

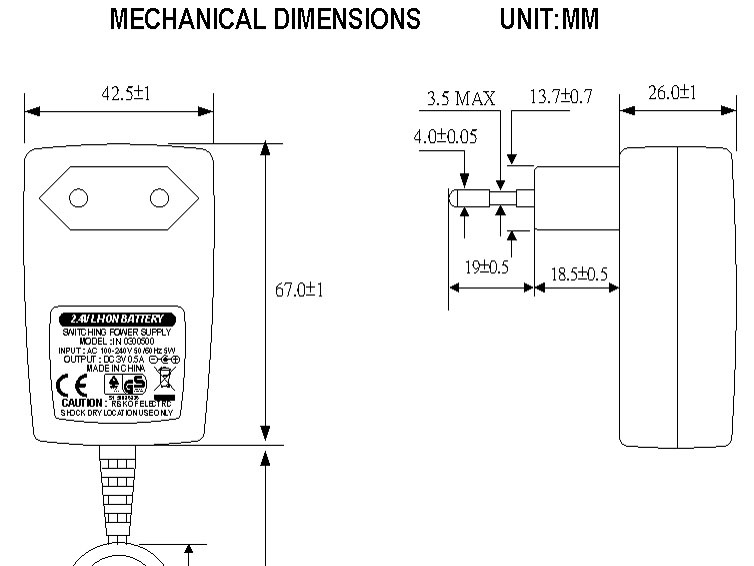

Case dimension: 67.5X42.5X27.5mm
Inspection: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5 3
Warranty: 3 year
