| 10S cell Ni-mh battery charger 15V 0.6A |
| Item No.: IN1500600 |
|
|
| Features/ Functions |
- MCU controls the whole charge process and guarantees the battery pack is fully charged, and also avoids battery pack over charge.
- Automatic detection of shorted/ bad battery
- LED indicate the charge status
- Terminate charging once the battery pack is full
- A two-color LED indicating charge status
- Comply with MEPS
- Safety standard approvals: SAA, CB, C-tick
|
|
 |
|
|
| General Specifications |
- Input :100-240VAC, 50/60Hz
- Output voltage : 8~15VDC
- Output current : 600 mA
- Inrush current : Limited 15A for a cold start
- No load standby power ≤0.5W
- Efficiency: 80% Min.
- Operating temperature: -29℃～45.5℃
- Storage temperature: -40℃～75℃
- Operating relative humidity: 5%～95% RH
- Over load protection: Auto recovery
- Short circuit protection: Auto recovery
- MTBF: 30000 hours full rated load at 25℃

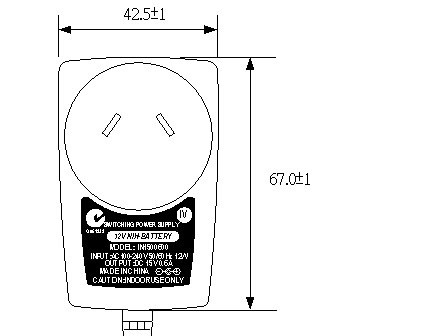

- Case dimension: 67.5X42.5X27.5mm
- AQL: MIL-STD-105D II CRI 0; MAJ 0.25; MIN 2.5
|
|
|
 |
|
 |
|
