| Battery charger for power tool 30V 3A |
| Item No.: IN3003000 |
|
|
| Features/ Functions |
|
- Smart 3 stage power tool battery charger 7 cell Li-ion battery
- Continuously monitoring the battery voltage
- Constant output current to provide protection
- Terminating the charge once battery pack is full
- LED indicate the charge status
- Safety standard approvals: UL, CUL, GS, CE, BS, SAA, RCM, PSE, CB, FCC, EMC, C-tick
|
|
 |
|
|
| General Specifications |
- Input :100-240VAC, 50/60Hz
- Output voltage : 21～30 VDC
- Output current : 3A +/-300
- Inrush current : Limited 15A for a cold start
- No load standby power ≤0.5W
- Efficiency: 88% Min.
- Operating temperature: -29℃～+45.5℃
- Storage temperature: -40℃～+75℃
- Operating relative humidity: 5%～95% RH
- Over load protection: Auto recovery
- Short circuit protection: Auto recovery
- MTBF: 30000 hours full rated load operation at 25℃

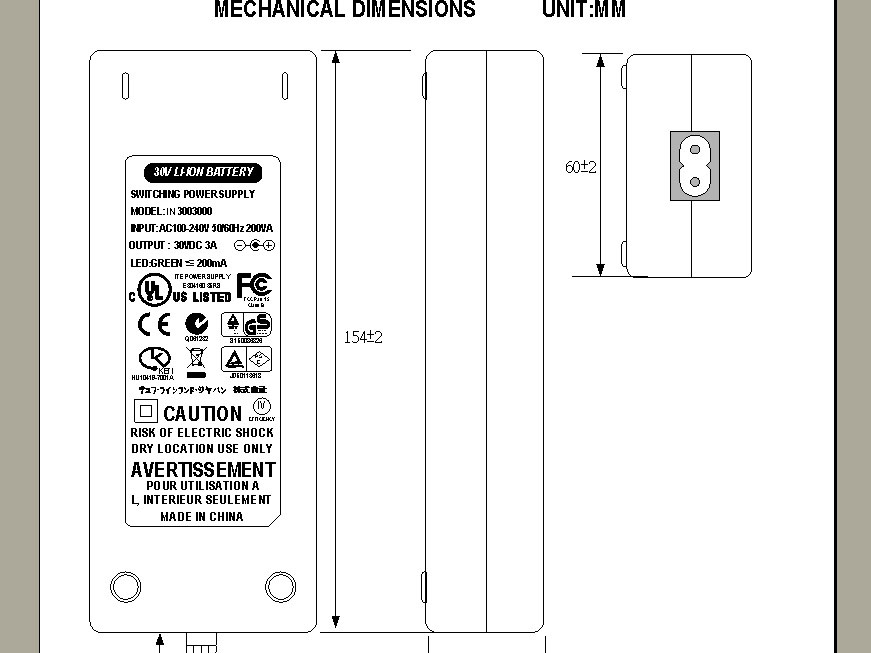

- Case dimension: 154X60X35mm
- Inspection: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5
- Warranty: 3 year
|
|
|
 |
|
 |
|
