| 2 series cell Lead-acid battery charger 29V1.5A |
| Item No.: IN2901500 |
|
|
| Features/ Functions |
- Smart 3 stage battery charger
- Sensing and following battery voltage
- Constant charging current
- Stopping charging battery once it is full
- With a two-color LED charging status indicator
- Safety standard approvals: UL, CUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick
|
|
 |
|
|
| General Specifications |
- Input :100-240VAC, 50/60Hz
- Output voltage : 29 VDC +/-5%
- Output current : 1.5A
- Inrush current : Limited 15A for a cold start
- No load standby power ≤0.5W
- Efficiency: 85% Min.
- Operating temperature: -29℃～+45.5℃
- Storage temperature: -40℃～+75℃
- Operating relative humidity: 5%～95% RH
- Over load protection: Auto recovery
- Short circuit protection: Auto recovery
- MTBF: 30000 hours full rated load operation at 25℃

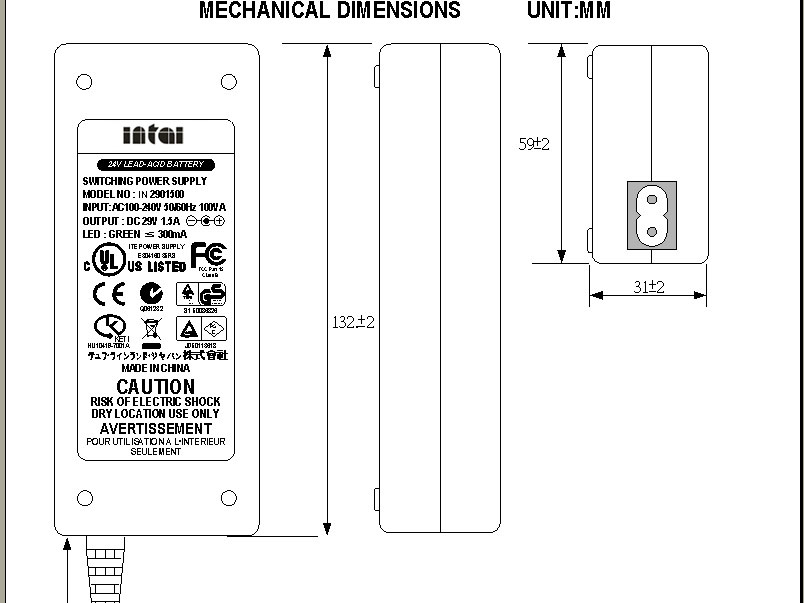

- Case dimension: 134X59X31.5mm
- Inspection: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5
- Warranty: 3 year
|
|
|
 |
|
 |
|
