aa battery charger 3S cell Nimh charger 4.2V 2A
Item No.: IN0422000
  Features/ Functions



  • Automatic detection of shorted/ bad battery or battery inversed input
  • MCU Charger for 3s cell Ni-mh battery pack
  • LED indicate the charge status
  • Safety standard approvals: UL, CUL, PSE, CB, FCC,

  General Specifications
  • Input :100-240VAC, 50/60Hz
  • Output voltage : 2.4 ~4.2VDC
  • Output current : 2A
  • Inrush current : Limited 15A for a cold start
  • No load standby power ≤0.5W
  • Efficiency: 80% Min.
  • Operating temperature: -29℃~+45.5℃
  • Storage temperature: -40℃~+75℃
  • Operating relative humidity: 5%~95% RH
  • Over load protection: Auto recovery
  • Short circuit protection: Auto recovery
  • MTBF: 30000 hours full rated load operation at 25℃

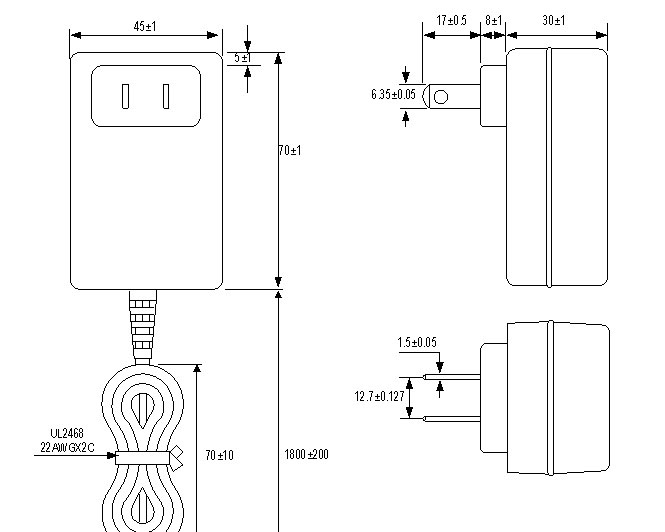

  • Case dimension: 70 x 45 x 31 mm
  • Inspection: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5
