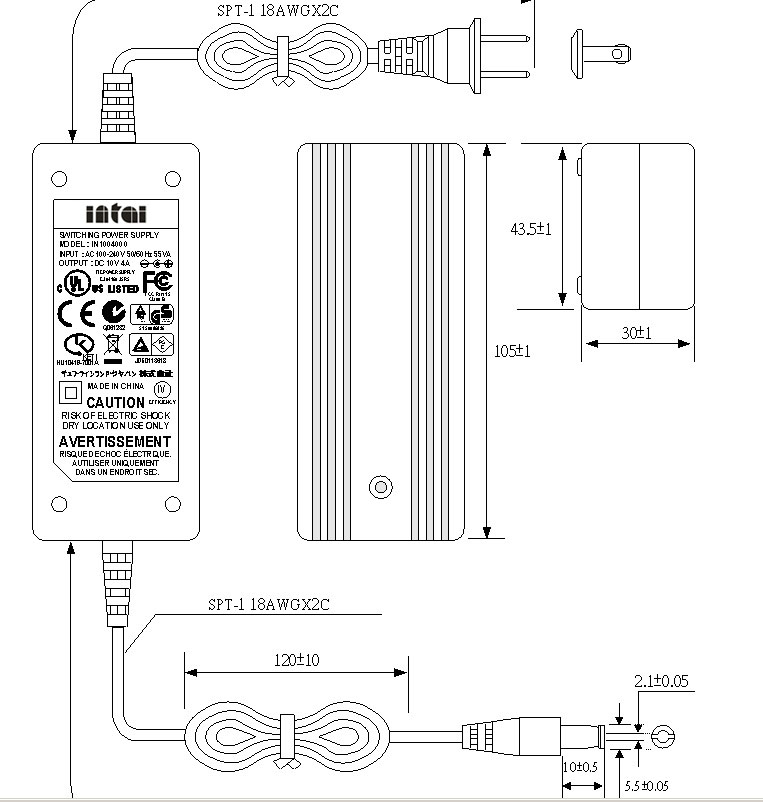

| LED switching power supply 10V4A with PFC |
| Item No.: IN1004000 |
|
|
| Features/ Functions |
- LED switching power supply regulated output with low ripple
- Power-on LED indicator
- Constant output current
- With power factor control PFC
- Comply with ENERGY STAR requirements
- Certifications: UL, CUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick, RoHS
|
|
 |
|
|
| General Specifications |
|
Input :100-240VAC, 50/60Hz
Output voltage : 5 ～10VDC
Output current : 4A +/-5%
Ripple : 250 mVp-p Max.
Inrush current : Limited 15A for a cold start
No load standby power ≤0.5W
Efficiency: 85% the Min.
Power factor: 0.9
Operating temperature: -29℃～+45.5℃
Storage temperature: -40℃～+75℃
Operating relative humidity: 5%～95% RH
Over load protection: Auto recovery
Short circuit protection: Auto recovery
MTBF: 30000 hours full rated load at 25℃
Warranty: 3 year
|
|
|
 |
|
 |
|
