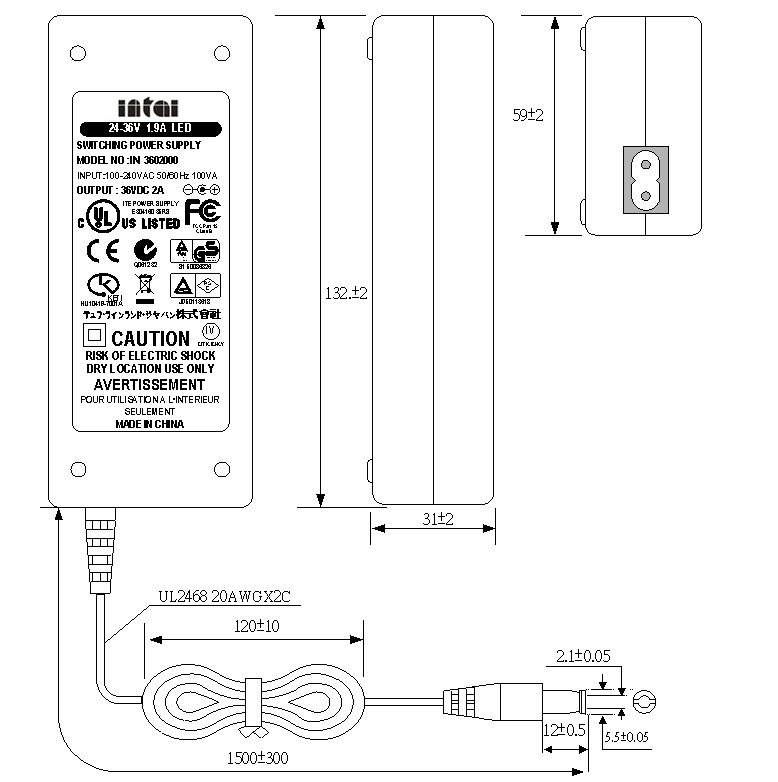

LED light power supply 36V 2A
Item No.: IN3602000
  Features/ Functions
  • LED power supply for LED light 36V
  • Constant output current
  • Power on LED indicator
  • Certifications: UL, CUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick, RoHS
    •
      General Specifications
  • Input :100-240VAC, 50/60Hz
  • Output voltage : 18 ～ 36VDC
  • Output current : 2A +/-5%
  • Ripple : 360 mVp-p Max.
  • Inrush current : Limited 15A for a cold start
  • No load standby power ≤0.5W
  • Efficiency: 85% the Min.
  • Dlelectric withstand test: 5mA3000VAC
  • Operating temperature: -29℃ ～+45.5℃
  • Storage temperature: -40℃ ～+75℃
  • Operating relative humidity: 5%～95% RH
  • Over load protection: Auto recovery
  • Short circuit protection: Auto recovery
  • MTBF: 30000 hours full rated load operation at 25℃
  • Warranty: 3 year
