24V ac power adapter for humidifier
Item No.: IN2401000
  Features/ Functions



  • 24V ac power adapter regulated output with low ripple
  • With a power-on LED indicator
  • Certifications: GS, CE, CB, RoHS
  •
      General Specifications
  • Input :100-240VAC, 50/60Hz
  • Output voltage : 24 VDC +/-5%
  • Output current : 1A
  • Ripple : 300 mVp-p Max.
  • Inrush current : Limited 15A for a cold start
  • No load standby power ≤0.5W
  • Efficiency:  80% Min.
  • Operating temperature: -29℃~+45.5℃
  • Storage temperature: -40℃~+75℃
  • Operating relative humidity: 5%~95% RH
  • Over load protection: Auto recovery
  • Short circuit protection: Auto recovery
  • MTBF: 30000 hours full rated load operation at 25℃

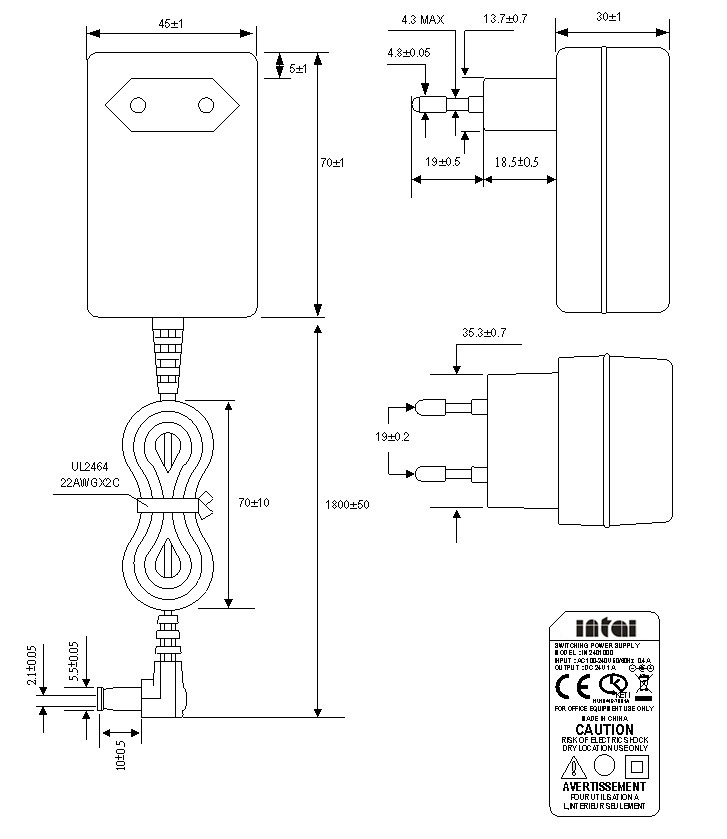

  • Case dimension: 70 x 45 x 31 mm
  • Warranty: 3 year
