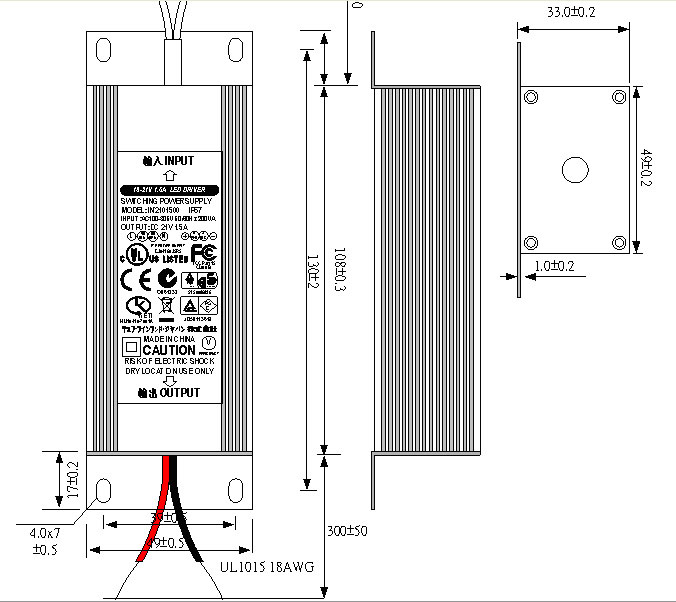

IP67 waterproof LED power supply
Item No.: IN2101500
  Features/ Functions
  • Regulated output with low ripple
  • Aluminum housing
  • Water proof IP67
  • Delivers constant current
  • Certifications: UL, CUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick, RoHS
  •
      General Specifications
  • Input :100-240VAC, 50/60Hz
  • Output voltage : 18~21 VDC +/-5%
  • Output current : 1.5A +/-5%
  • Ripple : 400 mVp-p Max.
  • Inrush current : Limited 15A for a cold start
  • No load standby power ≤0.5W
  • Power factor: > 0.9
  • Efficiency: 85 % Min.
  • Operating temperature: -29℃~+45.5℃
  • Storage temperature: -40℃~+75℃
  • Operating relative humidity: 5%~95% RH
  • Over load protection: Auto recovery
  • Short circuit protection: Auto recovery
  • MTBF: 30000 hours full rated load operation at 25℃
  • Warranty : 3 year
