| 3 series cell MCU AAA battery charger 4.2V 0.3A |
| Item No.: IN0420300 |
|
|
| Features/ Functions |
|
Ni-mh battery charger 3 series cell aaa battery
MCU controls the whole charge process and guarantees the battery pack is fully charged, and also avoids battery pack over charge.
Automatic detection of shorted/ bad battery
LED indicate the charge status
Safety standard approvals: UL, CUL, PSE, FCC
|
|
 |
|
|
| General Specifications |
- Input :100-240VAC, 50/60Hz
- Output voltage : 2.4~4.5VDC
- Output current : 300 mA+/-100mA
- Inrush current : Limited 15A for a cold start
- No load standby power ≤0.5W
- Efficiency: 70% Min.
- Operating temperature: -29℃～+45.5℃
- Storage temperature: -40℃～+75℃
- Operating relative humidity: 5%～95% RH
- Over load protection: Auto recovery
- Short circuit protection: Auto recovery
- MTBF: 30000 hours full rated load operation at 25℃

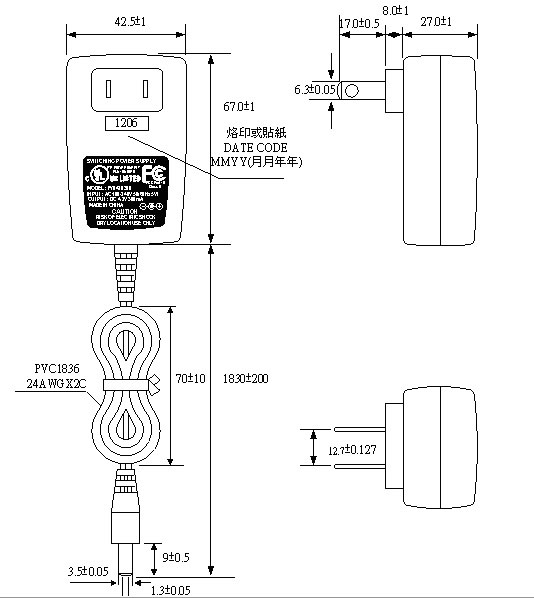

- Case dimension: 67.5X42.5X27.5mm
- AQL: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5
- Warranty: 3 year
|
|
|
 |
|
 |
|
