| Power Supply for Portable beauty machine |
| Item No.: IN2550300 |
|
|
| Features/ Functions |
|
Power supply regulated output with low ripple
Power-on LED indicator
with EuP approval
Certifications: GS, CE, BS, CB, EMC, RoHS
|
|
 |
|
|
| General Specifications |
- Input :100-240VAC, 50/60Hz
- Output voltage : 25.5 VDC +/-5%
- Output current : 0.3A
- Ripple : 300 mVp-p Max.
- Inrush current : Limited 15A for a cold start
- No load standby power ≤0.5W
- Efficiency: 80 % Min.
- Operating temperature: -29℃～+45.5℃
- Storage temperature: -40℃～+75℃
- Operating relative humidity: 5%～95% RH
- Over load protection: Auto recovery
- Short circuit protection: Auto recovery
- MTBF: 30000 hours full rated load operation at 25℃

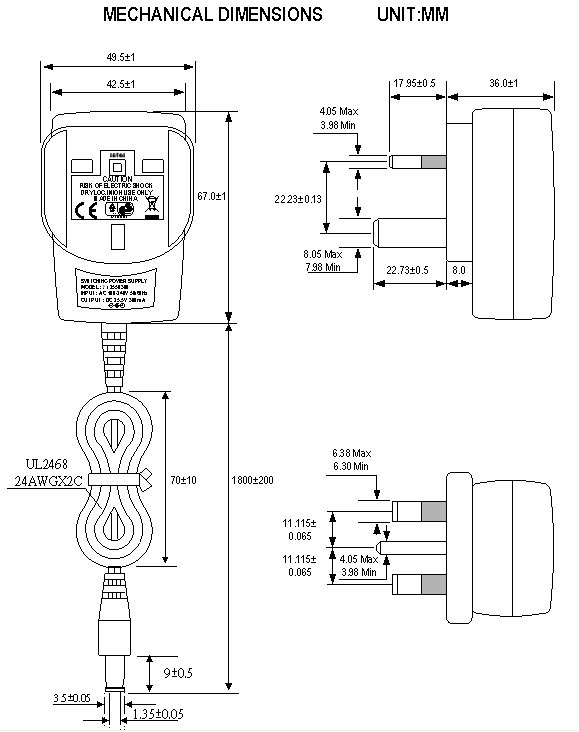

- Case dimension: 67.5X42.5X27.5mm
- AQL: MIL-STD-105D II CRI 0; MAJ 0.25; MIN 2.5
- Appliaction:Portable Sonic Facial & Body Brush
|
|
|
 |
|
 |
|
