| 12V 7AH Lead acid battery charger UL |
| Item No.: IN1501000 |
|
|
| Features/ Functions |
|
For 12V 7AH Lead acid battery
Constant charging current
Terminating charge once battery is full
With a dual color LED charging status indicator
Safety standard approvals: UL, CUL, PSE, CB, FCC
|
|
 |
|
|
| General Specifications |
|
With a dual color LED charging status indicator
Input :100-240VAC, 50/60Hz
Output voltage : 9～14.6VDC
Output current : 1000 mA +/-100mA
Inrush current : Limited 15A for a cold start
No load standby power ≤0.5W
Efficiency: 78% Min.
Operating temperature: -29℃～+45.5℃
Storage temperature: -40℃～+75℃
Operating relative humidity: 5%～95% RH
Over load protection: Auto recovery
Short circuit protection: Auto recovery
MTBF: 30000 hours full rated load at 25℃

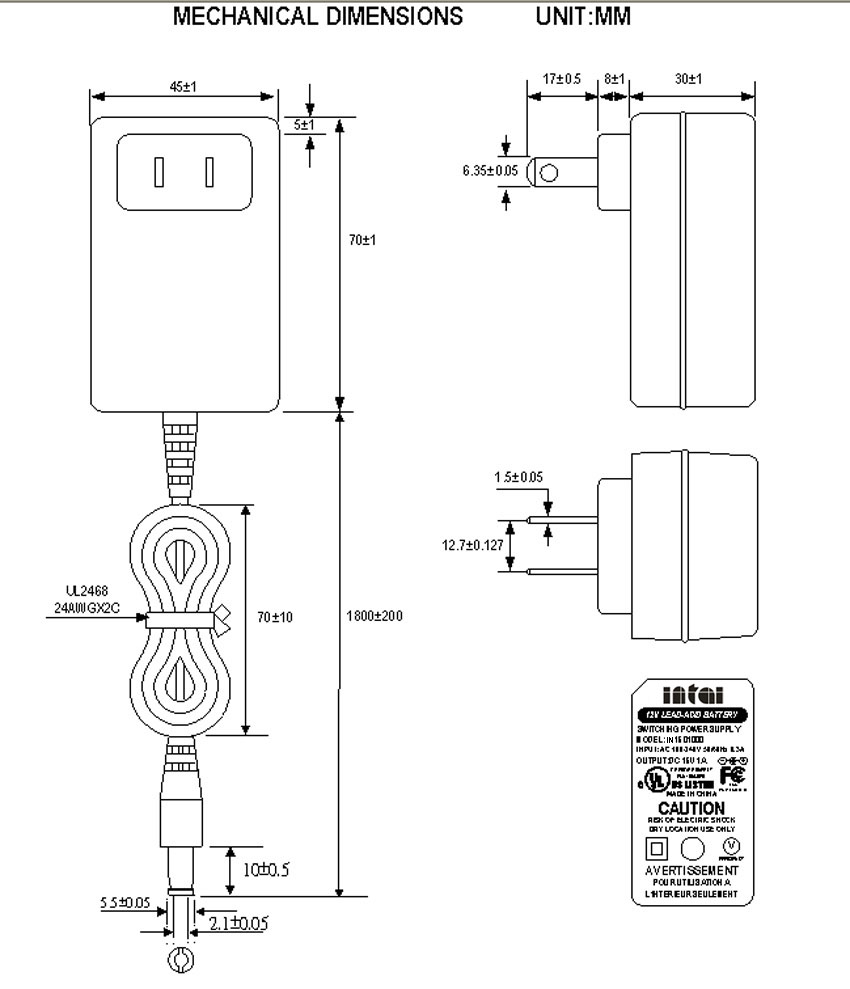

Case dimension: 70 x 45 x 31 mm
Inspection: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; NIN 2.5
Warranty: 3 year |
|
|
|
 |
|
 |
|
