| Switching power adapter 5V1.5A CE |
| Item No.: IN0501500 |
|
|
| Features/ Functions |
|
Regulated output with low ripple
With a power-on LED indicator
Comply with ErP regulations
Certifications: GS, CE, CB, EMC, RoHS
|
|
 |
|
|
| General Specifications |
- Input :100-240VAC, 50/60Hz
- Output voltage : 5 VDC
- Output current : 1.5A +/-5%
- Ripple : 150 mVp-p Max.
- Inrush current : Limited 15A for a cold start
- No load standby power ≤0.5W
- Efficiency: 80 % Min.
- Operating temperature: -29℃～+45.5℃
- Storage temperature: -40℃～+75℃
- Operating relative humidity: 5%～95% RH
- Over load protection: Auto recovery
- Short circuit protection: Auto recovery
- MTBF: 30000 hours full rated load operation at 25℃

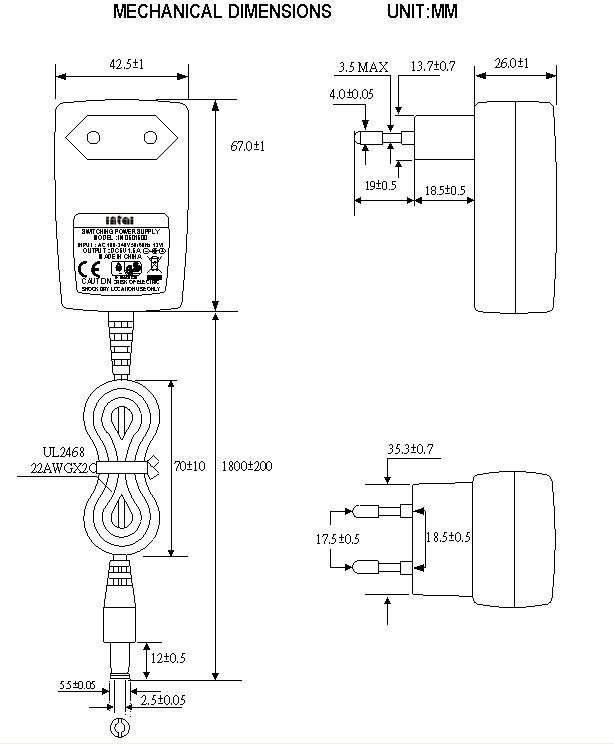

- Case dimension: 67.5X42.5X27.5mm
- AQL: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5
- Warrenty: 3 year
|
|
|
 |
|
 |
|
