| Smart battery charger for 12V Lead acid battery |
| Item No.: IN1502000 |
|
|
| Features/ Functions |
|
Smart battery charger
Sensing and following battery voltage
Constant current and voltage (CC,CV mode)
Stopping charging once batteries become full
2 color LED indicates the charge status
Safety standard approvals: UL, CUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick
|
|
 |
|
|
| General Specifications |
- Input :100-240VAC, 50/60Hz
- Output voltage : 9.6 ～ 15.2 VDC
- Output current : 2A +/-5%
- Inrush current : Limited 15A for a cold start
- No load standby power ≤0.5W
- Efficiency: 85% Min.
- Operating temperature: -29℃ ～+45.5℃
- Storage temperature: -40℃ ～+75℃
- Operating relative humidity: 5%～95% RH
- Over load protection: Auto recovery
- Short circuit protection: Auto recovery
- MTBF: 30000 hours full rated load operation at 25℃

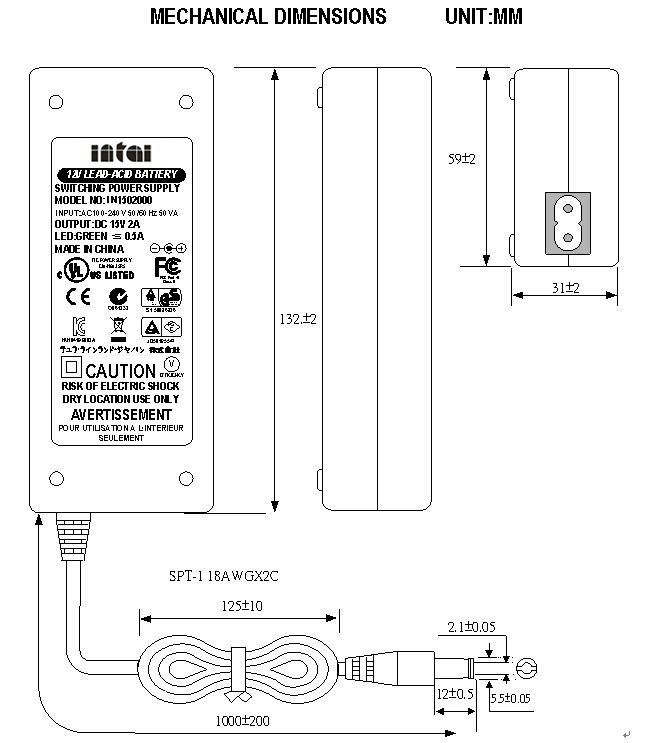

- Case dimensions: 132X59X31mm
- Inspection: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5
- Warrenty: 3 year
|
|
|
 |
|
 |
|
