Intelligent Li-ion battery charger 3.7V UL
Item No.: IN0420500
  Features/ Functions
  • Intelligent 3-step li-ion battery charger 3.7V
  • Continuously monitoring the battery voltage
  • Constant charging current
  • Terminating the charge once battery pack is full
  • LED indicate the charge status
  • Standard approvals: UL cUL PSE CCC FCC
  • High reliability
    •
      General Specifications
  • Input :100-240VAC, 50/60Hz
  • Output voltage : 2.8 ～4.25 VDC
  • Output current : 0.5A +/-5%
  • No load standby power ≤0.5W
  • Efficiency: 80% Min.
  • Operating temperature: -29℃～+45.5℃
  • Storage temperature: -40℃～+75℃
  • Operating relative humidity: 5%～95% RH
  • Over load protection: Auto recovery
  • Short circuit protection: Auto recovery
  • MTBF: 30000 hours full rated load operation at 25℃

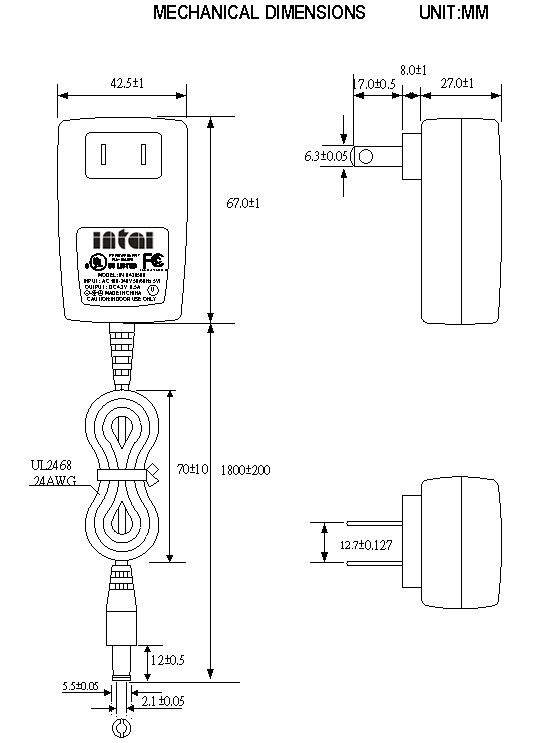

  • Case dimension: 67.5X42.5X27.5mm
  • Inspection: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5
  • Warranty: 3 year
