Battery charger CE 8.4V2A Li-ion 2 series cell |
Item No.: IN8502000 |
|
|
Features/ Functions |
Smart 3-step li-ion battery charger 8.4V
Constant charging current
Terminating charge once battery pack is full
Dual color LED indicating charging status
Standard approvals: GS, CE, EMC, RoHS
High reliability
|
|
 |
|
|
General Specifications |
Input :100-240VAC, 50/60Hz
Charging voltage : 5 ~8.5VDC
Charging current : 2 +/-5%
No load standby power ≤0.5W
Efficiency: 65% Min.
Operating temperature: -29℃~+45.5℃
Storage temperature: -40℃~+75℃
Operating relative humidity: 5%~95% RH
Over load protection: Auto recovery
Short circuit protection: Auto recovery
MTBF: 30000 hours full rated load operation at 35℃

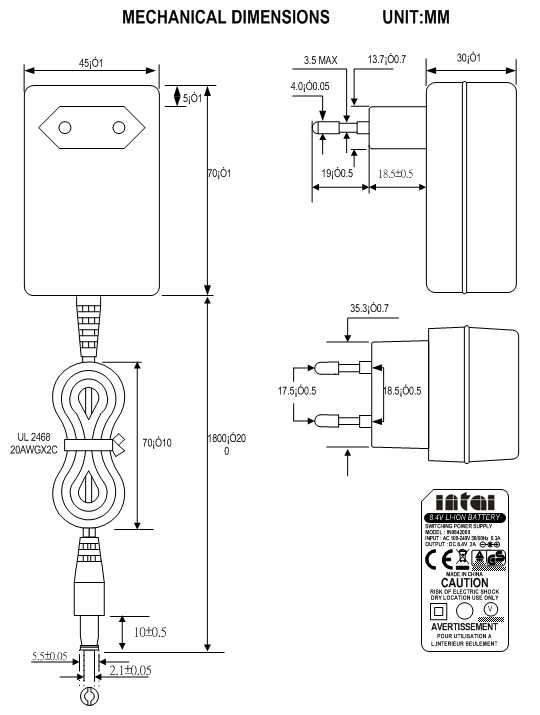

Case dimension: 70 *30 *45mm
Inspection: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5
Warranty: 3 year
|
|
|

 |
|
 |
|
