6S cell Lithium-ion battery charger 25.2V 3A |
Item No.: IN2553000 |
|
|
Features/ Functions |
6S cell 25.2V lithium-ion battery charger
Constant charge current
Terminate charge once battery is full
LED indicate the charge status
Safety standard approvals: UL, CUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick
|
|
 |
|
|
General Specifications |
Input :100-240VAC, 50/60Hz
Output voltage : 15 ~25.5VDC
Output current : 3A +/-300mA
Inrush current : Limited 15A for a cold start
No load standby power ≤0.5W
Efficiency: 88% Min.
Operating temperature: -29℃~+45.5℃
Storage temperature: -40℃~+75℃
Operating relative humidity: 5%~95% RH
Over load protection: Auto recovery
Short circuit protection: Auto recovery
MTBF: 30000 hours full rated load operation at 25℃

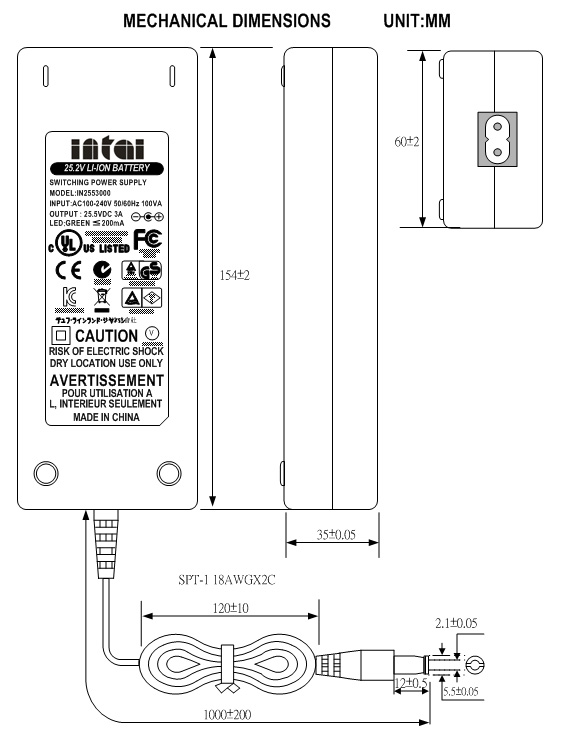

Case dimension: 154X60X35mm
Inspection: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5
Warranty: 3 year
|
|
|

 |
|
 |
|
