Hot sale 58.8V 1A Li-ion battery charger |
Item No.: IN5801000 |
|
|
Features/ Functions |
3 stage battery charger for 14 series cell rechargeable li-ion battery pack
Constant output current / voltage
Terminate charge once batteries are full
LED indicate the charge status
Safety standard approvals: UL, CUL, GS, CE, BS, RCM, EK, PSE, CB, FCC, EMC, C-tick
|
|
 |
|
|
General Specifications |
Input :100-240VAC, 50/60Hz
Output voltage : 35 ~58.8VDC
Output current : 1A +/-200mA
Inrush current : Limited 15A for a cold start
No load standby power ≤0.5W
Efficiency: 85% Min.
Operating temperature: -29℃~+45.5℃
Storage temperature: -40℃~+75℃
Operating relative humidity: 5%~95% RH
Over load protection: Auto recovery
Short circuit protection: Auto recovery
MTBF: 30000 hours full rated load operation at 35℃

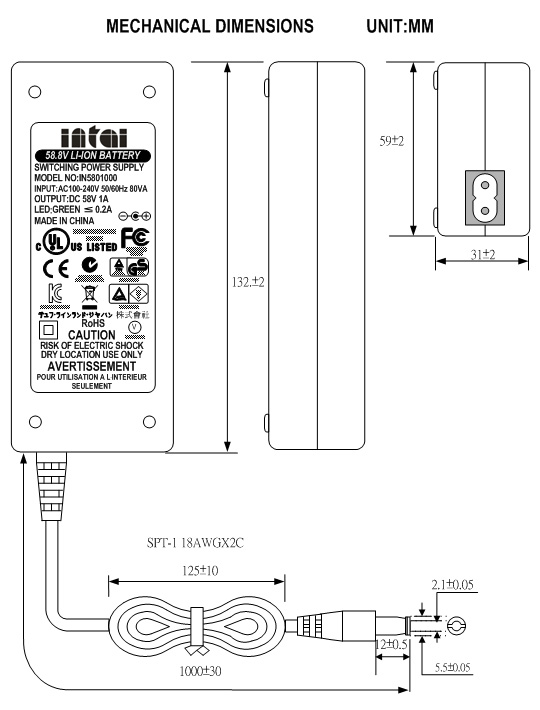

Case dimension: 132X59X31mm
Inspection: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5
|
|
|

 |
|
 |
|
