Automatic 54.6V 0.3A Li-ion battery charger GS
Item No.: IN5500300
  Features/ Functions
  • Cute battery charger for 13S cell lithium ion battery pack
  • Constant charge current / voltage
  • Terminate charge when battery is fully charged
  • LED indicate the charge status
  • Safety standard approvals: GS, CE, EMC
  •
      General Specifications
  • Input :100-240VAC, 50/60Hz
  • Output voltage : 32.5 ~54.6VDC
  • Output current : 0.3A +/-5%
  • Inrush current : Limited 15A for a cold start
  • No load standby power ≤0.5W
  • Efficiency: 80% Min.
  • Operating temperature: -29℃~+45.5℃
  • Storage temperature: -40℃~+75℃
  • Operating relative humidity: 5%~95% RH
  • Over load protection: Auto recovery
  • Short circuit protection: Auto recovery
  • MTBF: 30000 hours full rated load operation at 25℃

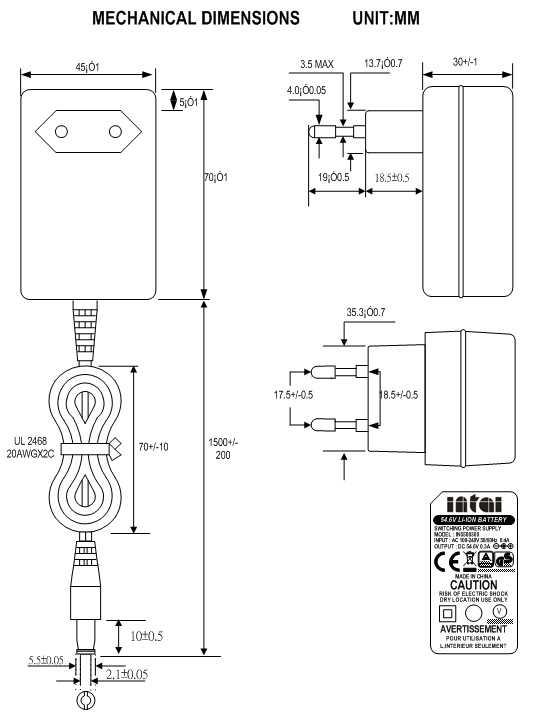

  • Case dimension: 154X60X35mm
  • Inspection: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5
  • Warranty: 3 year
