The IN2902000 is designed to charge 7S cell 24V Li-ion battery pack. This charger is easy and safe to use. It features pre-charging, bad/wrong battery indentification and alarm, backfeed protection(BFP), anit reverse polarity connection, eliminating sparks by soft start. It has been certified for the safety standards including UL1310 Class 2 Battery Charger, EN60335-1/2-29 and AS NZS60335-1/2-29 Household and similar electrical appliances - Particular requirements for battery chargers.
General Specifications
Input :100-240VAC, 50/60Hz
Output voltage : 17.5 ～29.4 VDC
Output current : 2A +/-200mA
Inrush current : Limited 15A for a cold start
No load standby power ≤0.5W
Efficiency: 85% Min.
Operating temperature: -10℃～+45.5℃
Storage temperature: -40℃～+75℃
Operating relative humidity: 5%～95% RH
Over load protection: Auto recovery
Short circuit protection: Auto recovery
MTBF: 30000 hours full rated load operation at 25℃

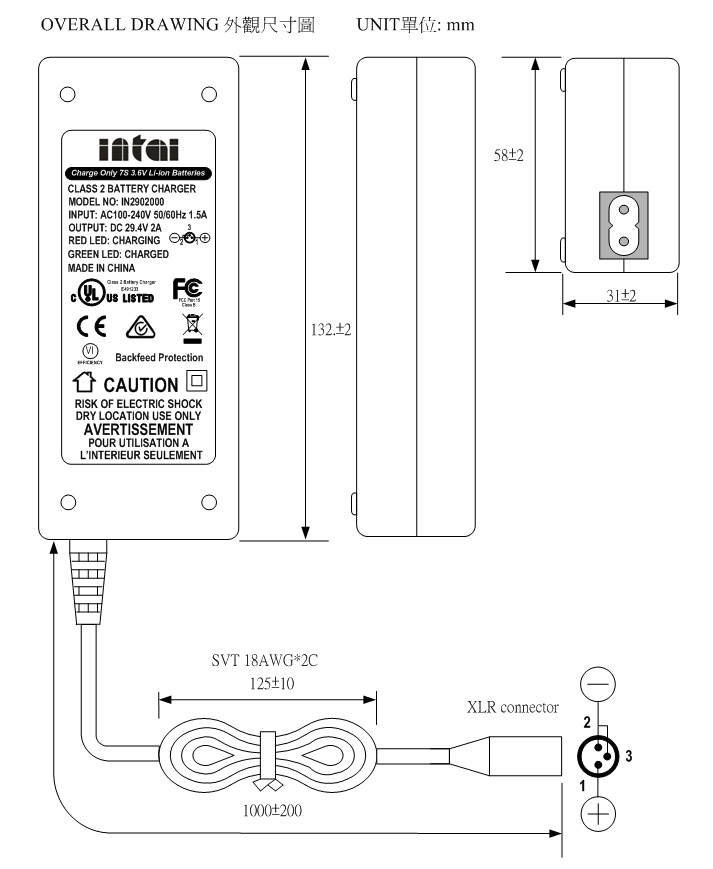

Case dimension: 132X58X31mm
Warranty: 3 year
