36V segway electric scooter battery charger
Item No.: IN4252000
  Features/ Functions

The IN4252000 is designed to charge 10S cell Li-ion battery pack for hoverbaord segway.  This charger is easy and safe to use. It features pre-charging, bad/wrong battery indentification and alarm, backfeed protection(BFP), anit reverse polarity connection, eliminating sparks by soft start.  It has been certified for the safety standards including UL1310 Class 2 Battery Charger, EN60335-1/ 2-29 and AS NZS60335-1/ 2-29 Household and similar electrical appliances - Particular requirements for battery chargers.


  General Specifications
  • Input :100-240VAC, 50/60Hz
  • Output voltage : 25 ~42.5VDC
  • Output current : 2A +/-200mA
  • Inrush current : Limited 15A for a cold start
  • No load standby power ≤0.21W
  • Efficiency: 88% Min.
  • Operating temperature: -29℃~+45.5℃
  • Storage temperature: -40℃~+75℃
  • Operating relative humidity: 5%~95% RH
  • Over load protection: Auto recovery
  • Short circuit protection: Auto recovery
  • MTBF: 30000 hours full rated load operation at 25℃

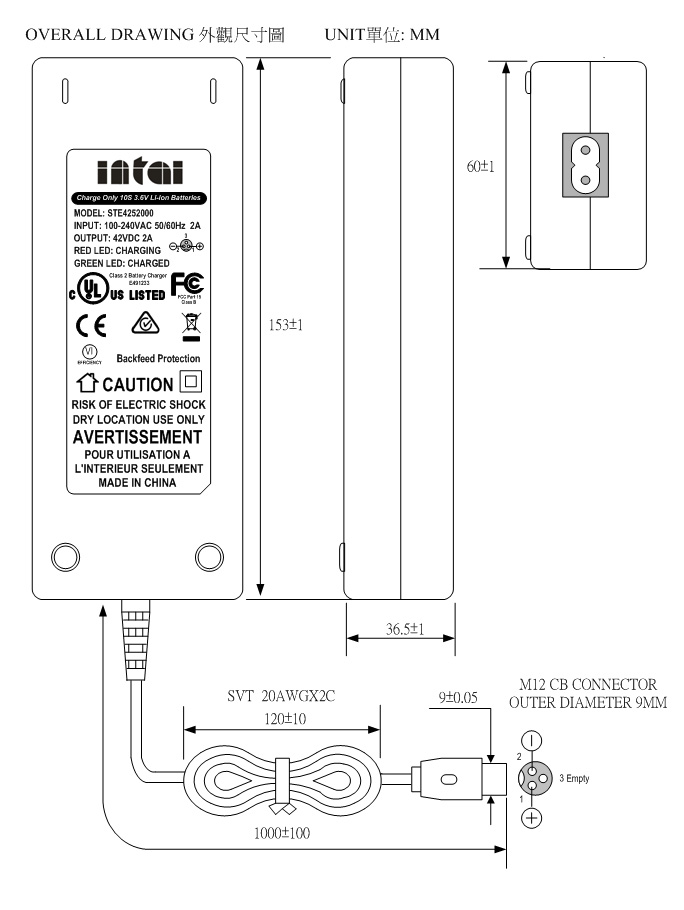

  • Case dimension: 154X60X35mm
  • Warranty: 3 year
