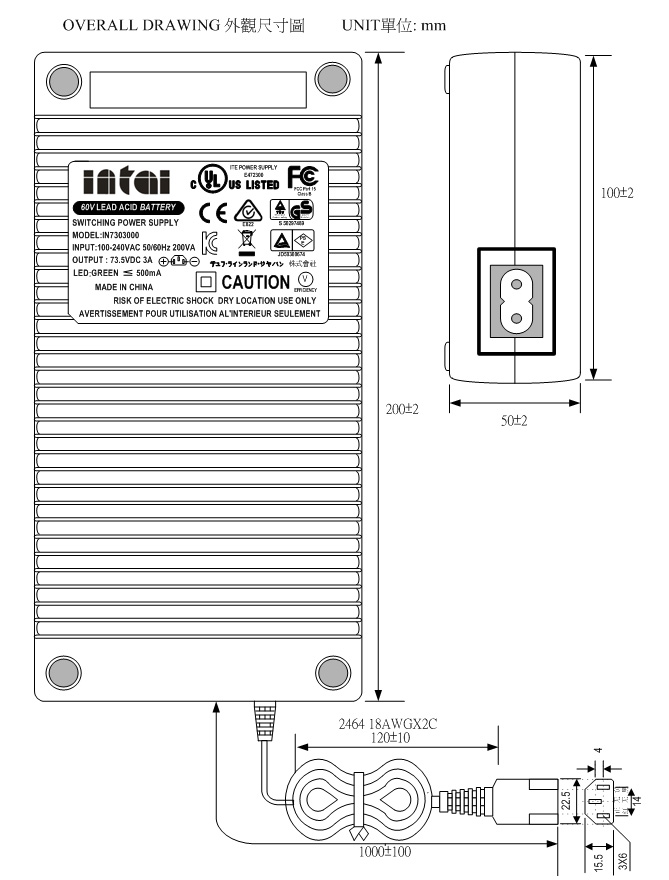

| 60 volt 3A Battery Charger for Electric Wheelchair |
| Item No.: IN7303000 |
|
|
| Features/ Functions |
|
3-stage charging mode: CC(constant current), CV(constant voltage) and float stage
Stop charging when the battery is full
2 color LED indicating charging status
Safety standard approvals: UL, CUL, CE, PSE, CB, FCC
Warranty: 3 year
|
|
 |
|
|
| General Specifications |
|
Input :100-240VAC, 50/60Hz
Output voltage : 9 ～14.6VDC
Output current : 10A +/-5%
Inrush current : Limited 15A for a cold start
No load standby power ≤0.5W
Efficiency: 80% Min.
Power factor correction: 0.92 Min.
Operating temperature: -29℃ ～+45.5℃
Storage temperature: -40℃ ～+75℃
Operating relative humidity: 5%～95% RH
Over load protection: Auto recovery
Short circuit protection: Auto recovery
MTBF: 30000 hours full rated load operation at 25℃
Inspection: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5
350W Battery Charger Datasheet:
|
Item No. |
spec |
Charging voltage Max. |
Constant current |
|
Lead-acid |
Li-Mn |
Lifepo4 |
Max (A) |
|
IN1509900 |
12V |
14.7V |
16.8V |
14.6V |
10 |
|
IN2909900 |
24V |
29.4V |
29.4V |
29.2V |
10 |
|
IN4208000 |
36V |
44.1V |
42.0V |
43.8V |
8 |
|
IN5806000 |
48V |
58.8V |
54.6V |
58.4V |
6 |
|
IN7304500 |
60V |
73.5V |
75.6V |
73.0V |
4.5 |
|
IN8804000 |
72V |
88.2V |
84.0V |
87.6V |
4 |
|
|
|
 |
|
 |
|
