UL1310 certified 29.4V2A lead acid battery charger
Item No.: IN2902000
  Features/ Functions
The IN2902000 is a Lead acid battery charger for 2S cell 24V Lead acid battery pack.  The battery charger is easy and safe to use. It features pre-charging, bad/wrong battery indentification and alarm, backfeed protection(BFP), anit reverse polarity connection, eliminating sparks by soft start.  It has been certified for the safety standards including UL1310 Class 2 Battery Charger, EN60335-1/2-29 and AS NZS60335-1/2-29 Household and similar electrical appliances - Particular requirements for battery chargers.

  General Specifications
  • Input :100-240VAC, 50/60Hz
  • Output voltage : 16 ~30 VDC
  • Output current : 2A +/-200mA
  • Inrush current : Limited 15A for a cold start
  • No load standby power ≤0.5W
  • Efficiency: 85% Min.
  • Operating temperature: -10℃~+45.5℃
  • Storage temperature: -40℃~+75℃
  • Operating relative humidity: 5%~95% RH
  • MTBF: 30000 hours full rated load operation at 25℃

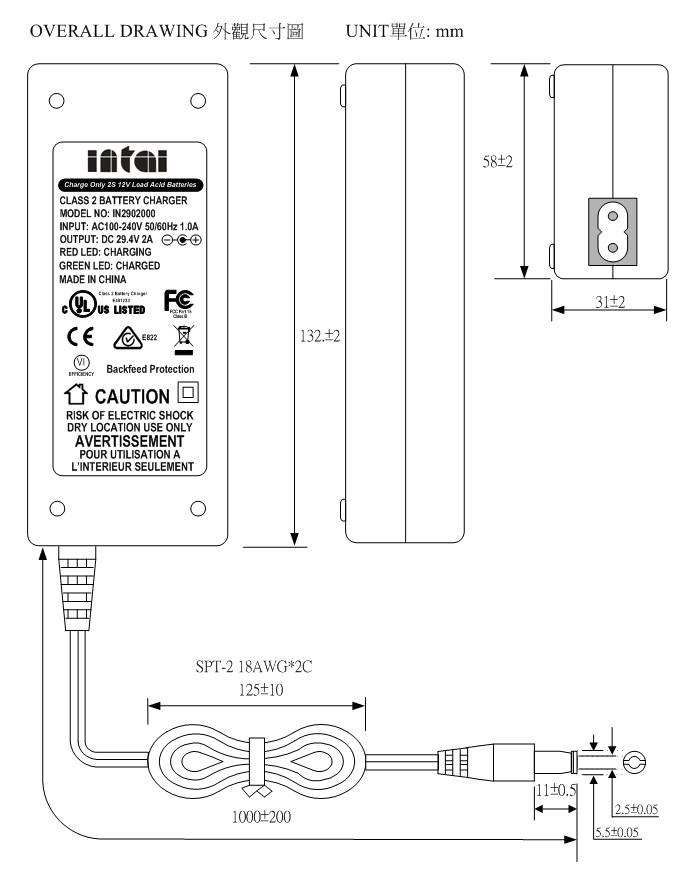

  • Case dimension: 132X58X31mm
  • Warranty: 3 year
