Wheelchair battery charger 29.4V2A ISO7176-25 |
Item No.: IN2902000 |
|
|
Features/ Functions |
The battery charger IN2902000 is designed to charge 7S cell Li-ion battery pack for electrically powered wheelchair. This charger is easy and safe to use. It features pre-charging, bad/wrong battery indentification and alarm, backfeed protection(BFP), anit reverse polarity connection, eliminating sparks by soft start. It has been certified for the safety standards including UL1310 Class 2 Battery Charger, EN60335-1/ 2-29 and AS/NZS60335-1/ 2-29 Household and similar electrical appliances - Particular requirements for battery chargers. It is equipped with a separate power-on indicator and a 12 hours built-in timer to meet the requirements of ISO7176-25.
|
|
 |
|
|
General Specifications |
Input :100-240VAC, 50/60Hz
Output voltage : 17.5 ~29.4 VDC
Output current : 2A +/-200mA
Inrush current : Limited 15A for a cold start
No load standby power ≤0.5W
Efficiency: 85% Min.
Operating temperature: -10℃~+45.5℃
Storage temperature: -40℃~+75℃
Operating relative humidity: 5%~95% RH
Over load protection: Auto recovery
Short circuit protection: Auto recovery
MTBF: 30000 hours full rated load operation at 25℃

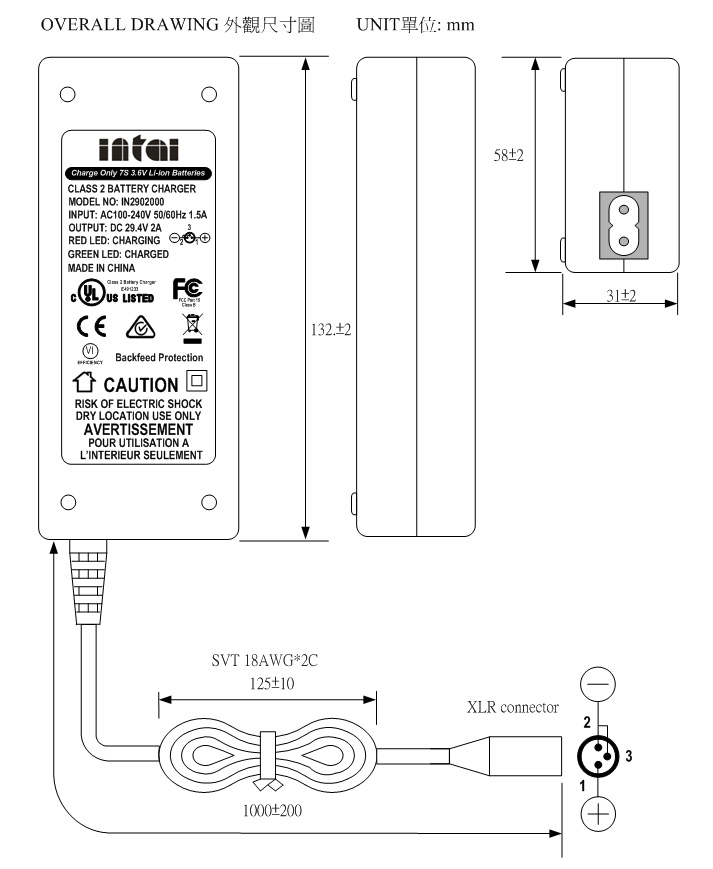

Case dimension: 132X58X31mm
Warranty: 3 year
|
|
|

 |
|
 |
|
