Charger for Lead acid powered wheelchair 58.8V2.2A
Item No.: IN5802200
Features/ Functions
Switch mode charger with universal input voltage
For 4S Lead acid battery powered wheelchair
Microcontroller based with pre-charging and wrong/bad battery identification
Automatic cut-off when battery attains full charge
Backfeed protection(BFP)
Protected against reverse polarity and short circuit
With a 12 hours built-in timer
Ingress Protection IPX2
UL1012 Battery charger approved
Meet DOE regulations efficiency Level VI
General Specifications
Input :100-240VAC, 50/60Hz
Output voltage : 40 ~58.8VDC
Open circuit voltage: 54.8V+/-0.8V
Output current : 2.2A +/-200mA
Inrush current : Limited 30A for a cold start
No load standby power ≤0.5W
Efficiency: 85% Min.
Operating temperature: -10℃~+45.5℃
Storage temperature: -40℃~+75℃
Operating relative humidity: 5%~95% RH
MTBF: 40000 hours full rated load operation at 25℃

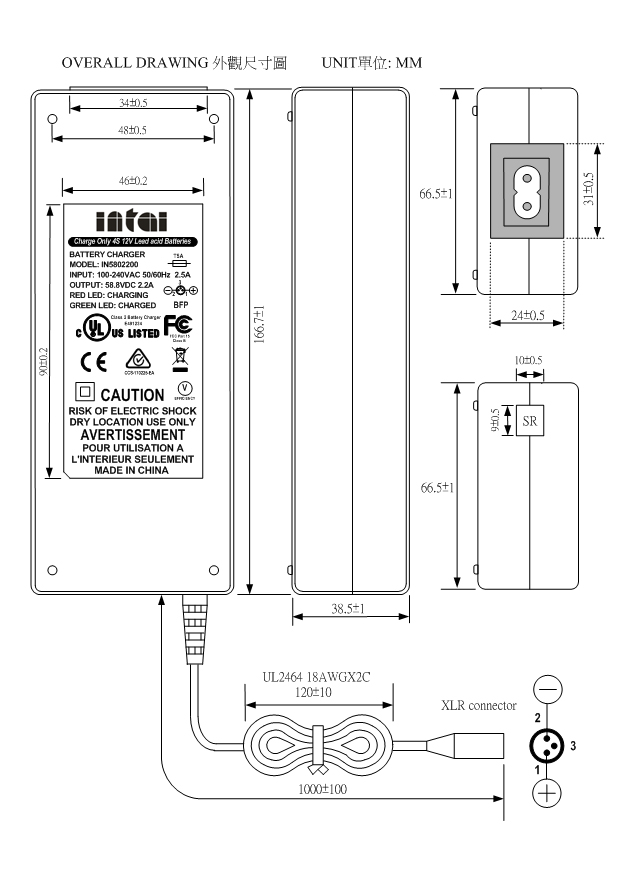

Case dimension: 166X66X38.5mm
Warranty: 3 year
