Constant voltage LED driver 42V0.7A
Item No.: IN4207000
  Features/ Functions
  • Suit for led spot light,down light,track light,AR111 led light,flood light, tube light external or the lamp in the output voltage/current range.
  • Constant output voltage
  • Certifications: UL, CUL, GS, CE, BS, SAA, EK, PSE, CB, FCC, EMC, C-tick, RoHS
  • Warranty: 3 year
  •


      General Specifications
  • Input :100-240VAC, 50/60Hz
  • Output voltage : 42VDC +/-5%
  • Output current : 0.7A
  • Ripple : 380 mVp-p Max.
  • Inrush current : Limited 15A for a cold start
  • No load standby power ≤0.21W
  • Efficiency: 85% the Min.
  • Dlelectric withstand test: 5mA 3000VAC
  • Operating temperature: -29℃ ~+45.5℃
  • Storage temperature: -40℃ ~+75℃
  • Operating relative humidity: 5%~95% RH
  • Over load protection: Auto recovery
  • Short circuit protection: Auto recovery
  • MTBF: 30000 hours full rated load operation at 25℃

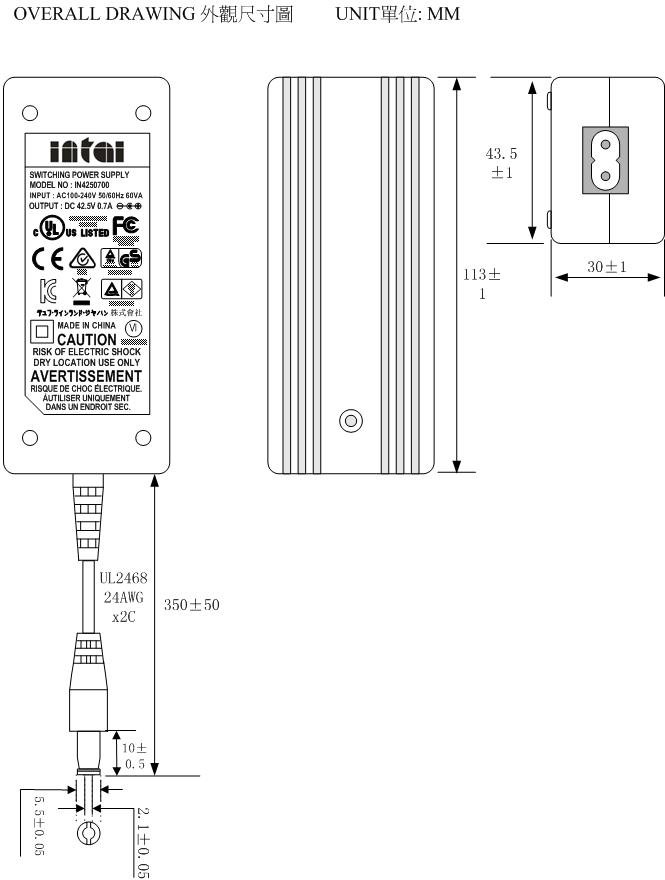

  • Case dimension: 113X43.5X30mm
