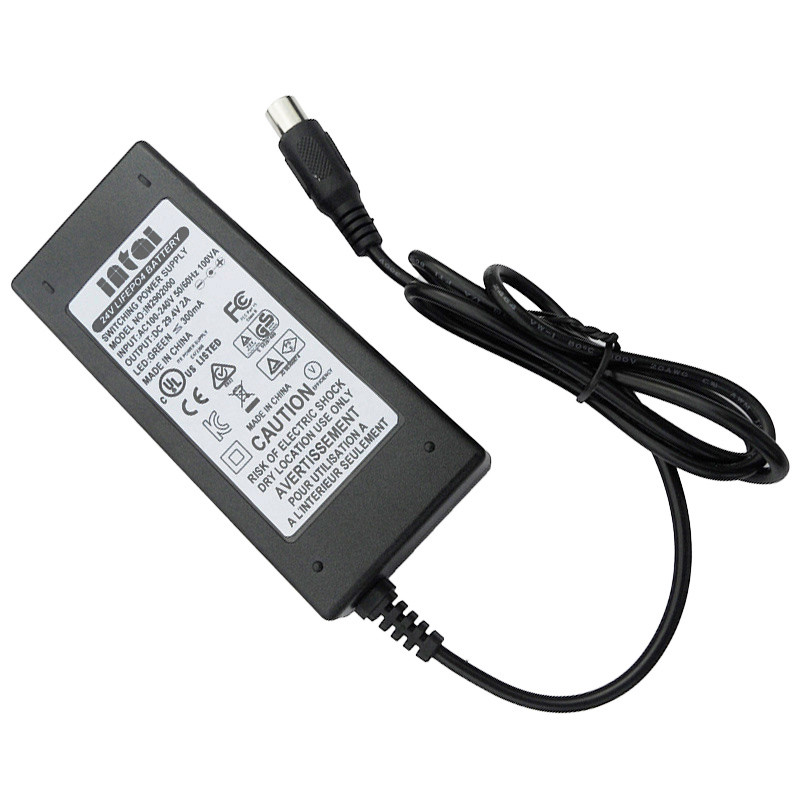

24V LiFePO4 battery charger
Model :IN2902000
Output :29.2V 2A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
The 24V lifepo4 battery charger 2A operates from a universal input 90 to 264Vac and incorporates several safety features including automatic cut off when the cells are fully charged. This 24V smart charger effectively protects against overhearing, fire and electric shock. The 24V 2A 8S battery charger lifepo4 has been tested to meet UL 1310 and EN/RCM 60335-2-29 standards. The lifepo4 8S charger is also compliant to EN 55014-B and FCC Class B for radiated and conducted emissions and the IEC 61000-4 immunity and IEC 61000-3-2 harmonic current standards.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 17-29.2V |
Open Circuit Voltage | 29.2V±5% | |
Charge Current | 2A±5% | |
Battery Type | lithium iron phosphate battery 24V | |
Battery capacity recommended | 8AH~25AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.3kgs |

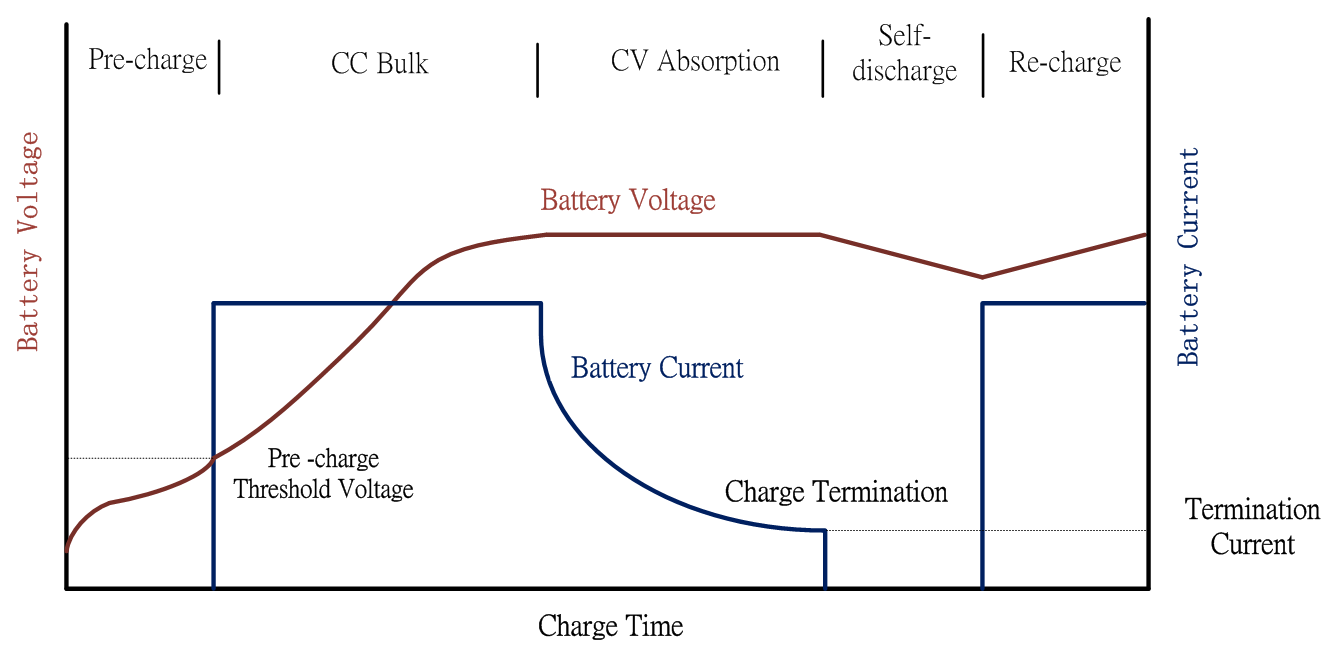

The 24V smart lifepo4 8S charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the 24V lithium ion phosphate battery charger
Red | Charging or disconnect form the batteries |
Green | Batteries fully charged |
Red flash | Reverse connection with the battery Faulty battery Short circuit |
When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).
The 24V lithium ion phosphate battery charger works silently and safely. With the application of soft start technology, the output is spark free.

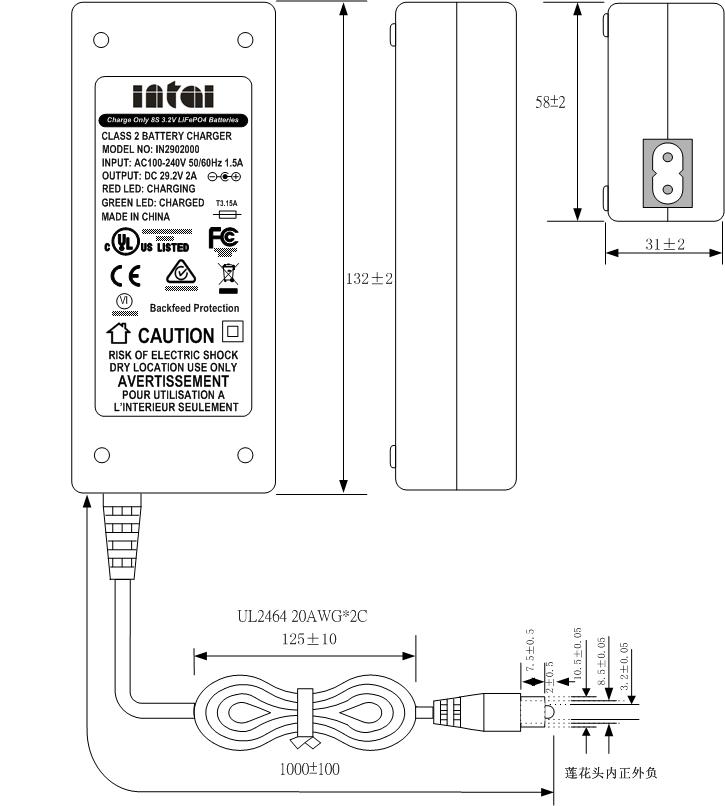

Mechanical Details(mm)
