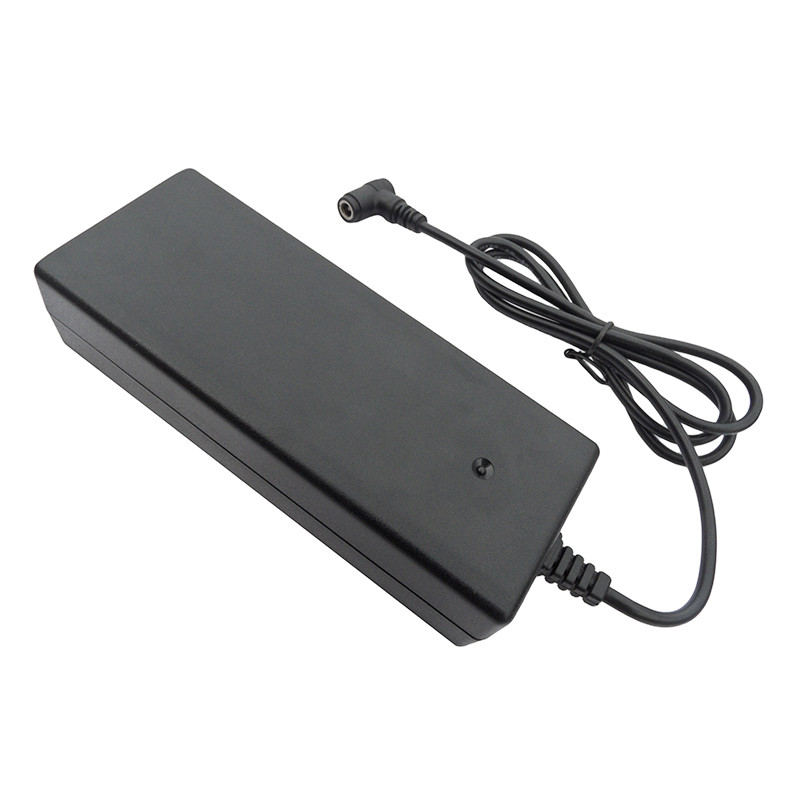

12 Volt sealed lead acid battery charger
Model :IN1504500
Output :14.7V 4.5A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
This smart 12 volt lead acid battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 100-240 V, 50 /60Hz AC source. The battery charger 12V was tested to meet United States safety requirements for 12V Class 2 battery charger. Using lead acid charge algorithm, the Lead acid charger communicates directly with the battery pack to manage charging process. Effective thermal management with fanless design improves the reliability of 12 volt sealed lead acid battery charger, which was designed to ensure a MTBF better than 40000 hours at full load.
Product Specification
| Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
| Boost Charge Voltage | 9~14.7V |
Open Circuit Voltage | 14.7V±5% | |
Charge Current | 4.5A±5% | |
Battery Type | Lead acid sealed rechargeable battery 12V | |
Battery capacity recommended | 8AH~30AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |
The charger for the sealed rechargeable battery 12V is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the battery charger 12v
Red |
|
Green |
|
Red flash |
|

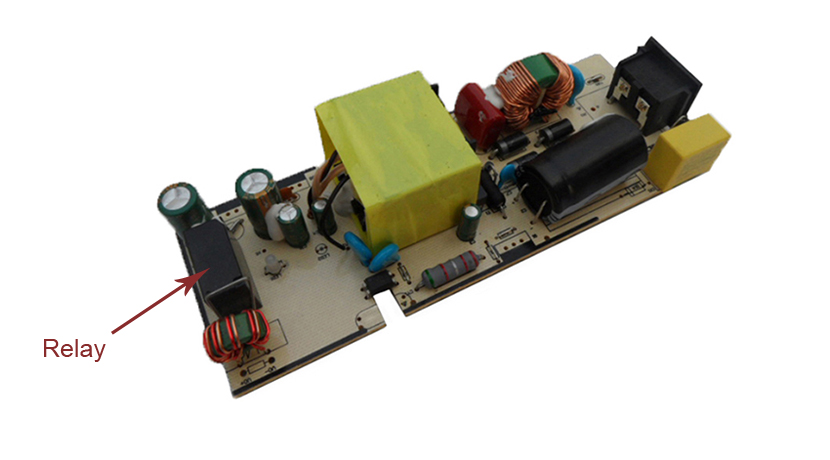

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

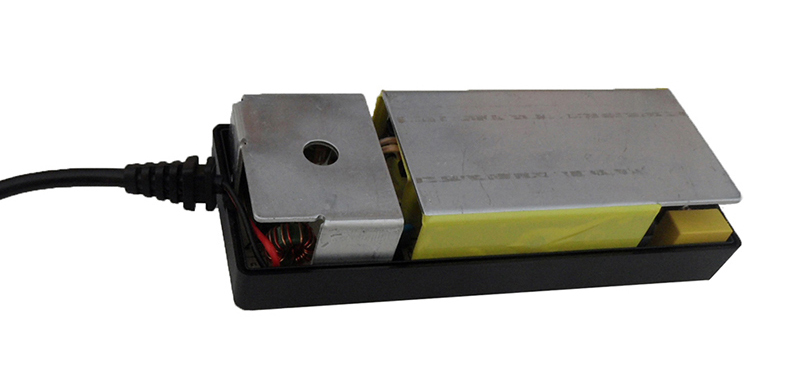

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The 12 volt sealed lead acid battery charger works silently and safely. With the application of soft start technology, the output is spark free.

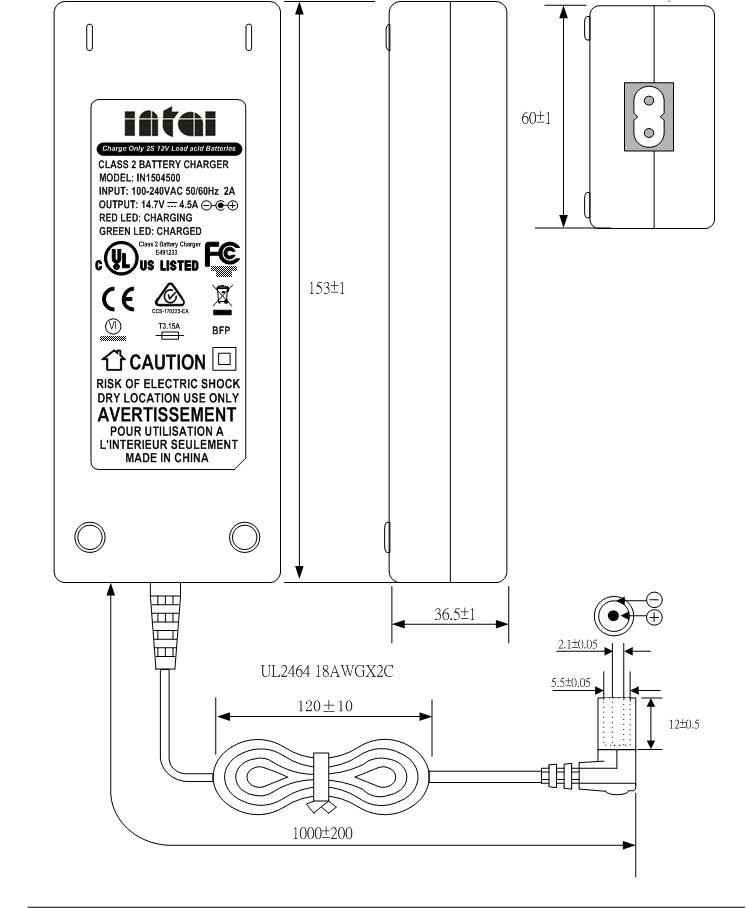

Product dimension(mm)

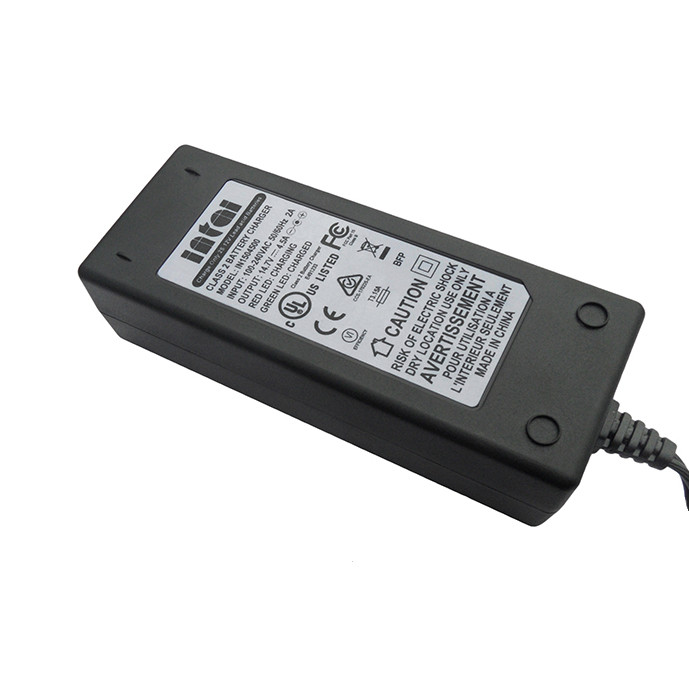

Safety certificates
