12.6V 3A li-ion battery charger

Model :IN1263000

Output :12.6V 3A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

The IN1263000 12.6V 3A li-ion battery charger incorporates a microprocessor-based control circuit that is easily adapted for cell detection and monitoring functions. The 12 volt lithium ion battery charger algorithms enables accurate and safe charging. To maintain the optimum charge on the battery, the control circuit independently adjusts the float voltage and charge current in response to conditions during the process. The 12.6V 3A charger is designed to meet the up-to-date energy saving recommendations (European CoC ver. Tier 2). Intai 12.6V charger also provides excellent EMC performance.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.5W
	Average Efficiency	>85%
	Power Factor (Typ)	>0.6
	Inrush Current	limited to 30A within 10ms at 264VAC ( Cold Start )
Output	Boost Charge Voltage	7-12.6V
	Open Circuit Voltage	12.6V±5%
	Charge Current	3A±5%
	Battery Type	3S cell 12 volt Lithium ion Li-ion battery
	Battery capacity recommended	8AH~20AH
	Line Regulation	±2%
	Load Regulation	±5%
Protection	Back feed Protection(BFP)	Protected by internal circuit
	Reverse Polarity Protection	Protected by internal circuit
	Input Protection	3.15A current fuse
	Short Circuit Protection	Protected by internal circuit
Safety Certifications	UL/cUL1310 Class 2 battery charger	Certificate Number: E491233
	TUV/CE/LVD EN60335-1/2-29	Certificate Number: 50079152 001
	SAA+RCM/AS NZS60335-1/2-29	Certificate Number: CCS-170225-EA
EMC	Emissions	EN55014, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-10℃~40℃
	Storage Temp	-20℃~80℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.3kgs

The 12.6V 3A li-ion charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.


Charge Status Indicator of The 12.6V 3A Li-ion Battery Charger

Red

● Charging or disconnect form the batteries

Green

● Batteries fully charged

Red flash

● Reverse connection with the battery

● Faulty battery

● Short circuit

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).


The 12 volt lithium ion battery charger works silently and safely. With the application of soft start technology, the output is spark free.

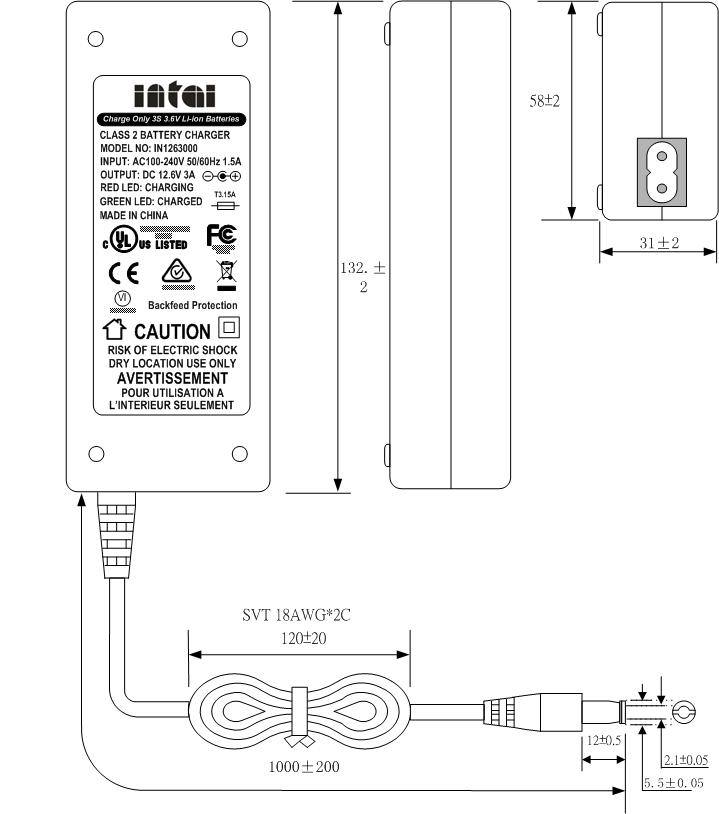

Mechanical Details(mm)

16.8v3a DC.jpg

Safety Certificates
