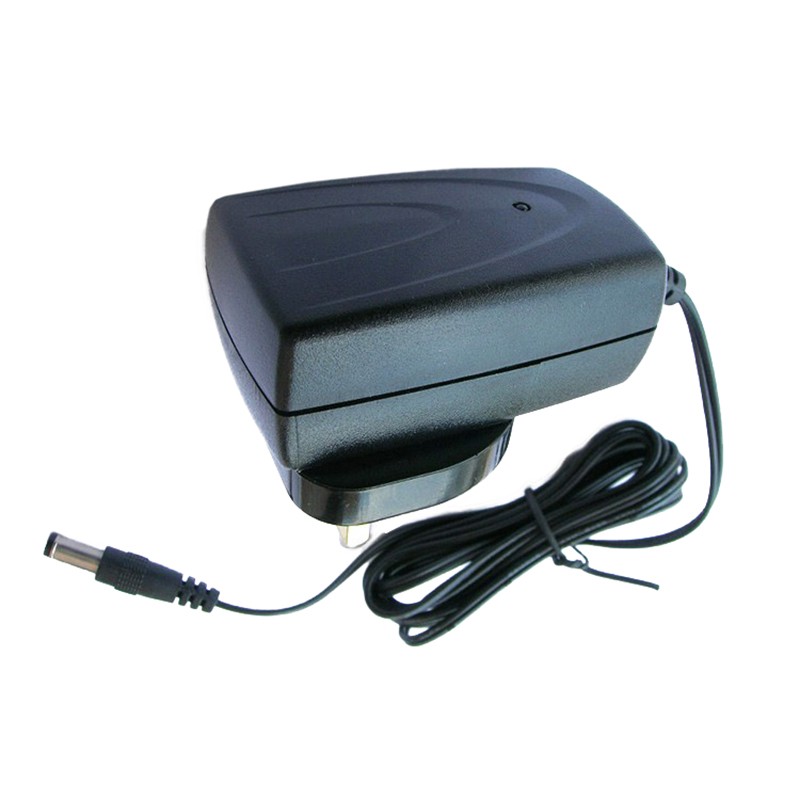

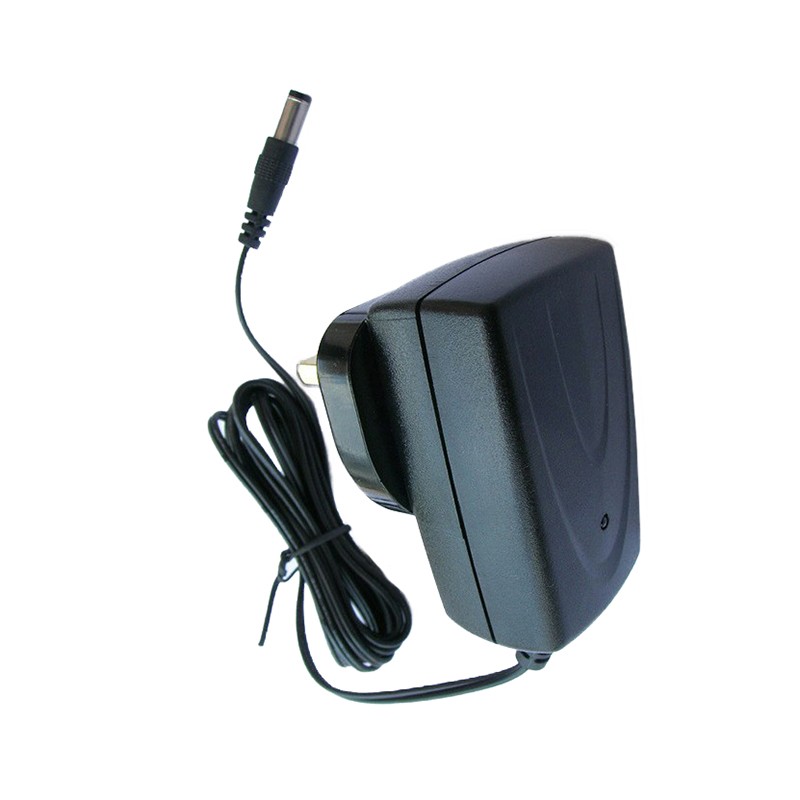

12V 0.5A power adapter
Model :IN1200500
Output :12V 0.5A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
This wall mounted 12V 0.5A AC/DC power adapter provides a high-power-density and cost-effective solution for a variety of application field. The 12V 0.5A power adapter operates at a high switching frequency to achieve high efficiency in all load conditions, with a low total standby consumption and low output ripple and noise to achieve high performance with compact profile.
The 220v AC 12V 500mA power adapter features multiple protection functions including overvoltage, short-circuit, over current to improve the reliability. Effective thermal management enhances reliability further, allows the 12V 500mA AC DC adapter to operate at full power at higher ambient temperatures.
Product availability for 5W series including 5V 0.5A power adapter and 5V 1A power supply can be found via the link http://www.intaia.com/products_show.asp?id=95.
Product specification of the 12V 500mA power adapter
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.1W | |
Average Efficiency | >70% | |
Power Factor (Typ) | >0.7 | |
Output | Output Voltage | 12V±5% |
Rated Current | 0.5A | |
Ripple & Noise | 120mV | |
Hold Up Time | >15mS(115/230Vac input at full load) | |
Transient Response(Typ) | 0.5mS for 50% load change | |
Line Regulation | ±2% max | |
Load Regulation | ±5% max | |
Protection | Over Current | 150% of rated output current, hiccup mode, auto recovery |
Over Voltage | 120%~150% of rated output voltage, hiccup mode | |
Input | 1A current fuse | |
Short Circuit | Auto recovery | |
Safety Certifications | UL60950-1, 2nd Edition, 2014 | Certificate Number: E472300 |
CAN/CSA C22.2 No.60950-1-07,2nd Edition, 2014 | Certificate Number: E472300 | |
TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2 | Certificate Number: S 50297489 | |
RCM/AS NZS60950.1:2011+A1 | Certificate Number: TUV017488EA | |
PSE/J60950-1(H26) | Certificate Number: JD 50300674 | |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
Radiated Immunity | IEC61000-4-3 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -20℃~+45℃ |
Storage Temp | -40℃~+70℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.1kgs |

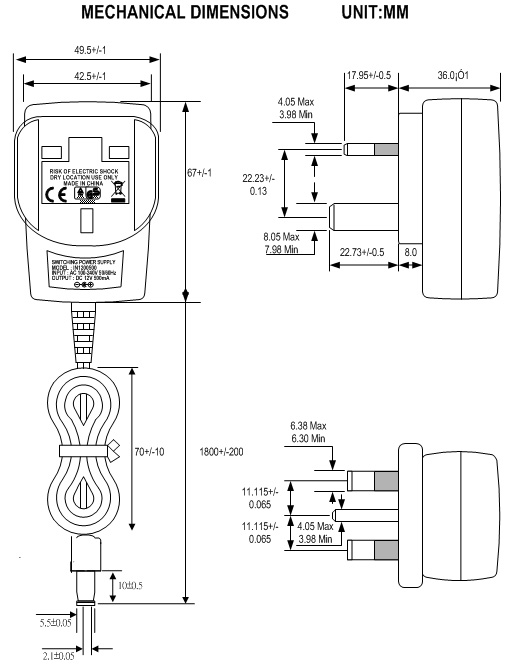

Product dimension of the 12V 500mA power adapter
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
Get in touch with us today.
Factory Show
