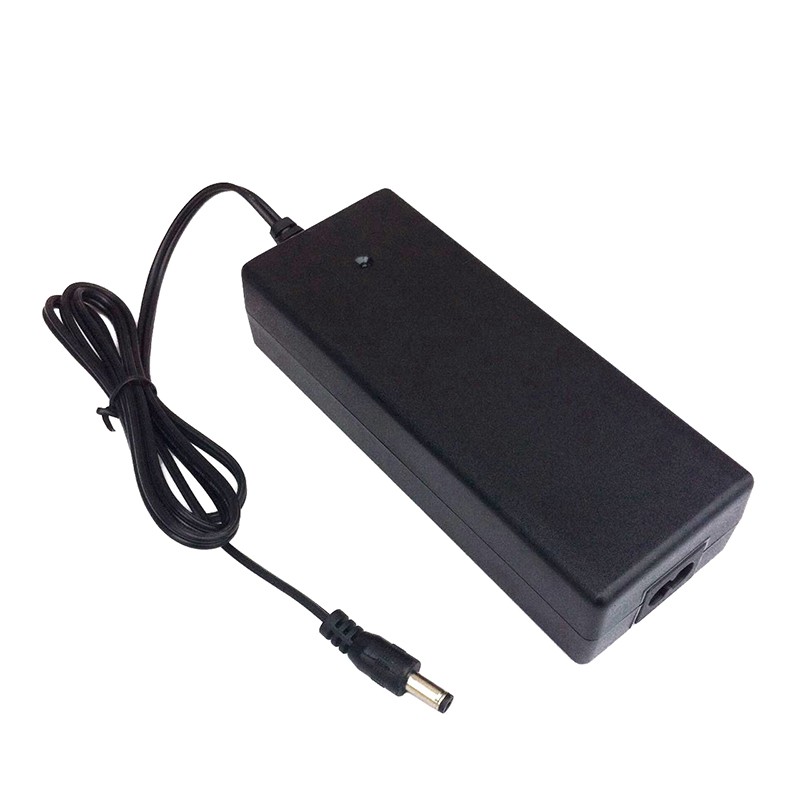

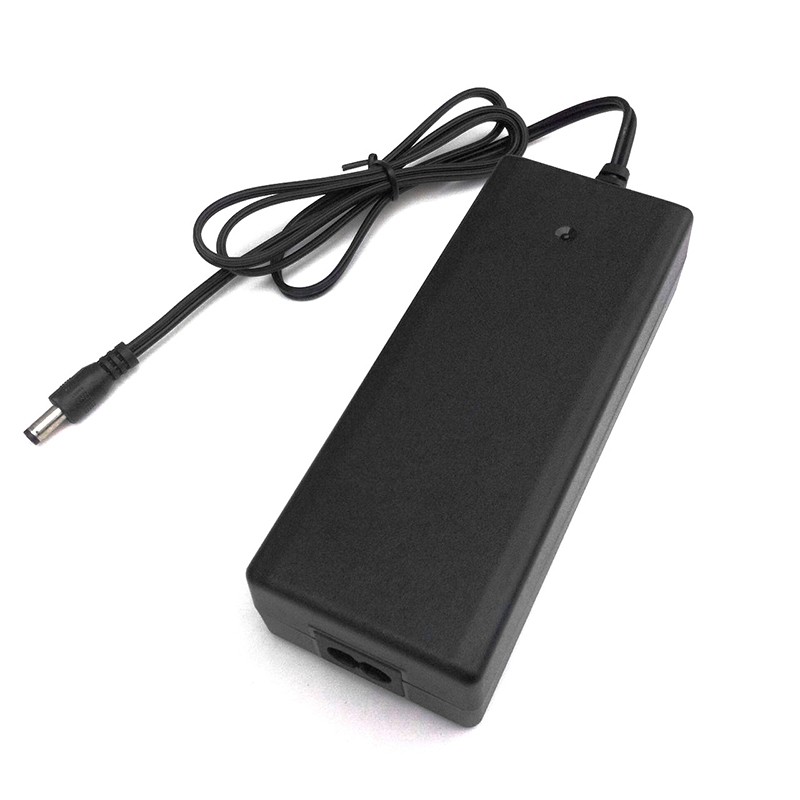

12V 100W power supply

Model :IN1207500

Output :12V 7.5A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

This AC to DC 12V 7.5amp power supply is built with the latest power supply technologies and the quality components materials to enable high performance. High-frequency AC-to-DC flyback converter with green-mode power-saving operation enables high power density and lowest no-load power consumption, to comply with global efficiency standards including DoE Level VI and EU CoC V5 Tier-2. The 12V switching power supply features full protection to maximize the reliability include OLP(Over Load Protection), OVP(Over Voltage Protection), output short-circuit protection.
The 12 volt AC DC adapter provides good EMI, high PF and low total harmonic distortion (THD) over the universal input voltage for a wide variety of application including 12V 100W LED driver.
The 12V AC DC power supply incorporates a pair of U shaped internal heat sinks to achieve efficient natural convection cooling, enable higher operating temperatures and reliability (see our UL/TUV certification).

Product specification of the 12V 100w power supply

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.21W
	Average Efficiency	>88%
	Power Factor (Typ)	>0.9
Output	Output Voltage	12V±5%
	Rated Current	7.5A
	Ripple & Noise	120mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	3.15A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.4kgs

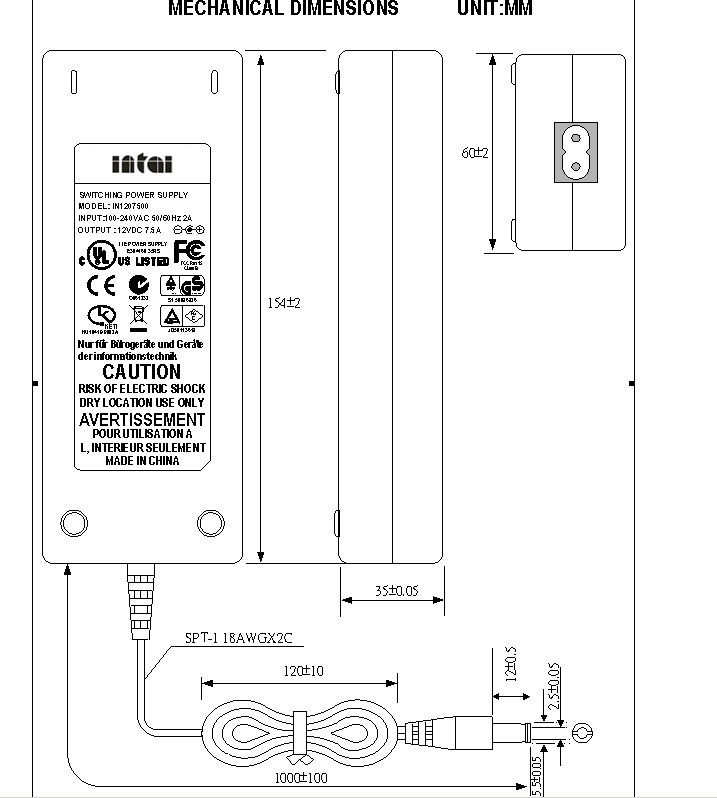

Mechanical details of the 12V 100w power supply

Safety Certificates
