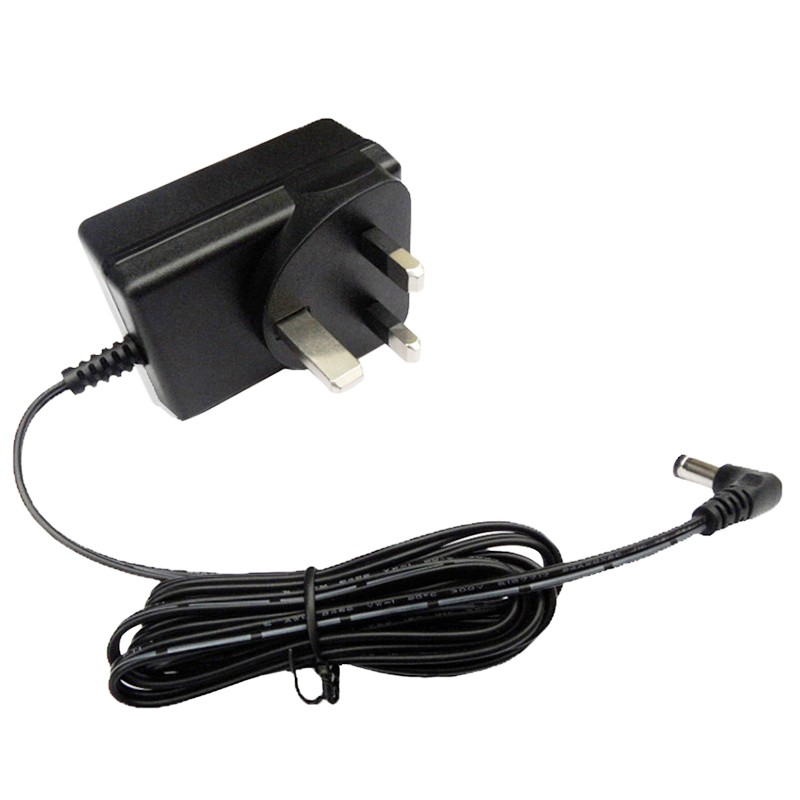

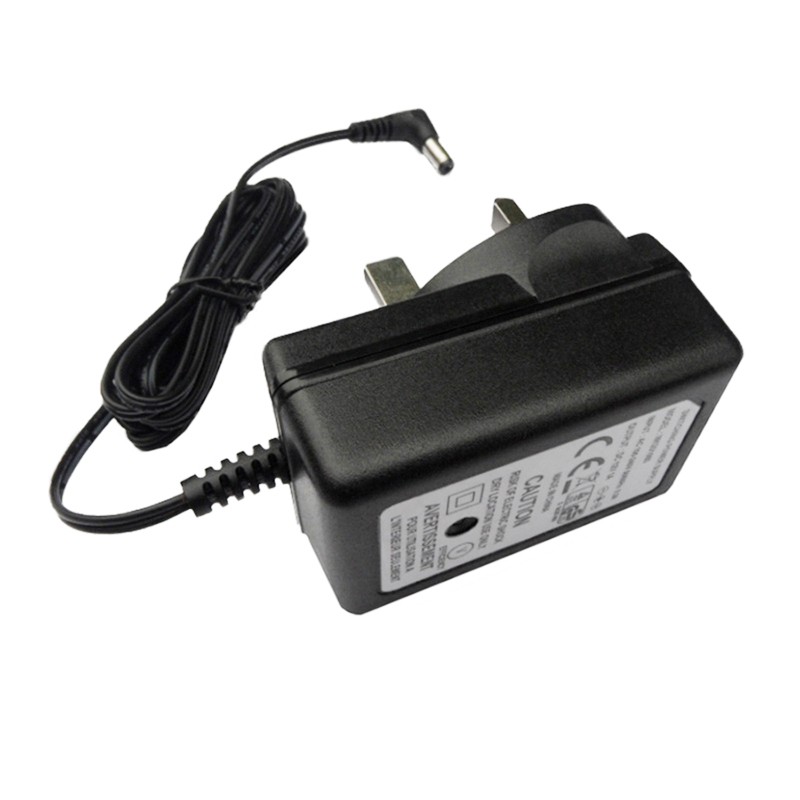

12V 1A power adapter

Model :IN1201000

Output :12V 1A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

The 12V 1A power adapter employs latest technologies to achieve excellent regulation, high power density with good EMC performance. Flyback topology based with green-mode power-saving operation enables low standby power. The power adapter 12V 1A provides excellent regulation while using primary-sensing feedback to achieve cost effectiveness and high efficiency.
The 12V 1A AC adapter features multiple protection functions to guarantee safe operation and reliability including OCP, OVP, OLP.
The 12V 1A adapter is safety certified to IEC/UL/EN 60950-1 and carries the CE mark for the Low Voltage and RoHS Directives. The 12V power adapter 1A is also compliant to EN 55022-B and FCC Class B for radiated and conducted emissions and the IEC 61000-4 immunity and IEC 61000-3-2 harmonic current standards.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.1W
	Average Efficiency	>80%
	Power Factor (Typ)	>0.7
Output	Output Voltage	12V±5%
	Rated Current	1A
	Ripple & Noise	150mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	1A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.1kgs

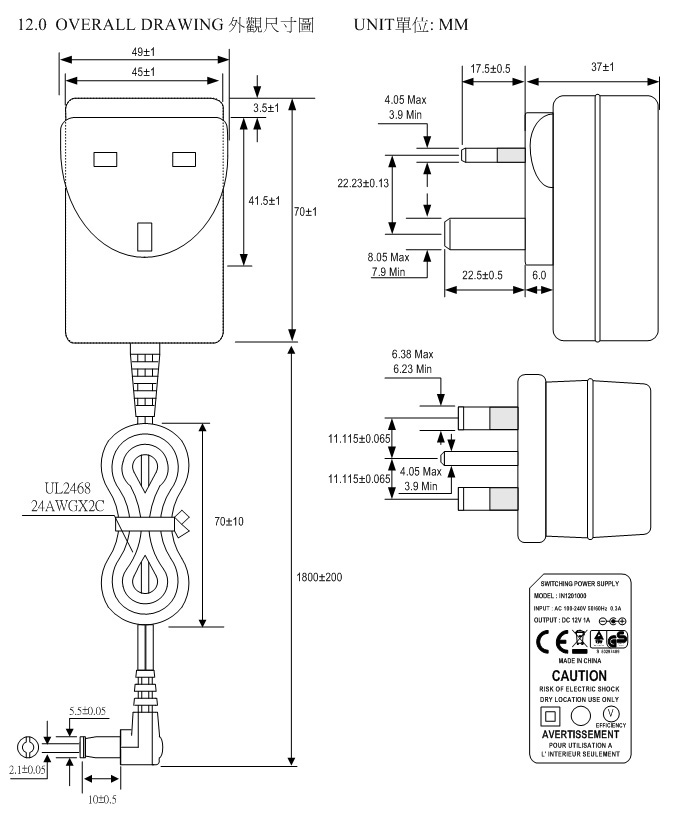

Product Dimension

Safety Certificates

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.


With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
