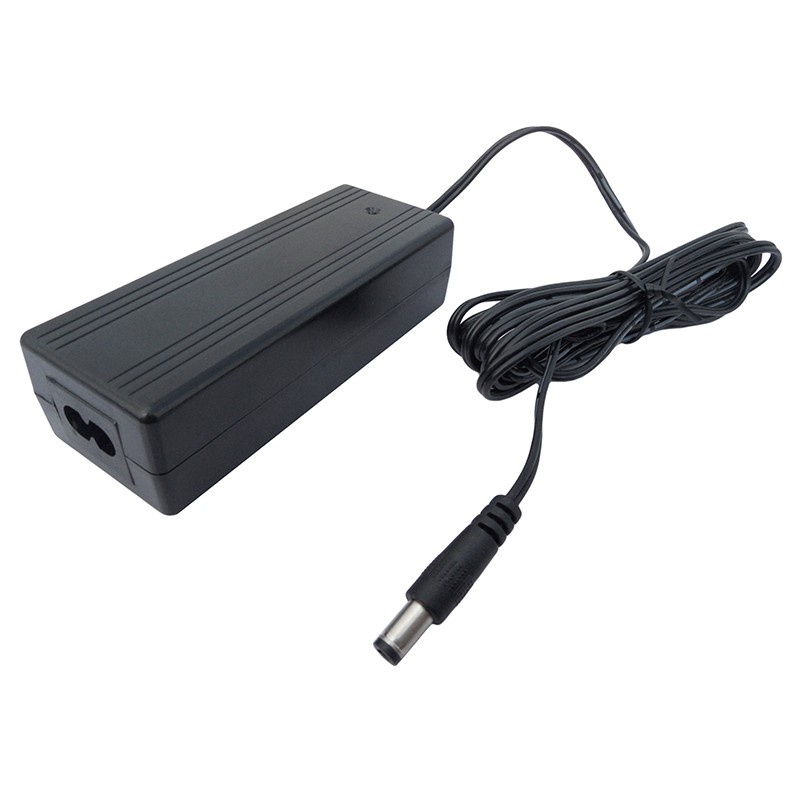

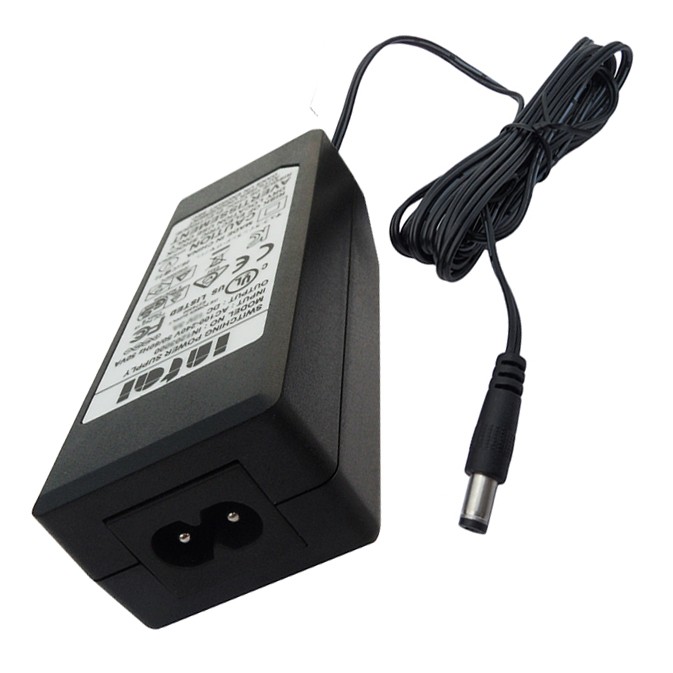

12V 3A power supply
Model :IN1203000
Output :12V 3A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
The IN1203000 12V 3A switching power supply provides accurate constant voltage (CV) regulation with High Power, Low Noise and Excellent Reliability. The 12V 3A power supply is based on a flyback converter with offline PWM controller for low standby.
The 12V 3A 36W power supply has a compact and lightweight design with very high power density. It features minimum four-point average efficiency in active mode, which is compliant with DoE Level VI, and offers low stand-by consumption. The power supply 12V 3A is protected against destructive electrostatic discharge (ESD) and provides surge immunity against electrical overstress (EOS), and with excellent EMI performance. Efficient heat dissipation design significantly enhances reliability, allows the 12V DC 3A power supply to operate at full power at higher ambient temperatures (see our UL/TUV test reports).
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.1W | |
Average Efficiency | >80% | |
Power Factor (Typ) | >0.7 | |
Output | Output Voltage | 12V±5% |
Rated Current | 3A | |
Ripple & Noise | 120mV | |
Hold Up Time | >15mS(115/230Vac input at full load) | |
Transient Response(Typ) | 0.5mS for 50% load change | |
Line Regulation | ±2% max | |
Load Regulation | ±5% max | |
Protection | Over Current | 150% of rated output current, hiccup mode, auto recovery |
Over Voltage | 120%~150% of rated output voltage, hiccup mode | |
Input | 3.15A current fuse | |
Short Circuit | Auto recovery | |
Safety Certifications | UL60950-1, 2nd Edition, 2014 | Certificate Number: E472300 |
CAN/CSA C22.2 No.60950-1-07,2nd Edition, 2014 | Certificate Number: E472300 | |
TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2 | Certificate Number: S 50297489 | |
RCM/AS NZS60950.1:2011+A1 | Certificate Number: TUV017488EA | |
PSE/J60950-1(H26) | Certificate Number: JD 50300674 | |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
Radiated Immunity | IEC61000-4-3 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -20℃~+45℃ |
Storage Temp | -40℃~+70℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.2kgs |

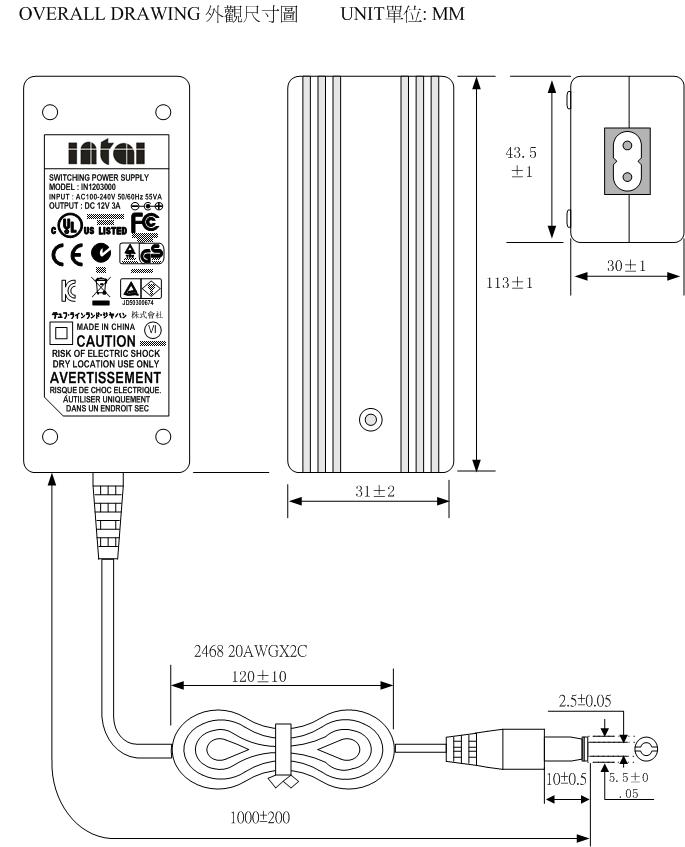

Product Dimension
Safety Certificates
