12V adapter

Model :IN1205000

Output :12V 5A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty : 3 year

The IN1205000 ac power adapter 12V 5A provides accurate constant voltage (CV) regulation with High Power, Low Noise and Excellent Reliability. The 12v adapter has a compact and lightweight design with very high power density. It features minimum four-point average efficiency in active mode, which is compliant with DoE Level VI, and offers low stand-by consumption. The 12V power supply 5A offers excellent EMC performance.
The ac adapter 12V 5A features multiple protection functions including over voltage, short-circuit, over load protection. Efficient heat dissipation design significantly enhances reliability, allows the ac adapter to dc 12V output to operate at full power at higher ambient temperatures (see our UL/TUV test reports).

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.21W
	Average Efficiency	>88%
	Power Factor (Typ)	>0.7
Output	Output Voltage	12V±%
	Rated Current	5A
	Ripple & Noise	120mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	3.15A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.3kgs

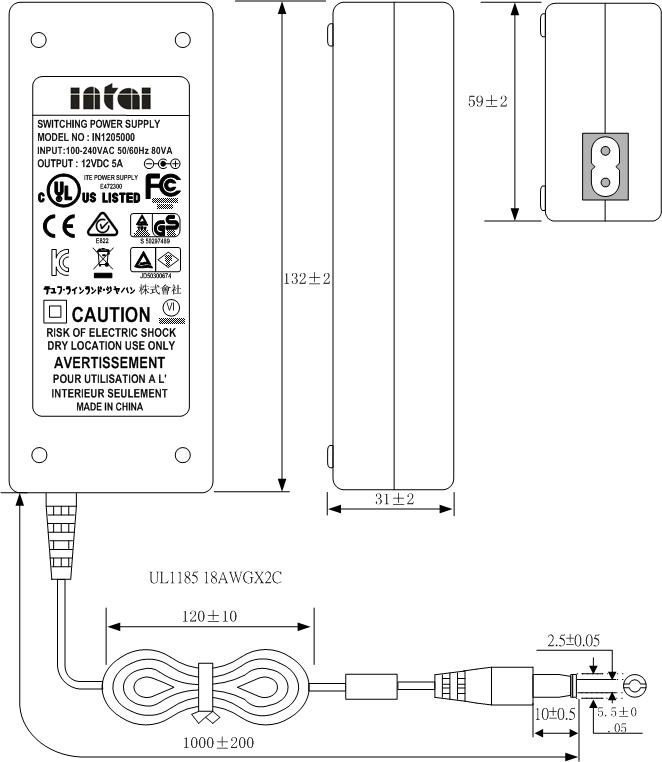

Mechanical Details(mm)

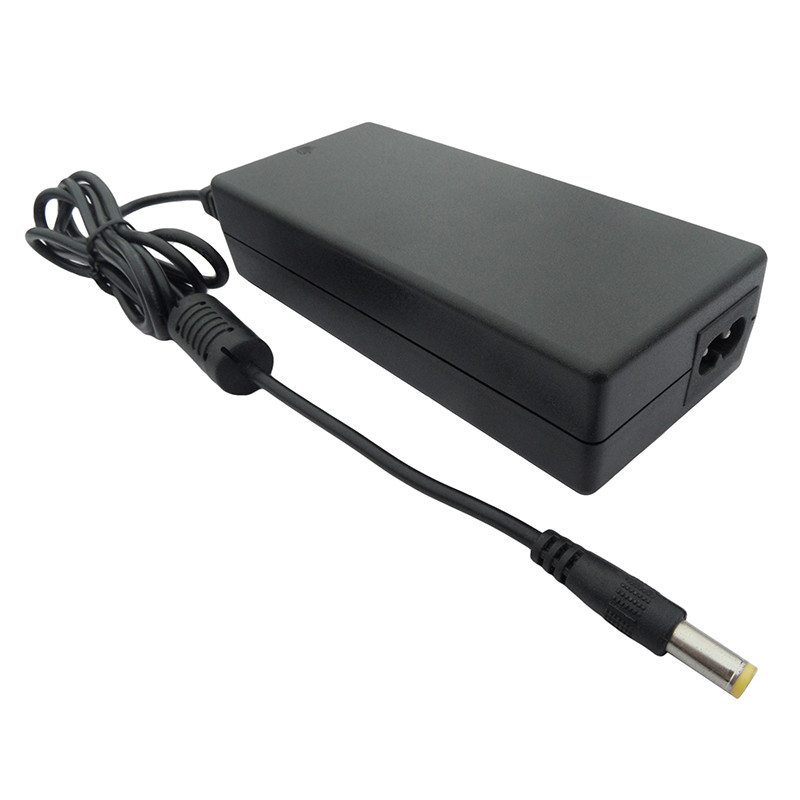

ac adapter 12v 5a

Safety Certificates

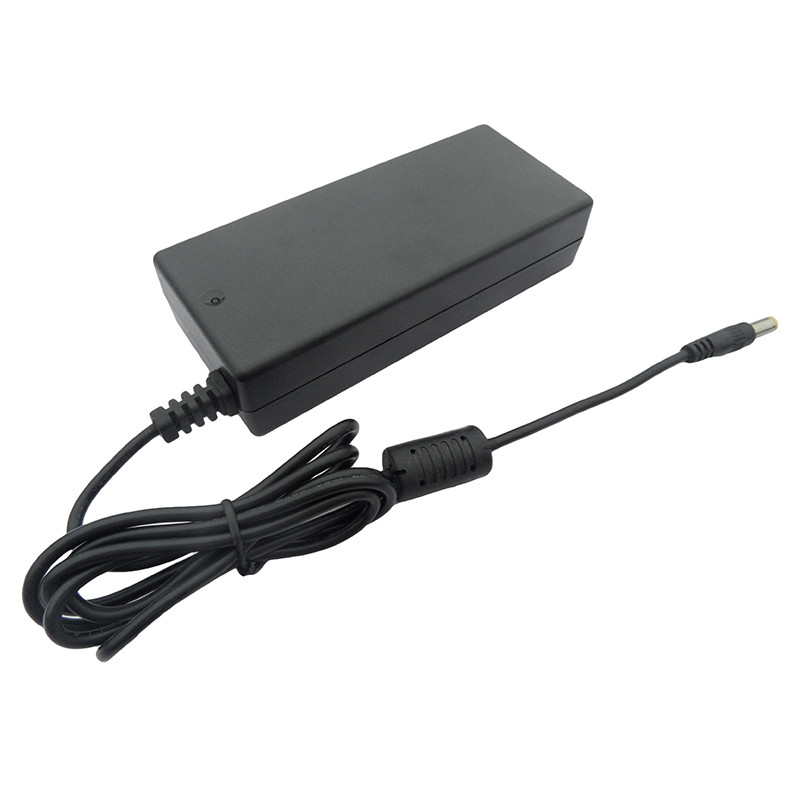

ac power adapter 12v 5a

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.

12v power supply 5a

With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.

ac adapter 12v 5a
