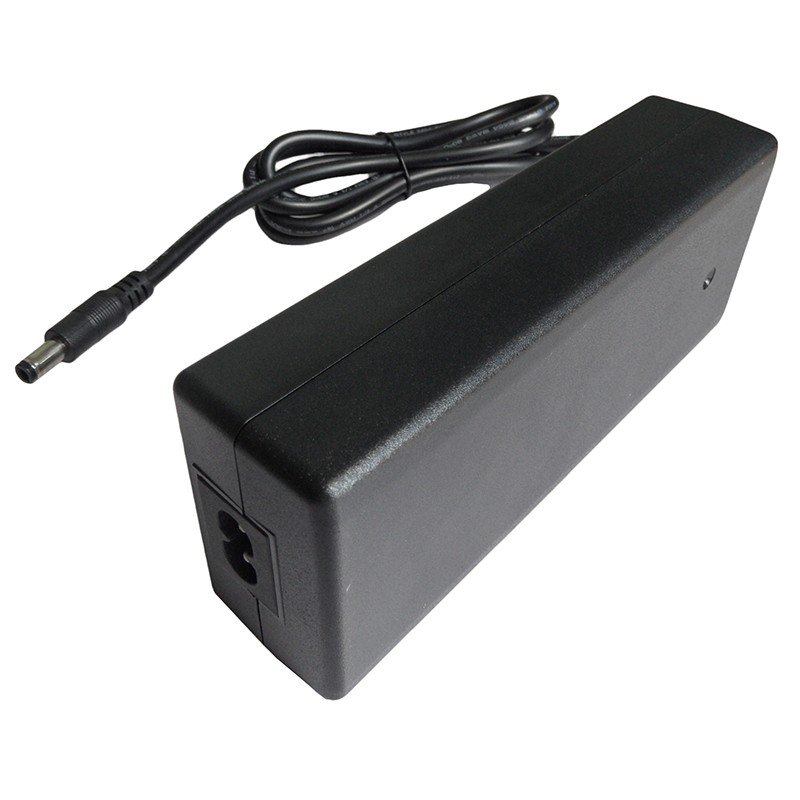

12V lead acid battery charger
Model :IN1505000
Output :14.7V 5A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
Class 2 battery charger 12V lead acid battery consists of a microcontroller to manage the charging profile for accurate and automatic charging. The 12V charger is protected against destructive electrostatic discharge(ESD), and provides surge immunity against electrical overstress(EOS) to prevent damage to the internal circuitry. Additional features of the 12V Lead Acid Battery Charger include:
Reverse polarity protection
Short circuit protection
Backfeed protection(BFP)
Cell detection and pre-charge if the cell is over discharged
Spark proof
LED to indicate charge status
Approved and Certified to UL/cUL1310 & IEC 60335-2-29
C8 AC power connector
Product Specification
| Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
| Boost Charge Voltage | 9-14.7V |
Open Circuit Voltage | 14.7V±5% | |
Charge Current | 5A±5% | |
Battery Type | 12V sealed Lead acid battery | |
Battery capacity recommended | 12AH~40AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class II battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |
The lead acid battery charger 12V is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the 14.7V battery charger
Red |
|
Green |
|
Red flash |
|

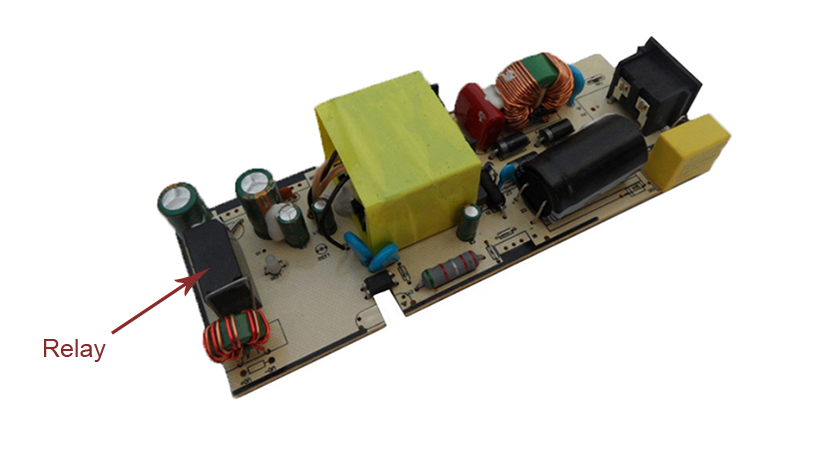

When the 12V charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

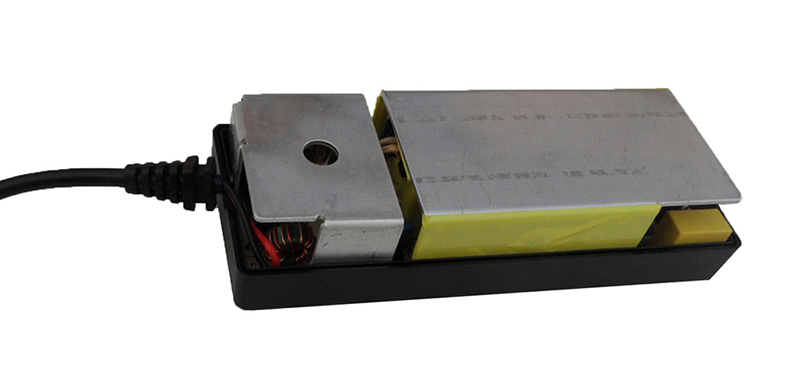

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The charger for 12V sealed lead acid battery accepts a wide input mains range (90 to 264Vac) and delivers 8-14.7 volts charging voltage profiles. The 14.7V battery charger is spark free by utilizing soft start technology.

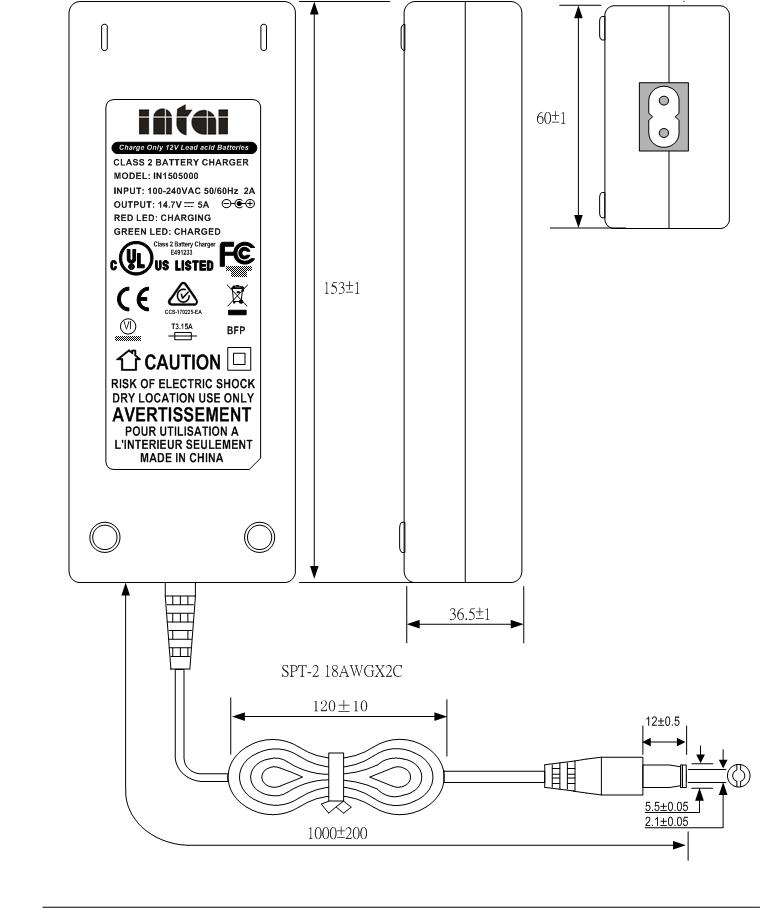

Mechanical Details(mm)
Safety certificates
