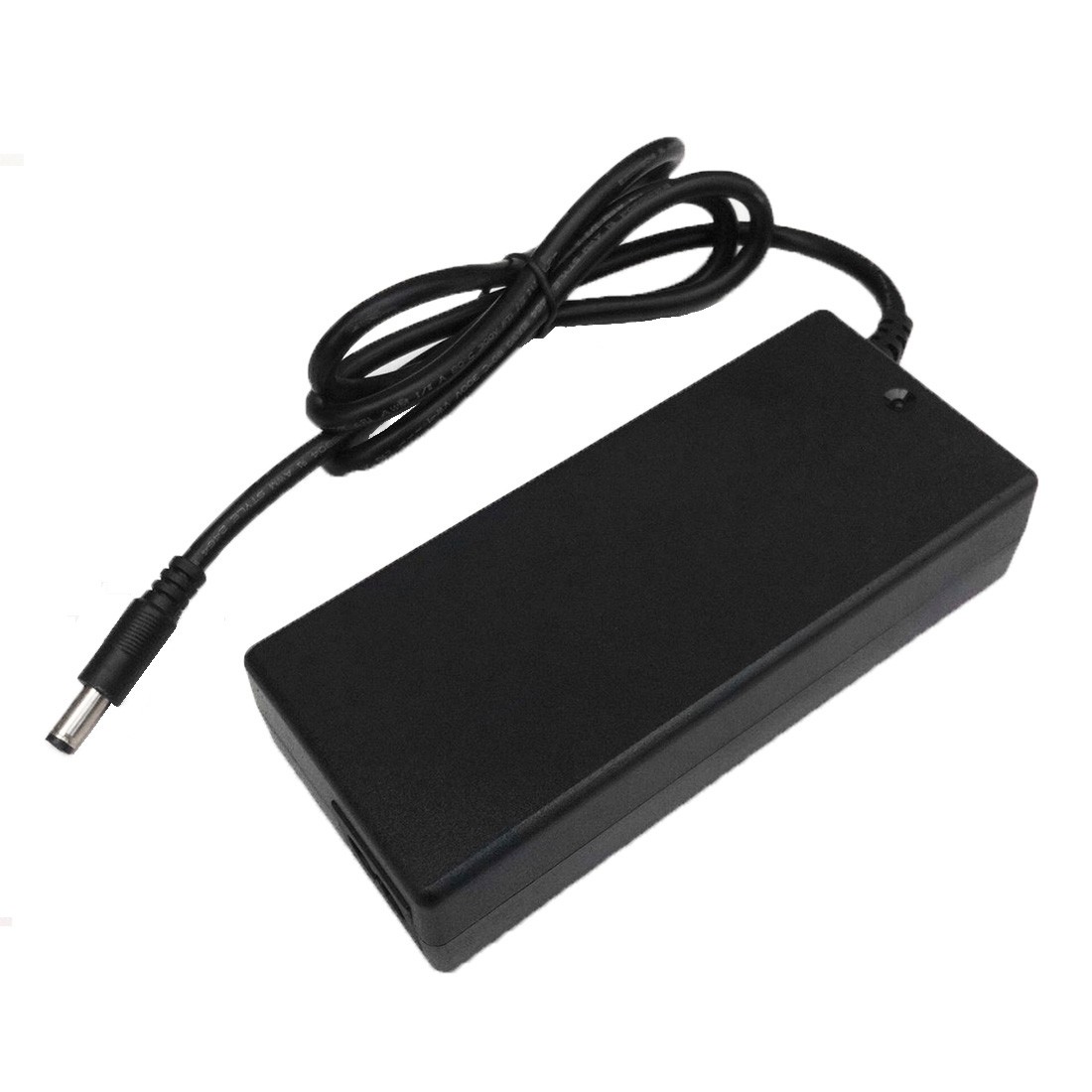

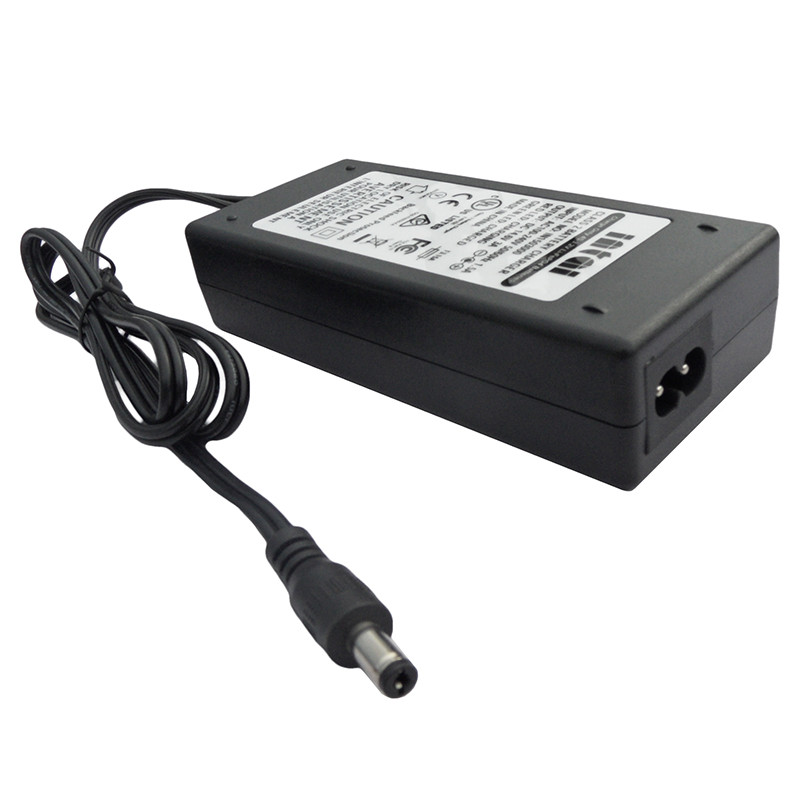

12V lithium battery recharger
Model :IN1204000
Output :12.6V 4A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
Intai lithium battery charger 12V 4A is designed employing the most up-to-date technology, and in accordance with latest industry standards. The 12V lithium charger powers up battery quickly with 4A current density and advanced lithium charge algorithms maximizing battery life and performance. The 12V lithium battery recharger enables safest operation. Safety certification available for 12V lithium battery charger series including UL/cUL1310 Class 2 Battery Charger, TUV/EN60335-1/ 2-29 and AS/NZS60335-1/ 2-29 Household and similar electrical appliances - Particular requirements for battery chargers. The 12 volt lithium battery charger series is also compliant to EN 55014-B and FCC Class B for radiated and conducted emissions and the IEC 61000-4 immunity and IEC 61000-3-2 harmonic current standards.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 7-12.6V |
Open Circuit Voltage | 12.6V±5% | |
Charge Current | 4A±5% | |
Battery Type | 3S 12V Lithium battery 18065 pack | |
Battery capacity recommended | 12AH~30AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class II battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |
The 12 volt lithium battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of The Lithium Battery Charger 12V
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |
When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

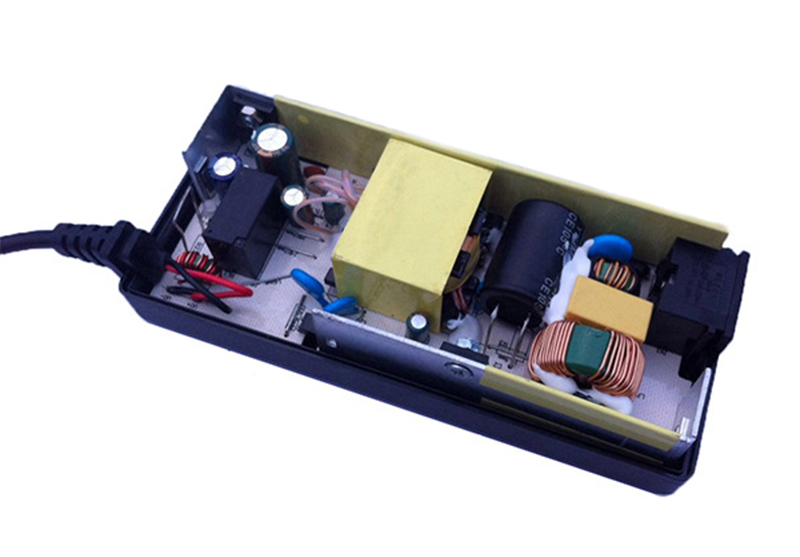

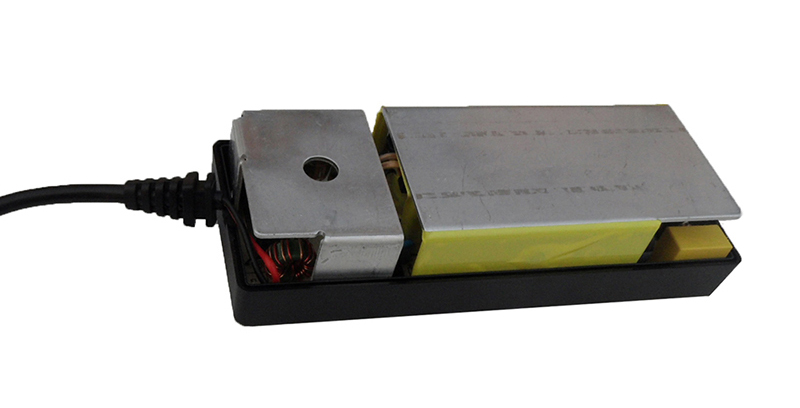

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The 18065 battery charger 12.6V 4A operates silently and safely. With the application of soft start technology, the output is spark free.

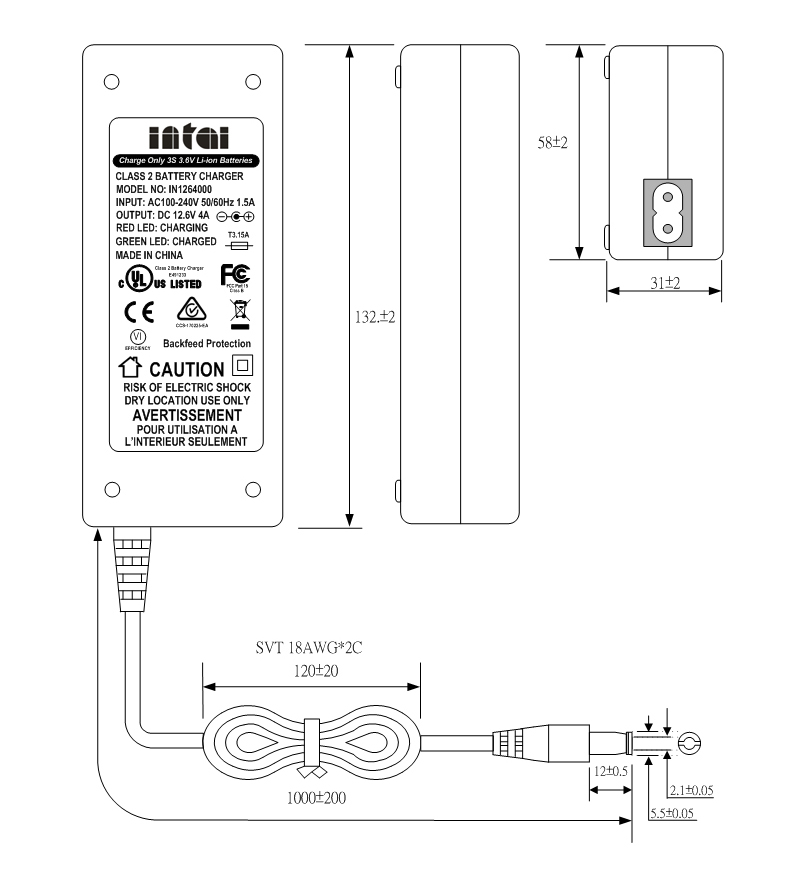

Product Dimension
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
