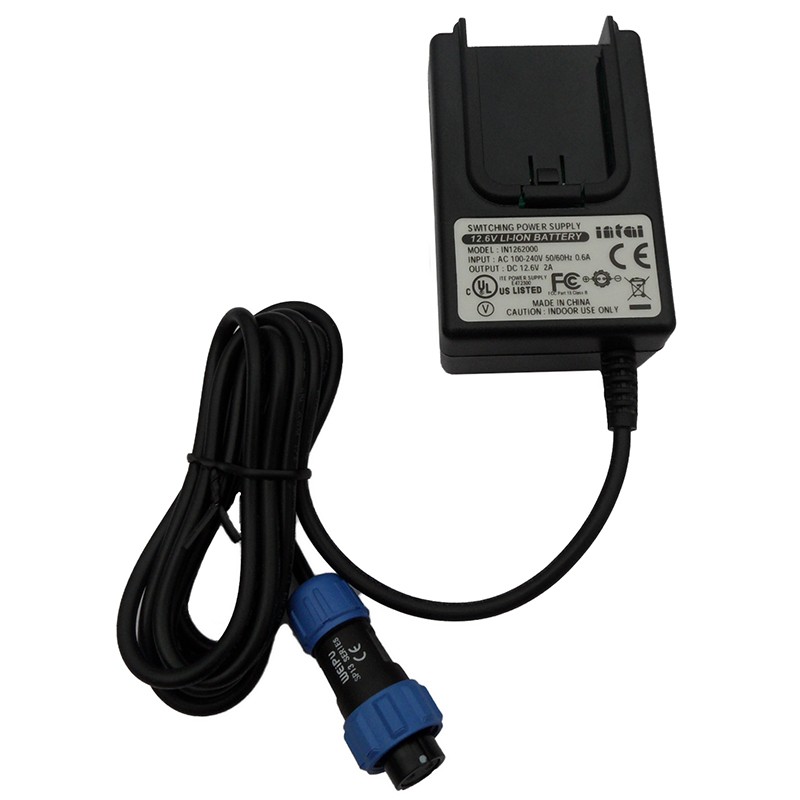

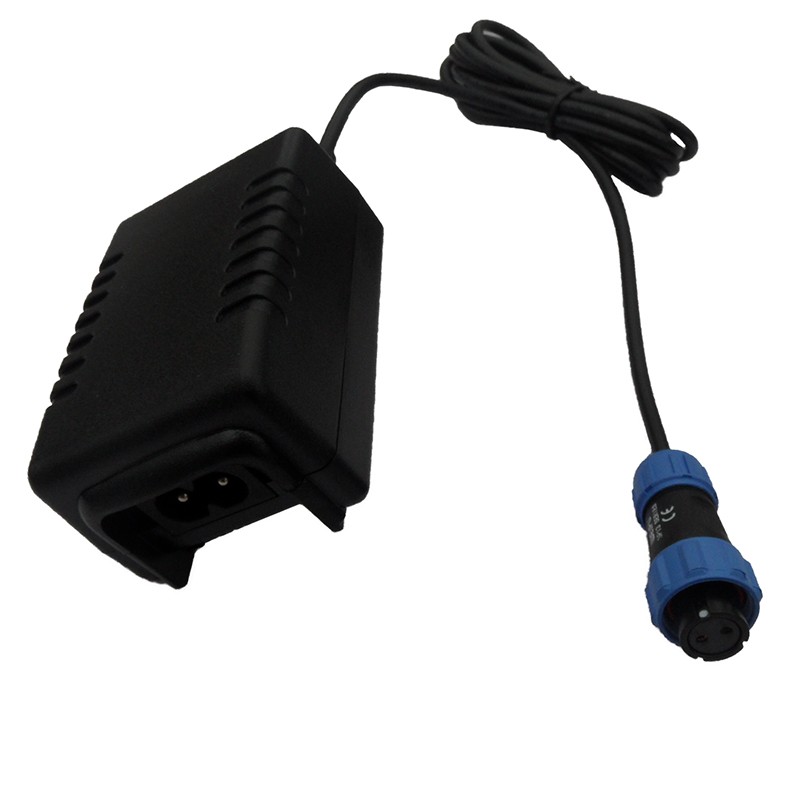

12V Lithium ion battery charger
Model :IN1262000
Output :12.6V 2A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
This lithium battery chargers 12 volt 2 amp comes with interchangeable plug heads: US, EU, JP, AU, UK for international use. It is an quality battery charger made with the highest quality standard for a highly efficient, high performance 12V lithium ion charger for 3 cell battery. The 12V li-ion battery charger is equipped with waterproof output connector for marine application.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >80% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 7-12.6V |
Open Circuit Voltage | 12.6V±5% | |
Charge Current | 2A±5% | |
Battery Type | 3S cell 12 volt Lithium ion battery | |
Battery capacity recommended | 3AH~12AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 1A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL, GS, CE, PSE, RCM | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.2kgs | |
The 12V lithium ion battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.

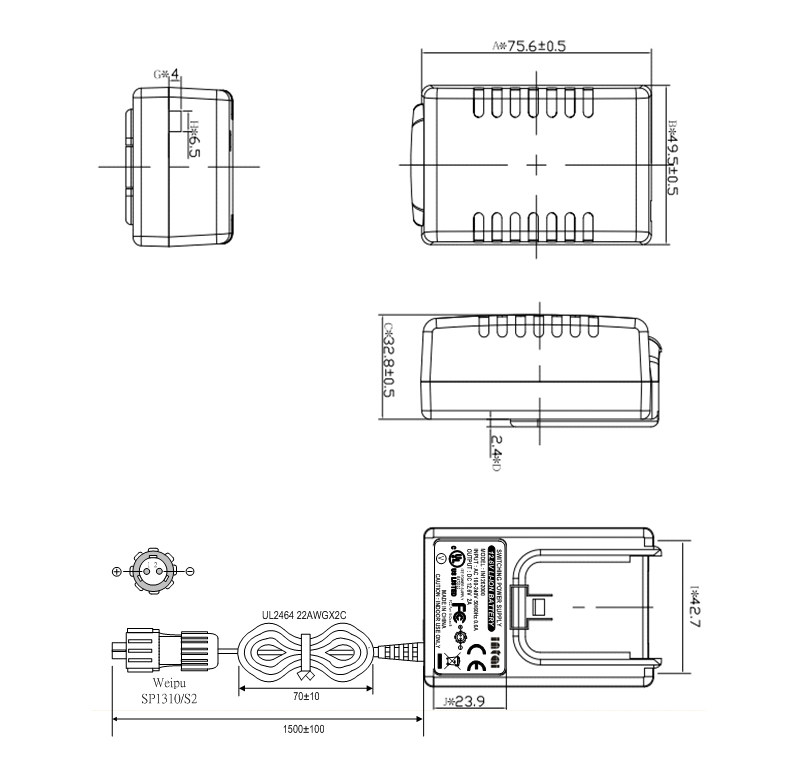

Machanical Details for The 12V Li-ion Battery Charger(mm)
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
Get in touch with us today.
Factory Show
