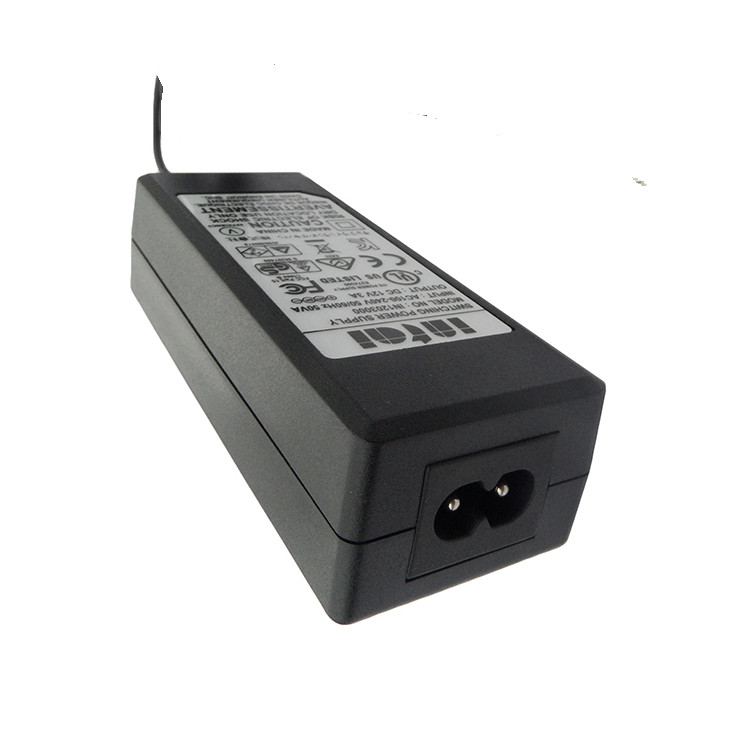

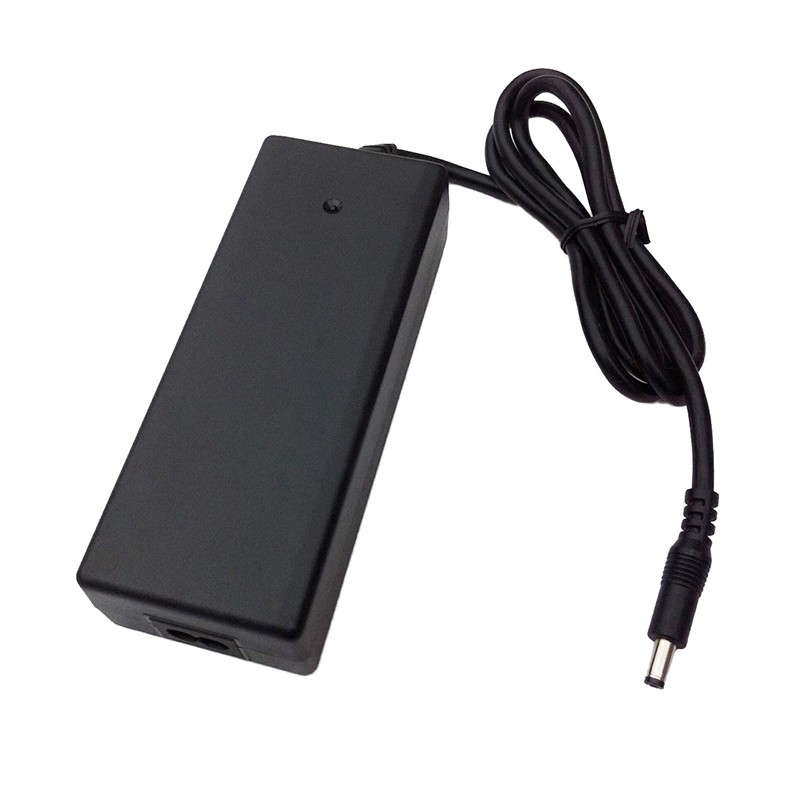

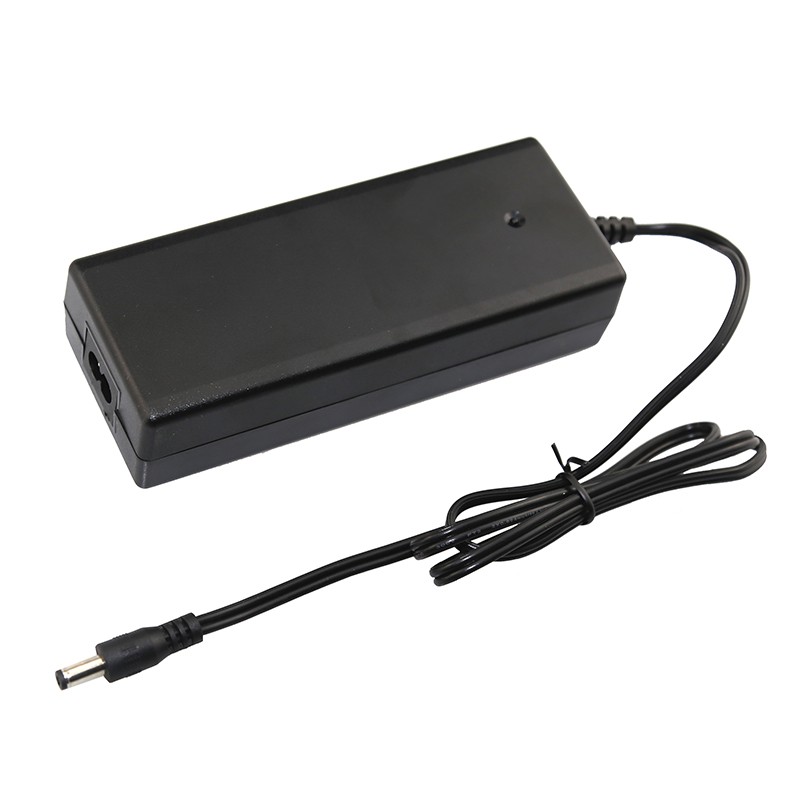

12V Power adapter

Model :IN1207500

Output :12V 7.5A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

The switching power supply 12V 7.5A is built with the latest power supply technologies and the quality components materials to enable high performance. It features resonant-ring valley-switching operation for high operating efficiency, green-mode power-saving operation for low no-load power consumption resulting in excellent energy efficiency performance. The ac dc power adapter 12V 7A provides constant voltage regulation with low noise. Opto-Coupled Feedback Enables up to 2% Regulation. The 12V power adapter operates at 80-kHz maximum switching frequency with excellent EMC performance. Efficient natural cooling thermal management enhances operating performance and reliability that allows the power adapter 12V to operate at full power at higher ambient temperatures.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.21W
	Average Efficiency	>88%
	Power Factor (Typ)	>0.7
Output	Output Voltage	12V±5%
	Rated Current	7.5A
	Ripple & Noise	150mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	3.15A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.4kgs

Product Dimension

12v 7.5a

Safety Certificates

ac dc power adapter 12v

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.

12v 7a

With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.

12v 7.5a
