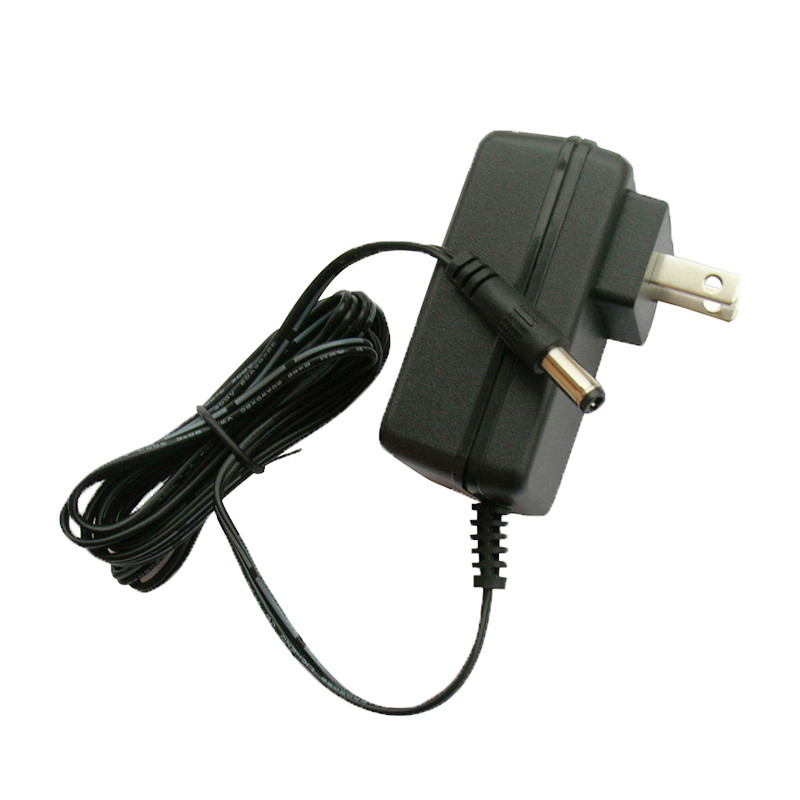

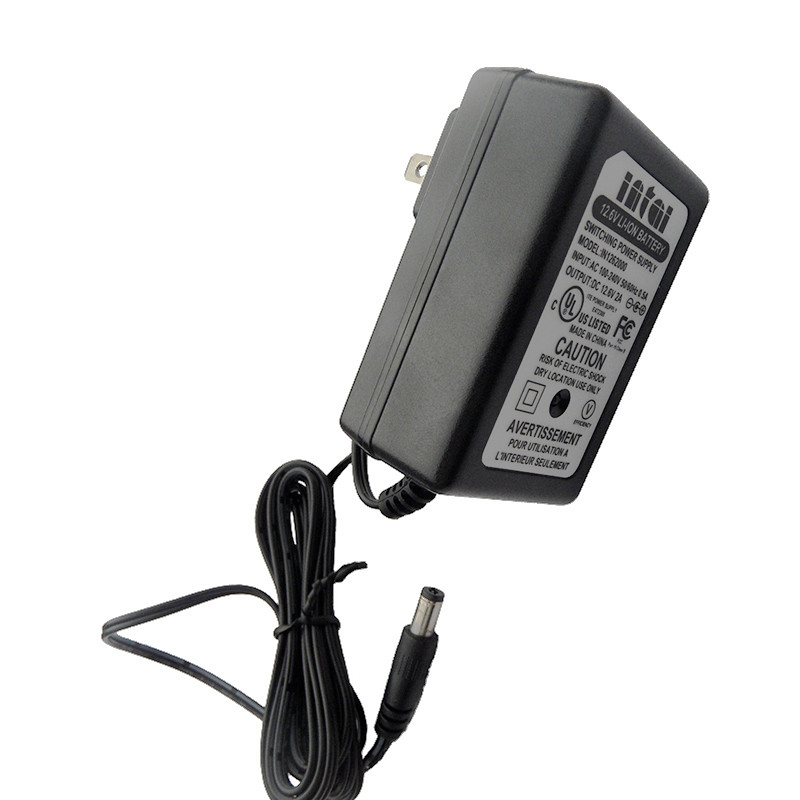

18650 battery charger
Model :IN1262000
Output :12.6V 2A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
The wall plug in IN1262000 li ion 18650 battery charger is compact constructed with high power densities due to effective thermal management in power electronics. The 18650 li ion battery charger operates efficiently without overcharge the batteries. The 18650 charger was designed to ensure a MTBF better than 40000 hours at 35℃. It features
* For 3 cell 18650 batteries
* 3 stage battery charger
* LED to indicate charge status
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >80% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 7-12.6V |
Open Circuit Voltage | 12.6V±5% | |
Charge Current | 2A±5% | |
Battery Type | 3S cell 18650 Li ion Lipo battery | |
Battery capacity recommended | 5AH~12AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 1A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL PSE CE RCM | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.1kgs | |
The 12.6V 2A charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of the 18650 li ion battery charger
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |

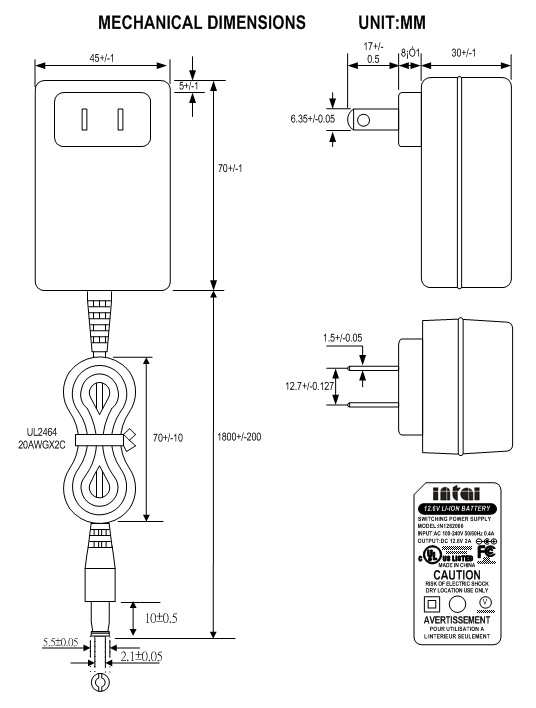

Mechanical Details(mm)
The 18650 lipo battery charger works safely and silently. With the application of soft start technology, the output is spark free.
