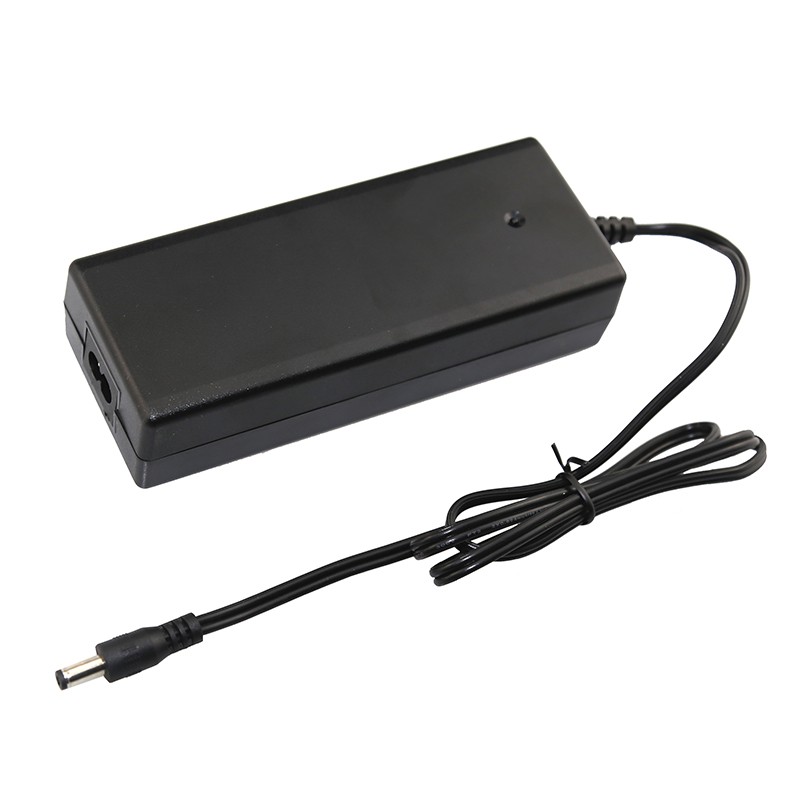

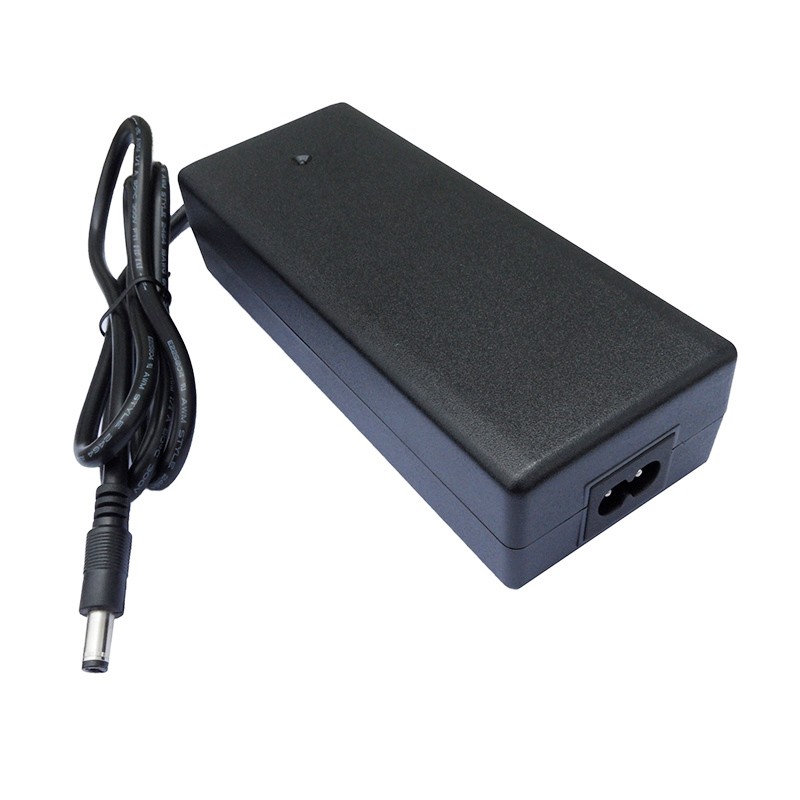

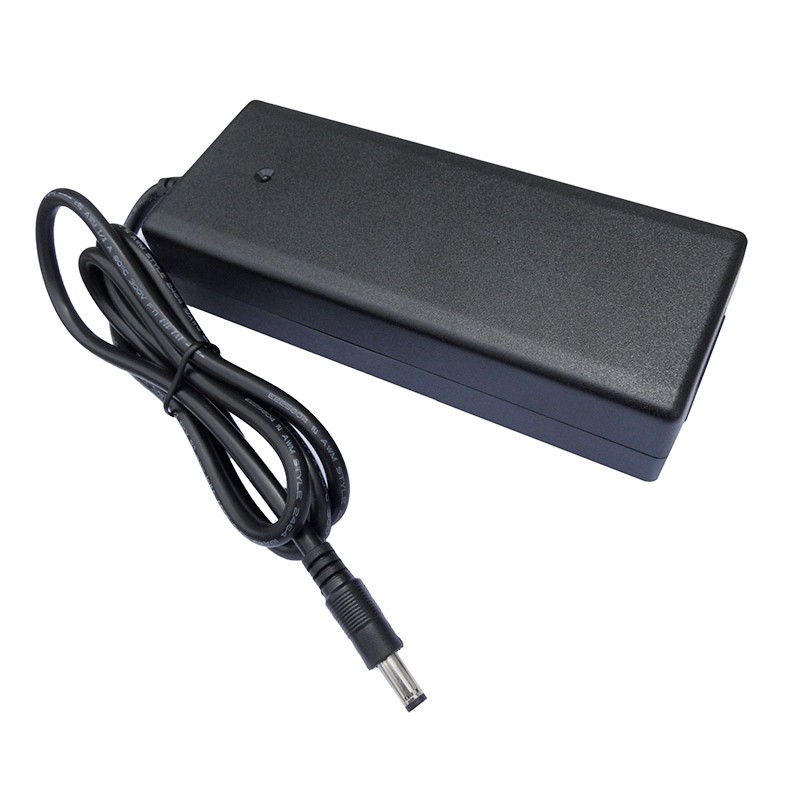

24 Volt AC DC adapter
Model :IN2404000
Output :24V 4A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
This power adapter 24V 4A is built with the latest power supply technologies and the quality components materials to enable high performance. The 24 volt AC DC adapter features 80-kHz Maximum Switching Frequency, Resonant-Ring Valley-Switching Operation for High operating efficiency, Green-mode Power-Saving Operation, Opto-Coupled Feedback Enables up to 2% Regulation. The ac dc adapter 24vdc is designed to ensure a MTBF better than 40000 hours at 25℃ full load. To maximize the reliability, the 24 volt DC adapter has fault protections including Output Over-Voltage, Over-Current, Short-Circuit protections.
The AC DC adapter 24 volt series is safety certified to IEC/UL/EN 60950-1 and carries the CE mark for the Low Voltage and RoHS2 Directives. The 24V AC DC adapter series is also compliant to EN 55022-B and FCC Class B for radiated and conducted emissions and the IEC 61000-4 immunity and IEC 61000-3-2 harmonic current standards.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.21W | |
Average Efficiency | >88% | |
Power Factor (Typ) | >0.7 | |
Output | Output Voltage | 24V±5% |
Rated Current | 4A | |
Ripple & Noise | 250mV | |
Hold Up Time | >15mS(115/230Vac input at full load) | |
Transient Response(Typ) | 0.5mS for 50% load change | |
Line Regulation | ±2% max | |
Load Regulation | ±5% max | |
Protection | Over Current | 150% of rated output current, hiccup mode, auto recovery |
Over Voltage | 120%~150% of rated output voltage, hiccup mode | |
Input | 3.15A current fuse | |
Short Circuit | Auto recovery | |
Safety Certifications | UL60950-1, 2nd Edition, 2014 | Certificate Number: E472300 |
CAN/CSA C22.2 No.60950-1-07,2nd Edition, 2014 | Certificate Number: E472300 | |
TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2 | Certificate Number: S 50297489 | |
RCM/AS NZS60950.1:2011+A1 | Certificate Number: TUV017488EA | |
PSE/J60950-1(H26) | Certificate Number: JD 50300674 | |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
Radiated Immunity | IEC61000-4-3 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -20℃~+45℃ |
Storage Temp | -40℃~+70℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |

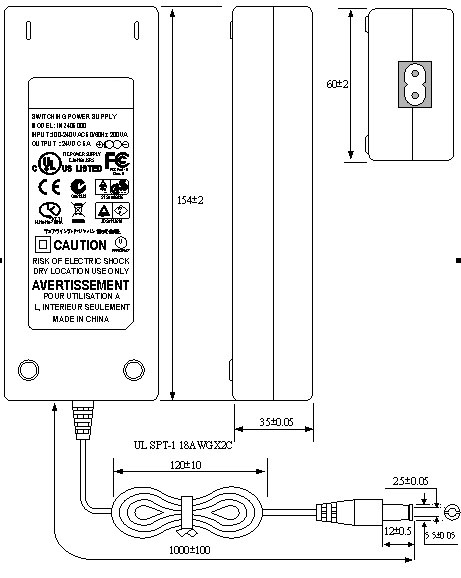

Product Dimension
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
Get in touch with us today.
