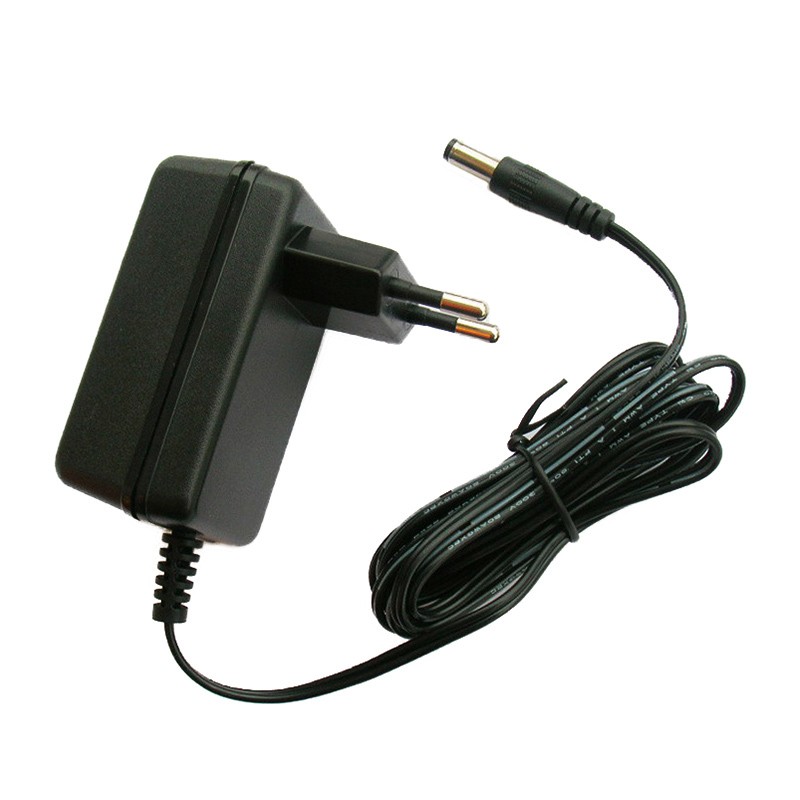

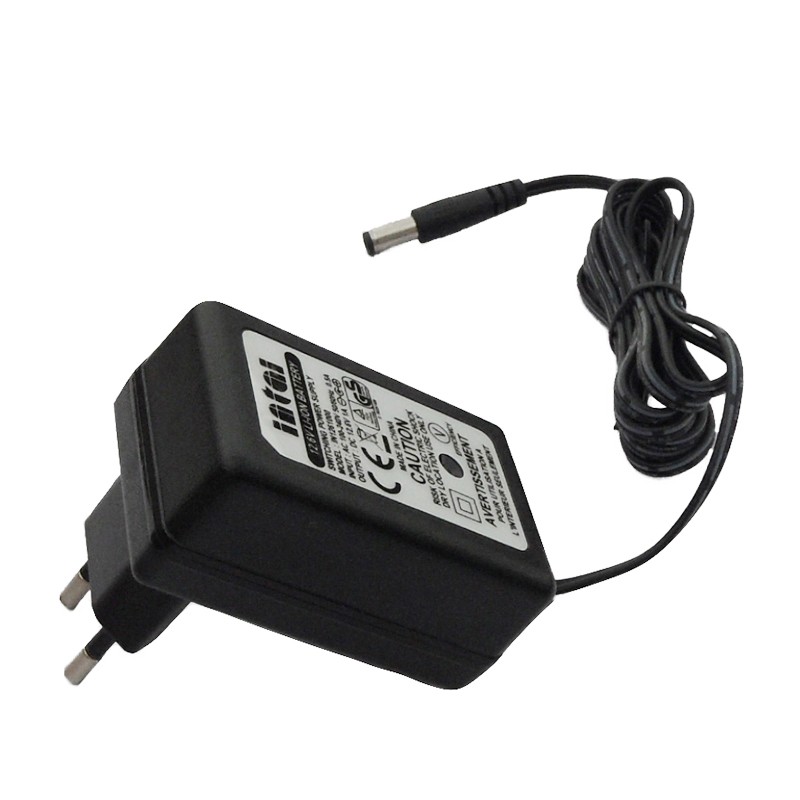

24V 1A power adapter

Model :IN2401000

Output :24V 1A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

This wall mounted power adapter 24V 1A offers a high-power-density and cost-effective solution for a variety of application field. The 24v power supply 1A operates at a high switching frequency to achieve high efficiency in all load conditions, with an extremely low total standby consumption and low output ripple and noise. The 24v 1a power supply provides constant voltage regulation, over-current protection and good EMC performance. Full protection functions improve the reliability including OCP, OVP, OLP, and effective thermal management enhances reliability further, allows the 24 volt power supply to operate at full power at higher ambient temperatures.
The 24V 1A power adapter comes with US/EU/UK/AU/JP versions.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.1W
	Average Efficiency	>80%
	Power Factor (Typ)	>0.7
Output	Output Voltage	24V±5%
	Rated Current	1A
	Ripple & Noise	250mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	1A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.12kgs

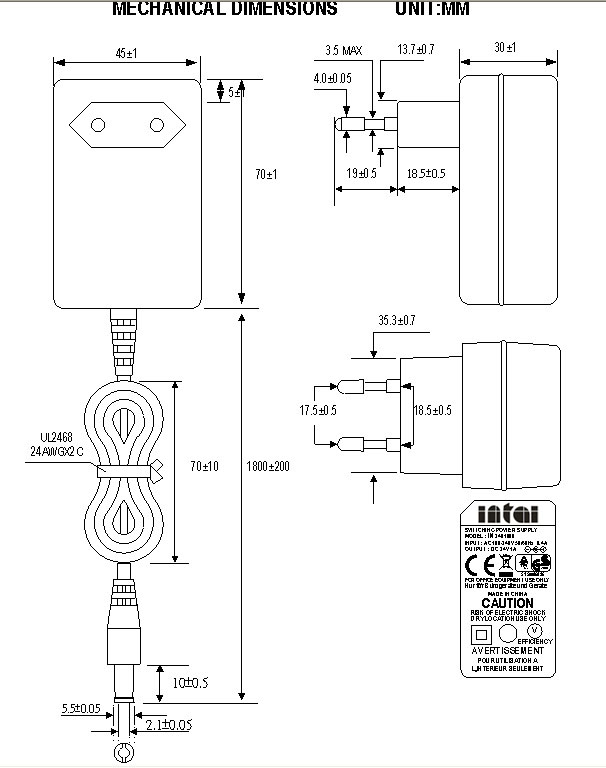

Mechanical details of the 24 1A power adapter (mm)

24 volt power supply

Safety Certificates

power adapter 24v 1a

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.

24v 1a power supply

With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.

24 volt power supply
