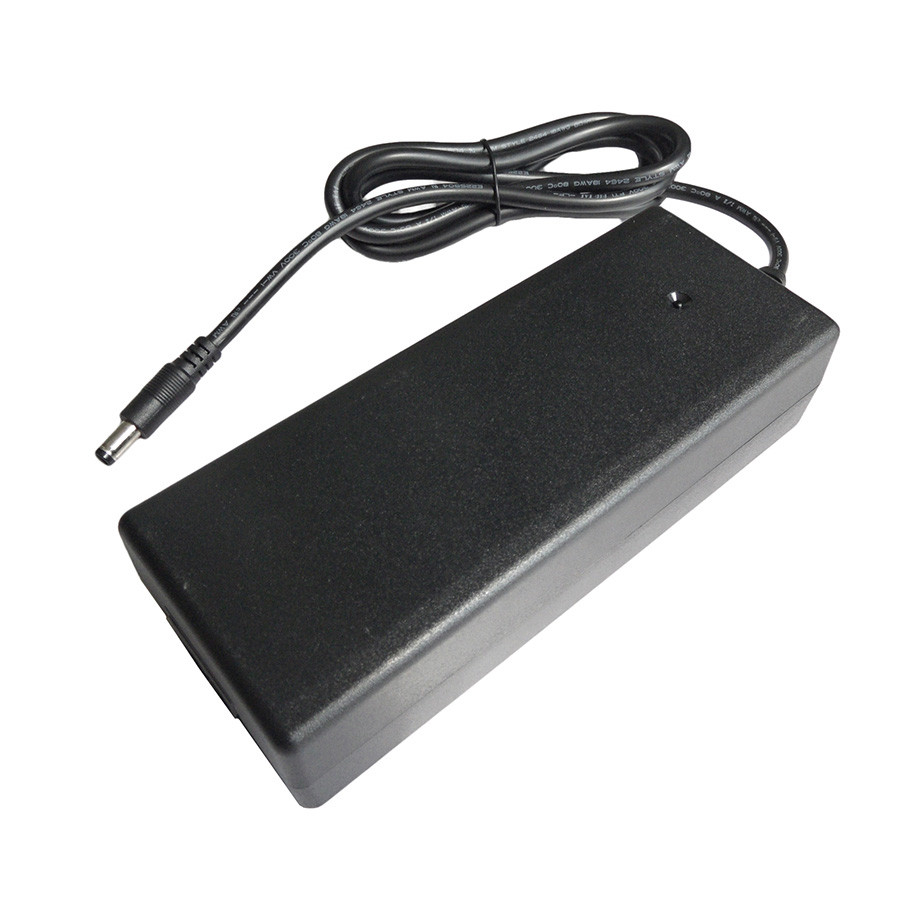

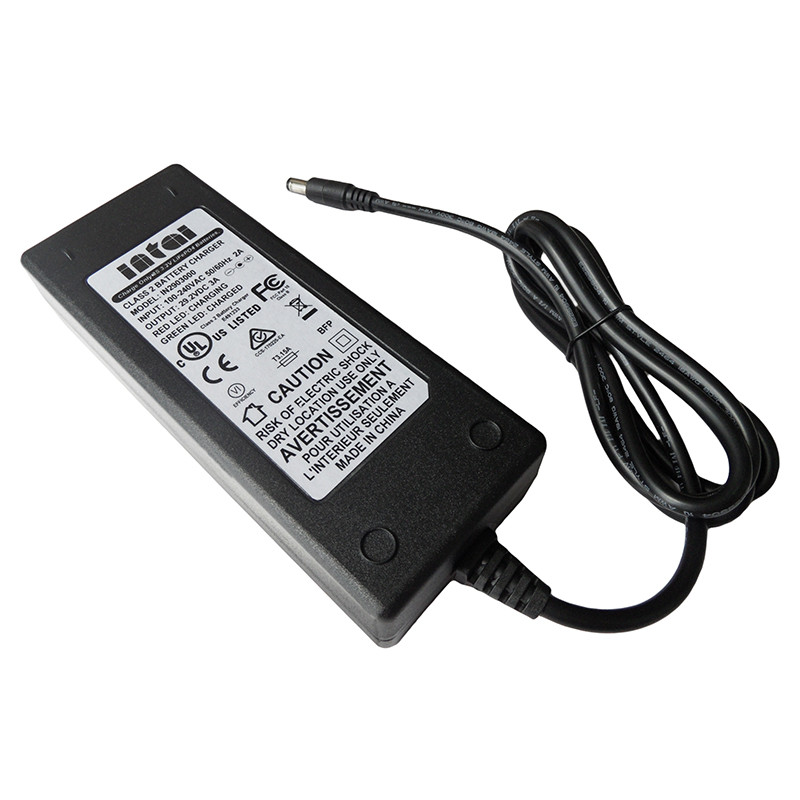

24V 3 amp battery charger
Model :IN2903000
Output :29.2V 3A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
The IN2903000 24V 3 amp battery charger delivers 18~29.2V regulated charging voltage for 8 cell 24V pack. The 29.2V battery charger is a fully intelligent battery charger which communicates with the LiFePO4 battery to monitor cell voltage and charge status to optimize the performance and extend the life of the battery. The 29.2V charger is equipped with protective electronics that automatically shut down the charger when cells are fully charged or in case any faulty occurs. With the BFP protection, the 24V LiFePO4 charger is capable of preventing backflow of current into the charger from the battery. The following symptoms are incurred if the red light continuously flashes:
- The battery voltage is detected too low the charging will not be commenced.
- Reverse polarity connected or short circuited.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 18-29.2V |
Open Circuit Voltage | 29.2V±5% | |
Charge Current | 3A±5% | |
Battery Type | 8S cell Lifepo4 battery 24V | |
Battery capacity recommended | 10AH~30AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |

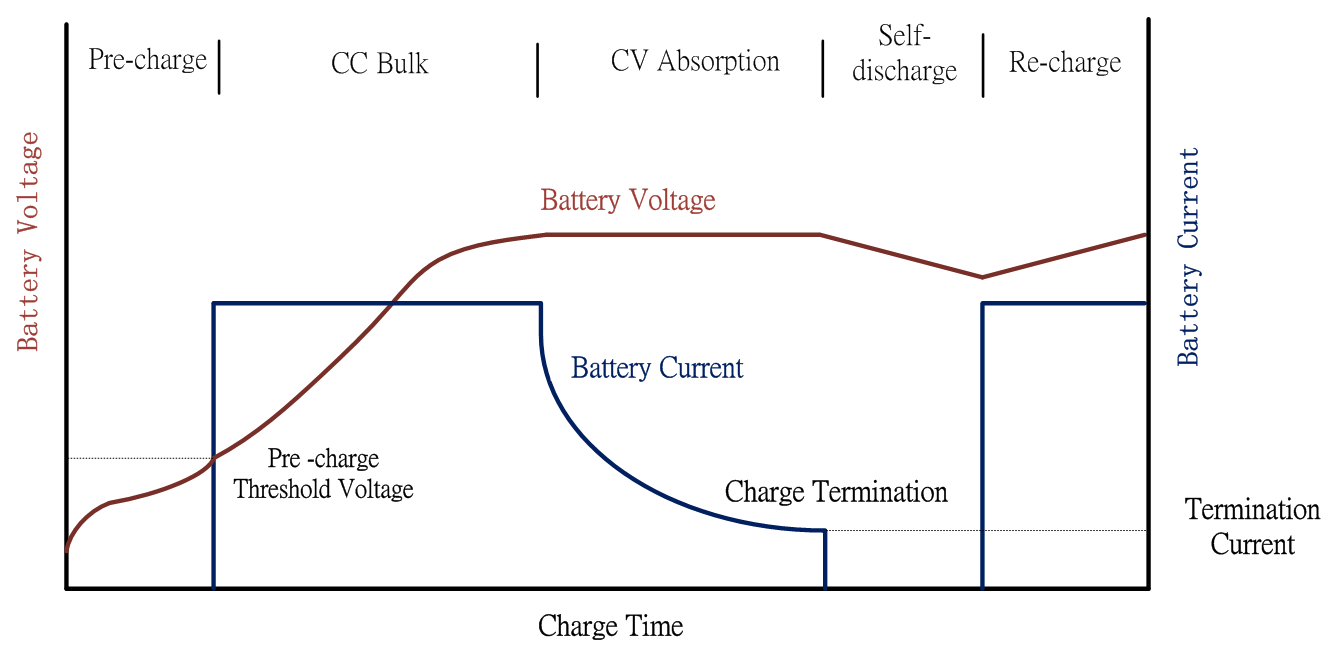

The smart battery charger 24V is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the lifepo4 charger inverter
Red | Charging or disconnect form the batteries |
Green | Batteries fully charged |
Red flash | Reverse connection with the battery Faulty battery Short circuit |

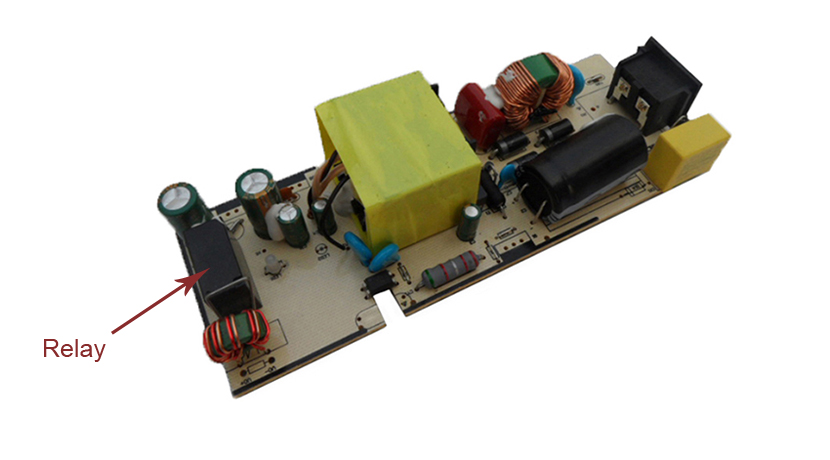

When the charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

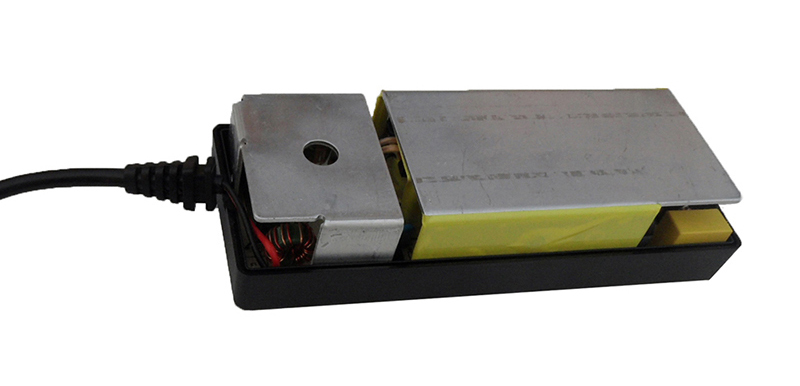

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The 29.2V battery charger works silently and safely. With the application of soft start technology, the output is spark free.

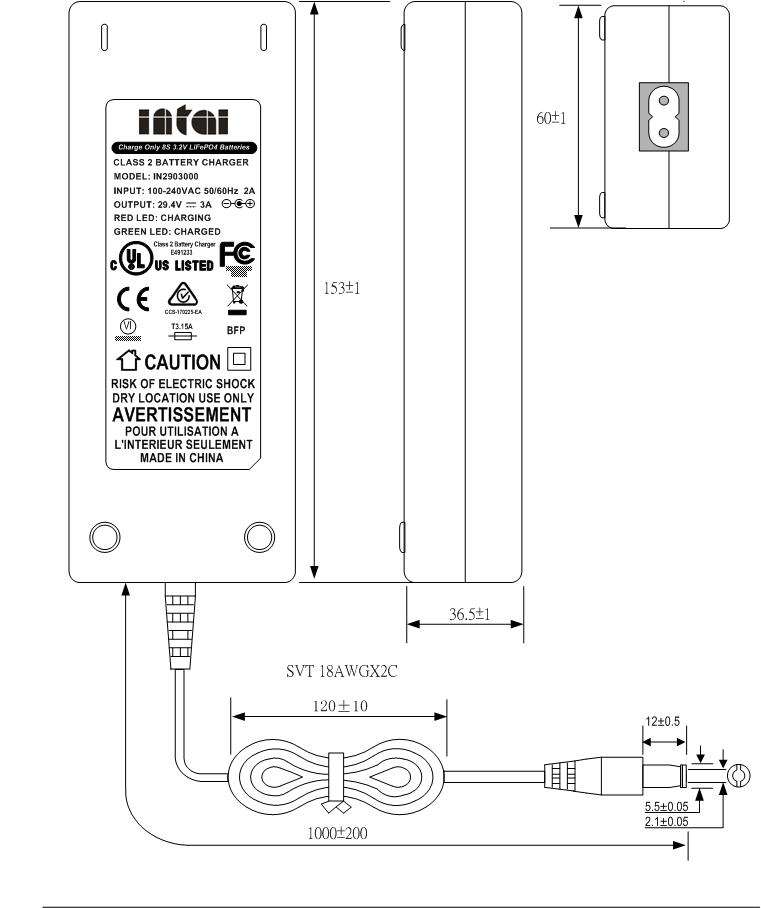

Mechanical Details(mm)
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
Get in touch with us today.
Factory Show
