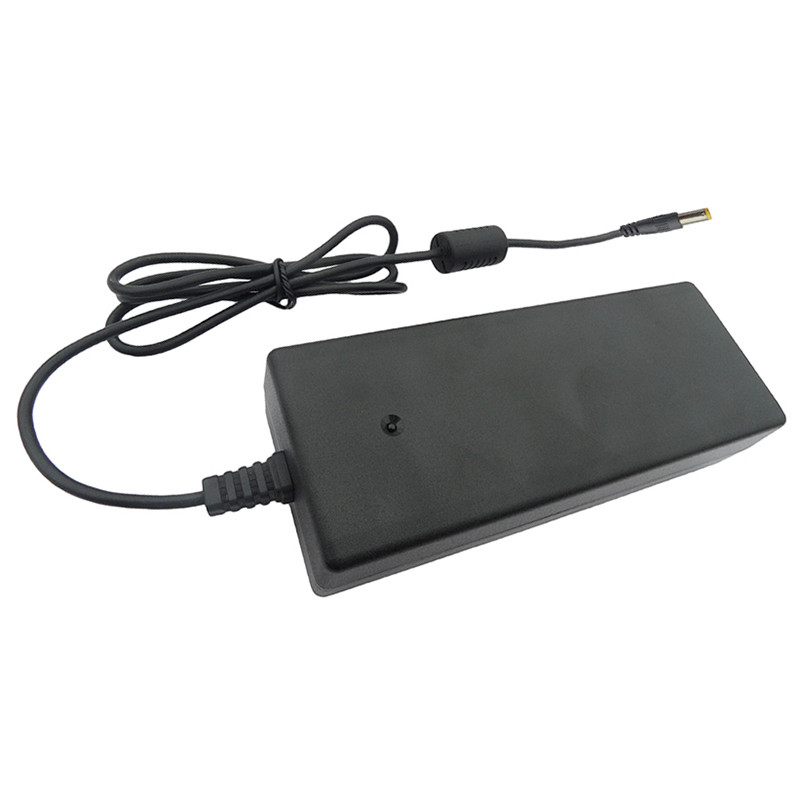

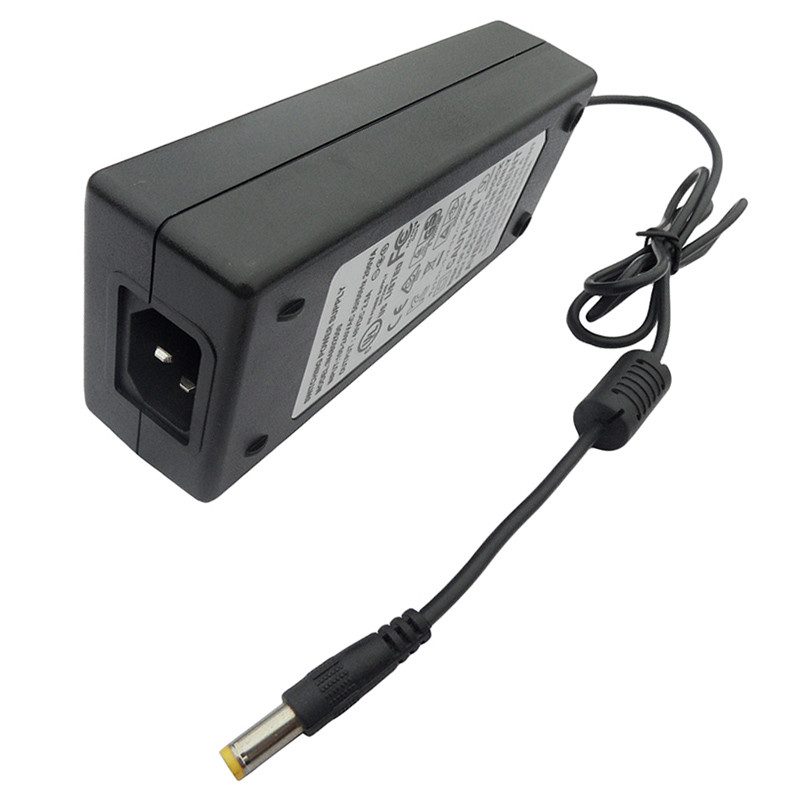

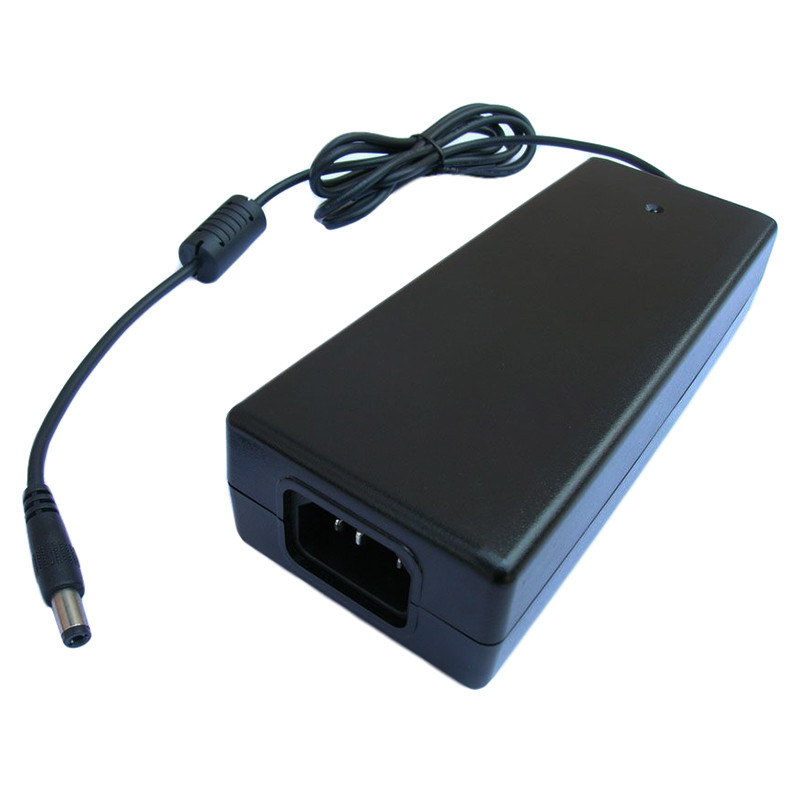

24V 5A power adapter
Model :IN2405000
Output :24V 5A
Brand :Intai
Product origin : China
Supply capacity :2000pcs/day
Warranty : 3 year
The 24V 5A power adapter employs latest technologies to achieve excellent regulation, high power density and safety with good EMI performance. The 24V 5A AC DC adapter is flyback topology based, and is equipped with green-mode power-saving operation, resulting in low standby power and high-efficiency solution. The 24V 5A adapter features multiple protection functions to guarantee safe operation and reliability including OCP,OVP,OLP.. The adaptor 24V 5A is certified to UL cUL GS/CE PSE RCM safety standards, to ensure the UL 24V 5A power adapter offers a safe and durable power supply solution in a wide variety of application field.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.21W | |
Average Efficiency | >88% | |
Power Factor (Typ) | >0.9 | |
Output | Output Voltage | 24V±5% |
Rated Current | 5A | |
Ripple & Noise | 250mV | |
Hold Up Time | >15mS(115/230Vac input at full load) | |
Transient Response(Typ) | 0.5mS for 50% load change | |
Line Regulation | ±2% max | |
Load Regulation | ±5% max | |
Protection | Over Current | 150% of rated output current, hiccup mode, auto recovery |
Over Voltage | 120%~150% of rated output voltage, hiccup mode | |
Input | 3.15A current fuse | |
Short Circuit | Auto recovery | |
Safety Certifications | UL60950-1, 2nd Edition, 2014 | Certificate Number: E472300 |
CAN/CSA C22.2 No.60950-1-07,2nd Edition, 2014 | Certificate Number: E472300 | |
TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2 | Certificate Number: S 50297489 | |
RCM/AS NZS60950.1:2011+A1 | Certificate Number: TUV017488EA | |
PSE/J60950-1(H26) | Certificate Number: JD 50300674 | |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
Radiated Immunity | IEC61000-4-3 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -20℃~+45℃ |
Storage Temp | - 40℃~+70℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |

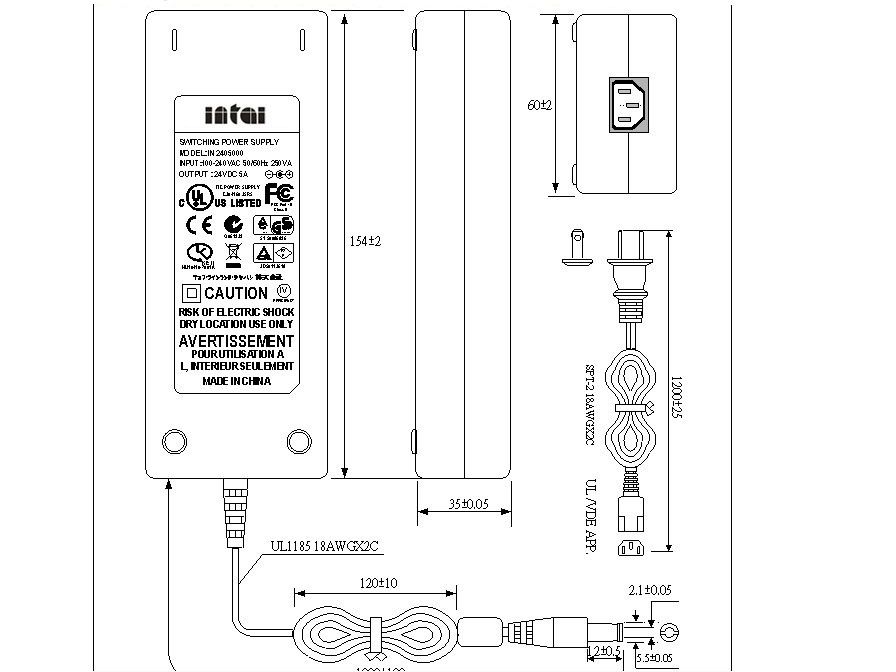

Mechanical Details(mm)
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
