24V 7S 18650 lithium ion battery charger
Model :IN2903000
Output :29.4V 3A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
Intai offers an array of batery charger that charge lithium battery chemistries through modern algorithms. Employed the latest charging technology, the charging is not only safe, but also optimize batery performance and service life. The 24V lithium battery charger with XLR connector is compatible with many mobility scooters and powered wheelchair that powered by 7S cell Lithium-ion batery pack nominal voltage 24 volt sized 10AH or larger. The 29.4V charger has UL /CE/RCM rating, complies with ISO7176-25 regulations. The charging stage is protected by 12 hours time out. The 24 volt lithium battery charger is equipped with efficient heat dissipation design for natural cooling to greatly enhance reliability, The 24V li ion battery charger is backed by a 3 year warranty.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 17-29.4V |
Open Circuit Voltage | 29.4V±5% | |
Charge Current | 3A±5% | |
Battery Type | 24V 7S 18650 Lithium ion battery | |
Battery capacity recommended | 10AH~24AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.5kgs |
The 24 volt lithium battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the 24V li ion battery charger
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |

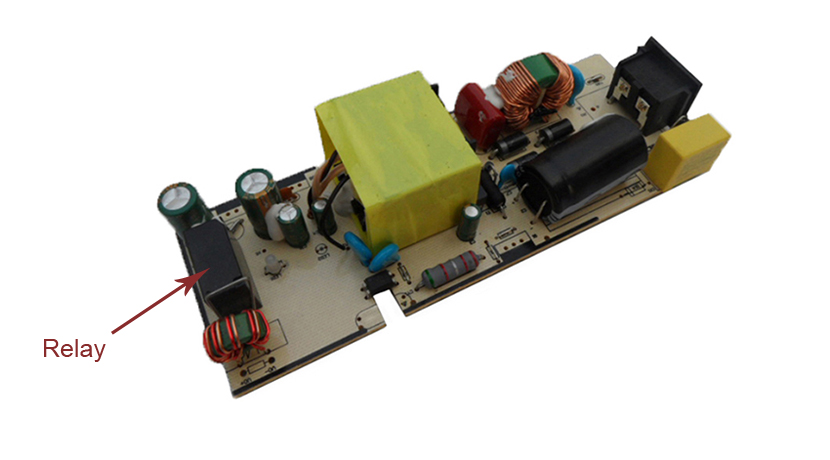

When charger is disconnected from the mains, or battery is fully charged, a relay is used to disconnect the charger from the batteries automatically, to prevent the battery from flowing back (Backfeed).

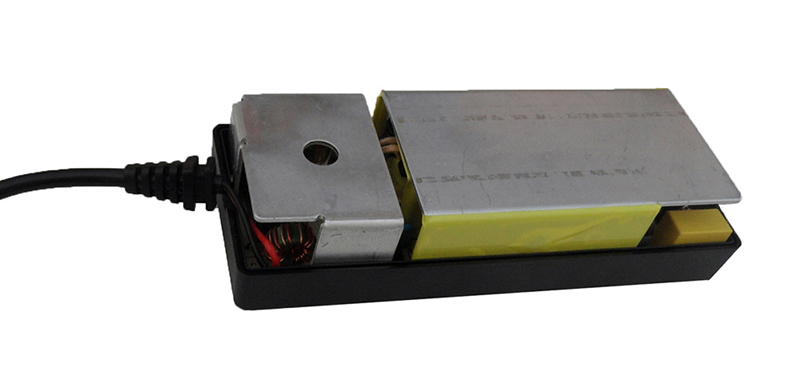

Effective natural cooling thermal management enhances operating performance and reliability. U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The 24V 7S 18650 lithium ion battery charger operates safely and silently. With the application of soft start technology, the output is spark free.

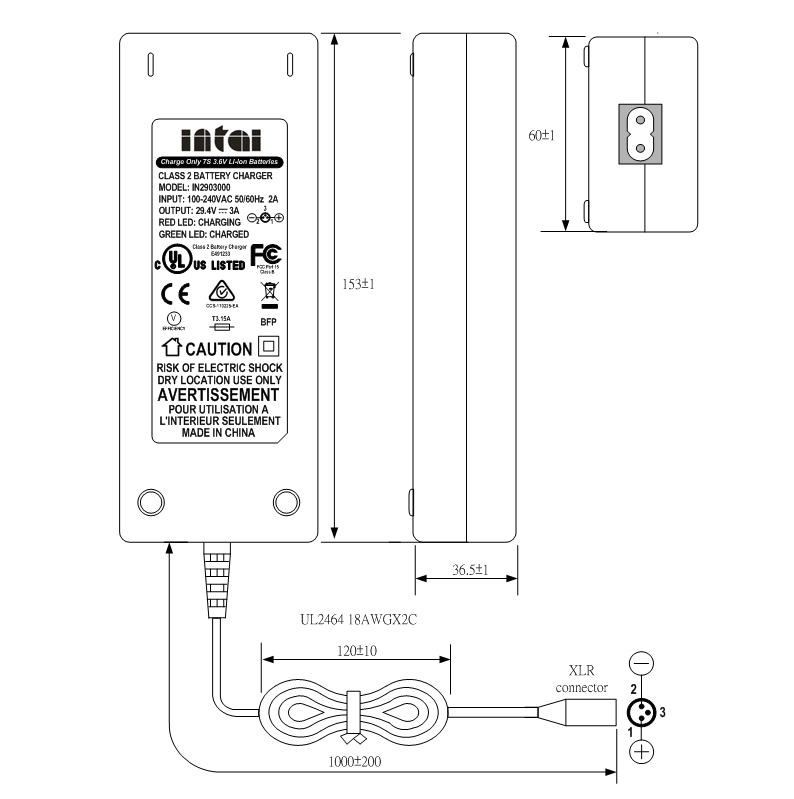

Product Dimension(mm)
Safety Certificates
