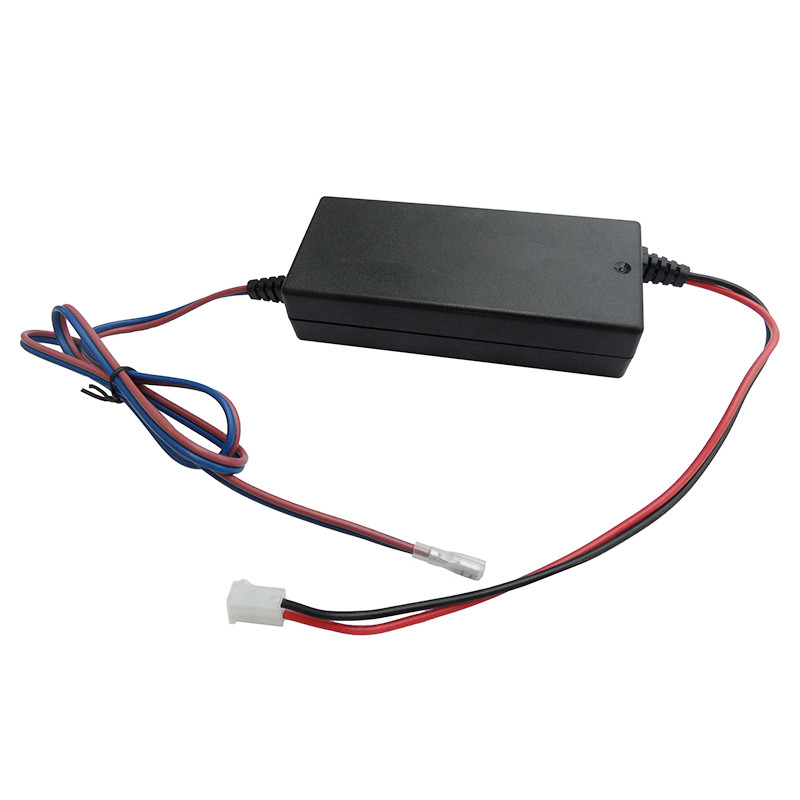

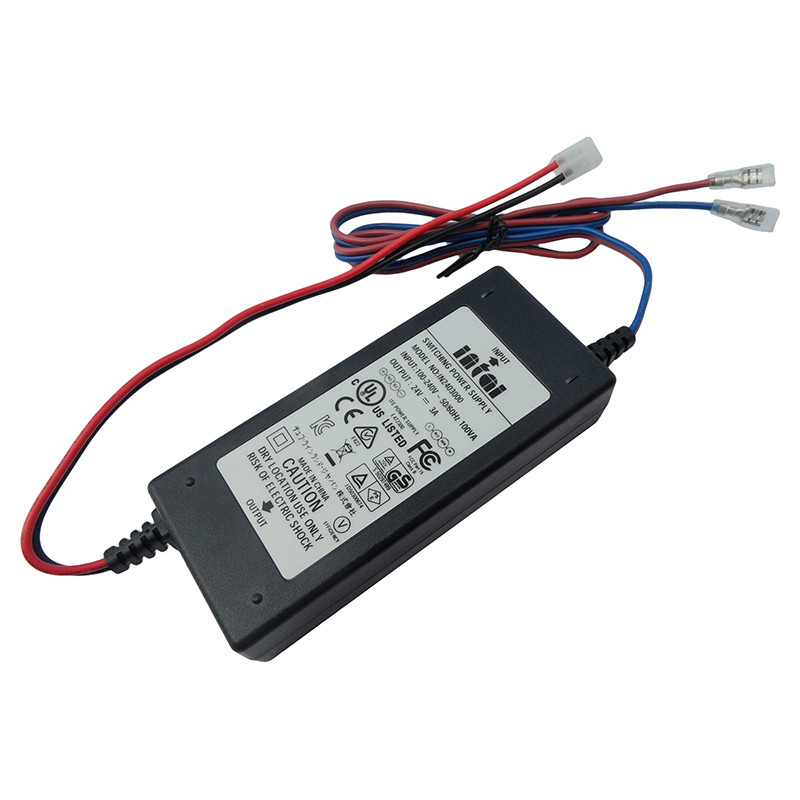

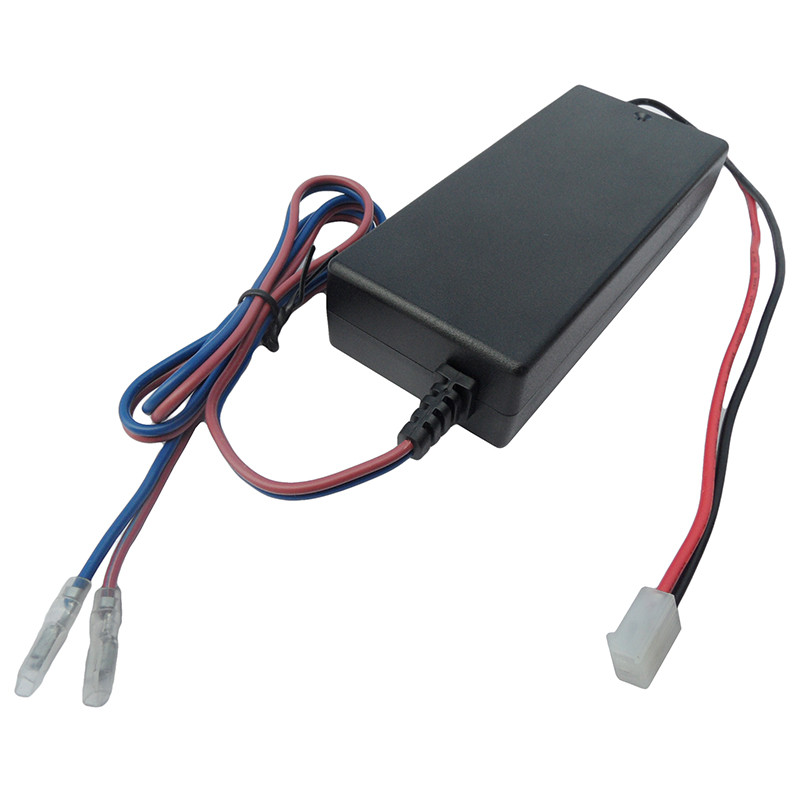

24V adapter

Model :IN2403000

Output :24V 3A

Brand :Intai

Product origin :China

Supply capacity :2000pcs/day

Warranty :3 year

The AC DC adapter 24V 3A is built with the latest power supply technologies and the quality components materials to enable high performance. It features Opto-Coupled Feedback Enables up to 2% Regulation, 80-kHz Maximum Switching Frequency, Excellent EMC performance, High operating efficiency and Green-mode Power-Saving Operation to meet the global efficiency standards. The AC adapter 24V output features full protection to maximize the reliability. These features include OLP(Over Load Protection), OVP (Over Voltage Protection), output short-circuit protection. Effective thermal management reduces thermal stress on power supply reliability, enables the 24 volt ac adapter to operate at full power in higher ambient temperatures.
The 24V adapter series is safety certified to IEC/UL/CSA/EN/RCM/J 60950-1 and carries the CE mark for the Low Voltage and RoHS Directives. The 24V AC power adapter is also compliant to EN 55022-B and FCC Class B for radiated and conducted emissions and the IEC 61000-4 immunity and IEC 61000-3-2 harmonic current standards.

Product Specification

Input	Voltage Range	90-264VAC
	Frequency Range	47-63Hz
	Standby Power	<0.21W
	Average Efficiency	>88%
	Power Factor (Typ)	>0.9
Output	Output Voltage	24V±5%
	Rated Current	3A
	Ripple & Noise	250mV
	Hold Up Time	>15mS(115/230Vac input at full load)
	Transient Response(Typ)	0.5mS for 50% load change
	Line Regulation	±2% max
	Load Regulation	±5% max
Protection	Over Current	150% of rated output current, hiccup mode, auto recovery
	Over Voltage	120%~150% of rated output voltage, hiccup mode
	Input	3.15A current fuse
	Short Circuit	Auto recovery
Safety Certifications	UL60950-1, 2^nd Edition, 2014	Certificate Number: E472300
	CAN/CSA C22.2 No.60950-1-07,2^nd Edition, 2014	Certificate Number: E472300
	TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2	Certificate Number: S 50297489
	RCM/AS NZS60950.1:2011+A1	Certificate Number: TUV017488EA
	PSE/J60950-1(H26)	Certificate Number: JD 50300674
EMC	Emissions	EN55022, Class B
	Harmonic currents	EN61000-3-2, Class A
	Voltage Flicker	EN61000-3-3 Section 5
	ESD Immunity	IEC61000-4-2
	Radiated Immunity	IEC61000-4-3
	EFT Burst	IEC61000-4-4
	Surge	IEC61000-4-5
	Conducted Immunity	IEC61000-4-6
	Dip & Interruptions	IEC61000-4-11
Environment	Operating Temp	-20℃~+45℃
	Storage Temp	-40℃~+70℃
	Relative Humidity	5%~90%
Other	MTBF	40000H min, MIL-HDBK-217F ( 25℃ )
Other	Net Weight	0.4kgs

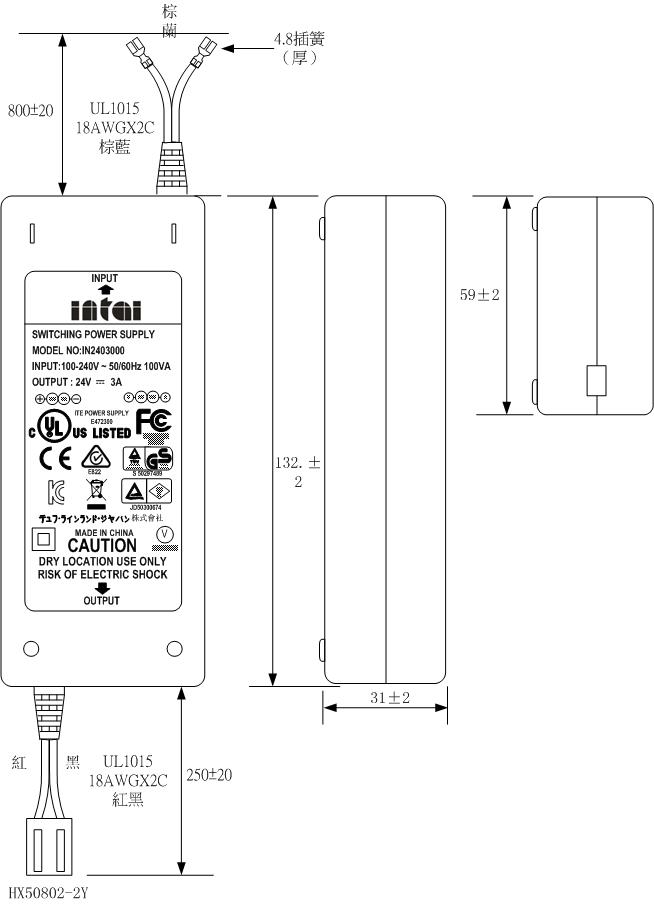

Mechanical Details(mm)

ac adapter 24v output

Safety Certificates

24 volt ac adapter

A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.

24v ac power adapter

With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
