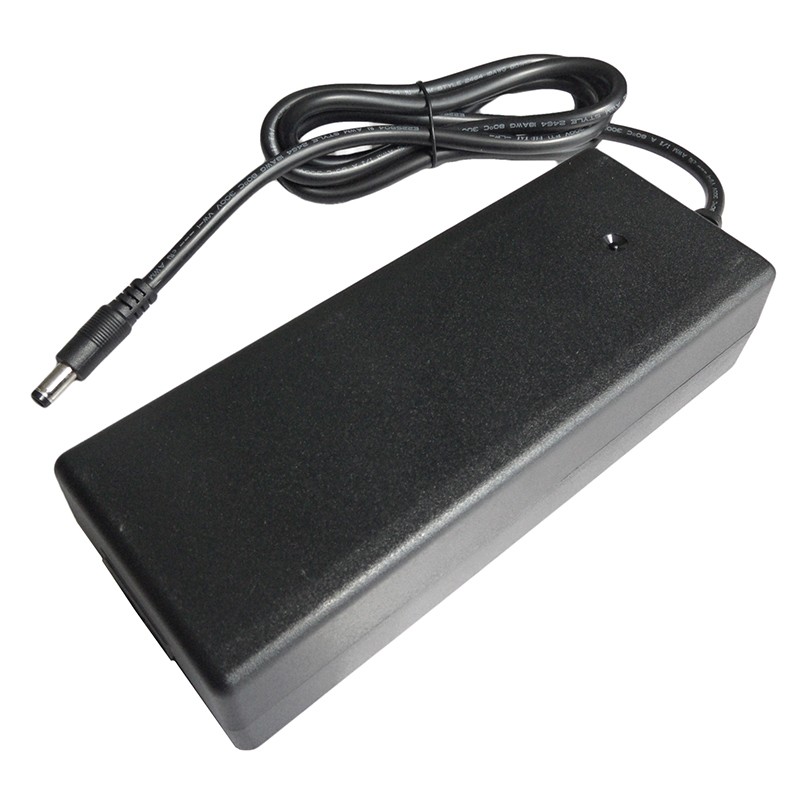

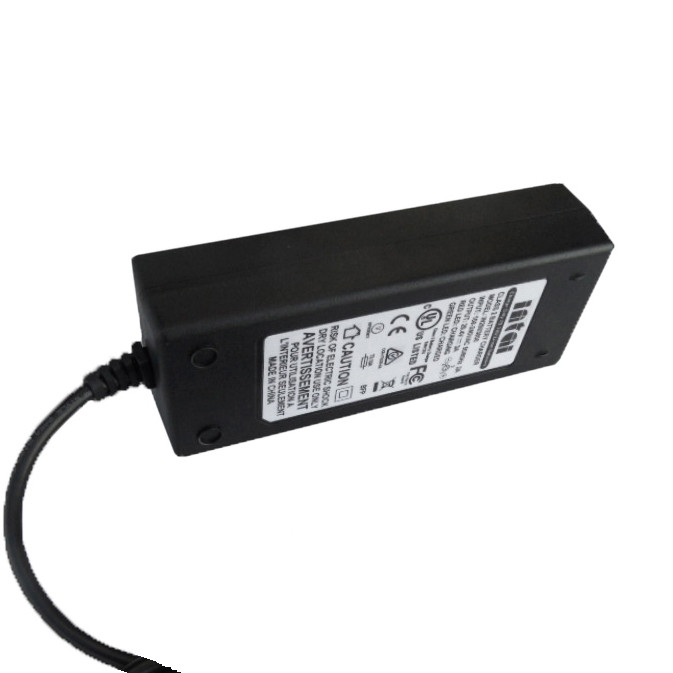

24V lead acid battery charger
Model :IN2902500
Output :29.4V 2.5A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
The 24V Lead Acid Battery Charger provides 2.5A constant current(CC) and constant voltage (CV) 29.4Vdc to battery to charge without overheating, shuts off when batteries are charged. Intelligent charge is implemented by microprocessor based control. The 24 volt lead acid battery charger protects against short circuit, reverse connection, reverse flow enabling the product to charge safely in any environments of an ambient temperature of -10℃~40℃. The 24V battery charger lead acid comes with XLR Charging port with three prongs. More features of the 24V lead battery charger: Perfect for SLA or GEL battery packs, high efficiency, long life and high reliability, 100% full load and burn-in test.
Product Specification
| Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
| Boost Charge Voltage | 17-29.4V |
Open Circuit Voltage | 29.4V±5% | |
Charge Current | 2.5A±5% | |
Battery Type | 2S cell Sealed Lead acid 24 volt sla battery | |
Battery capacity recommended | 8AH~20AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |
The 24V sealed lead acid battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge status indicator of the 24V sealed lead acid battery charger
Red |
|
Green |
|
Red flash |
|

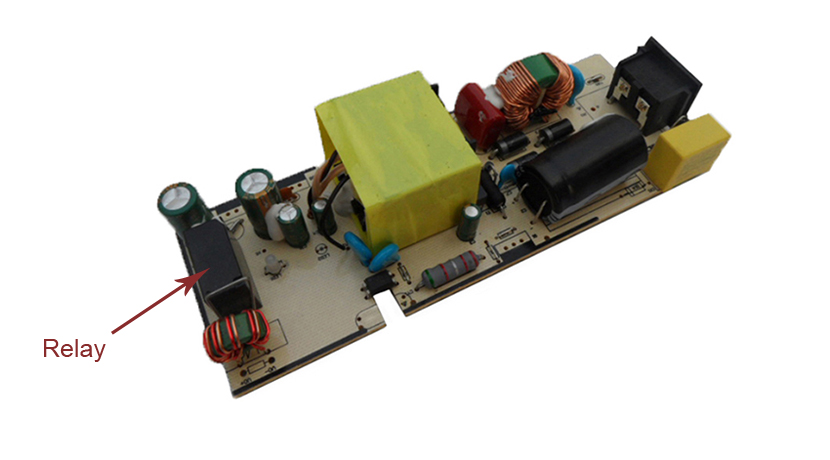

When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).

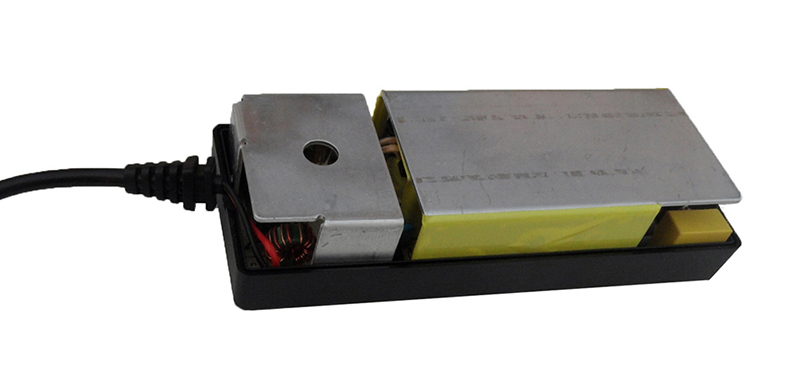

U-shaped heat sinks which fit perfectly with the housing, dissipate heat in an effective way to ensure the charger with long life span.
The switch mode 24 volt SLA battery charger comes with very low noise and excellent EMC performance. Soft-start enables spark free, which to enhance reliability and safety greatly.

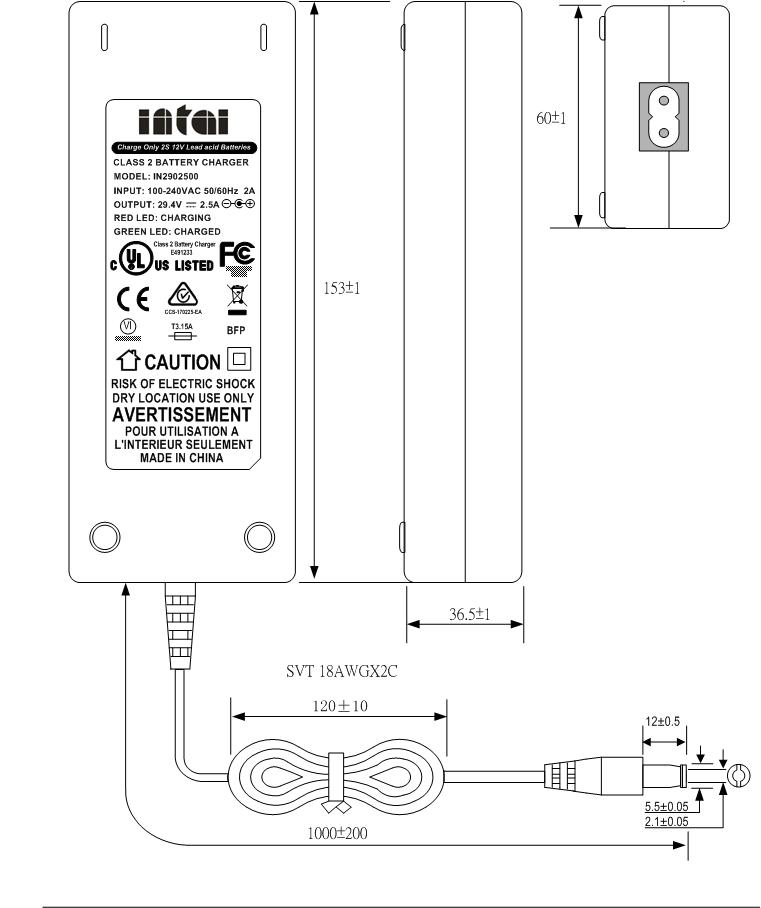

Mechanical Details(mm)
Safety certificates
