25.2V lithium battery charger
Model :IN2502000
Output :25.2V 2A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
The 25.2V lithium battery charger is suitable for use on 6S 22.2V li-ion and lipo battery of size 7 AH or larger. The built-in intelligent microprocessor will continuously monitor and adjust the 6S lipo battery charger to provide a fast, safe and efficient charge. The 22.2V li-ion battery charger was designed based on the latest standards and regulations including DOE for Energy efficiency level VI. The modiary lithium-ion battery charger also provides excellent EMC performance.
With more than 400 models to choose from, Intai is a good place to find high quality and safety approved battery chargers at factory prices. Intai has been the supplier of choice to many of the world's leading brands.
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
Output | Boost Charge Voltage | 14-25.2V |
Open Circuit Voltage | 25.2V±5% | |
Charge Current | 2A±5% | |
Battery Type | 6S cell 22.2V Lithium-ion Li-ion battery | |
Battery capacity recommended | 6AH~16AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 3.15A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1310 Class 2 battery charger | Certificate Number: E491233 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA | |
EMC | Emissions | EN55014, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -10℃~40℃ |
Storage Temp | -20℃~80℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.4kgs |
The 22.2V li-ion battery charger is designed to maximize the life of batteries. A multi-stage charge profile and protections are implemented to reduce stress on the battery.
Charge Status Indicator of the 6S lipo Battery Charger
Red | ● Charging or disconnect form the batteries |
Green | ● Batteries fully charged |
Red flash | ● Reverse connection with the battery ● Faulty battery ● Short circuit |
When charger is disconnected from the mains, or battery is fully charged, a relay is used to automatically disconnect the charger from the batteries, to prevent the battery from flowing back (Backfeed).
The modiary charger works silently and safely. With the application of soft start technology, the output is spark free.

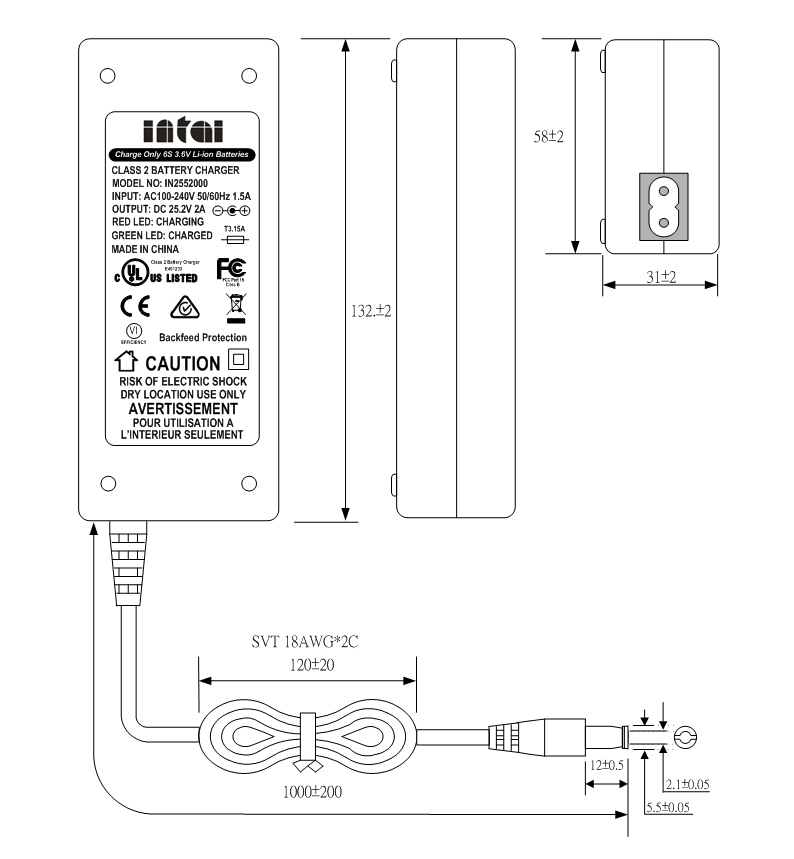

Product Dimension(mm)
