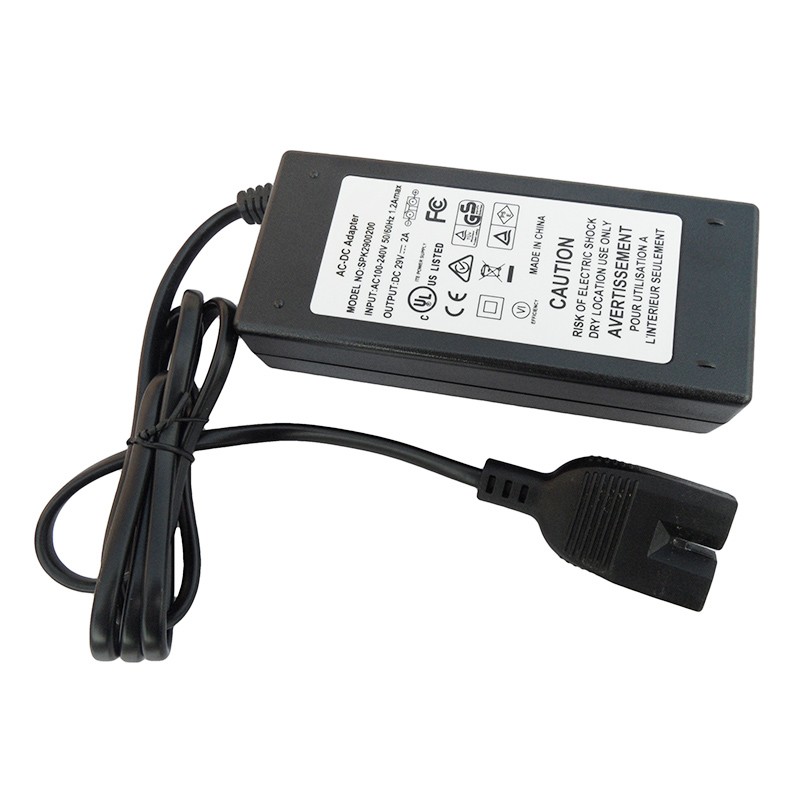

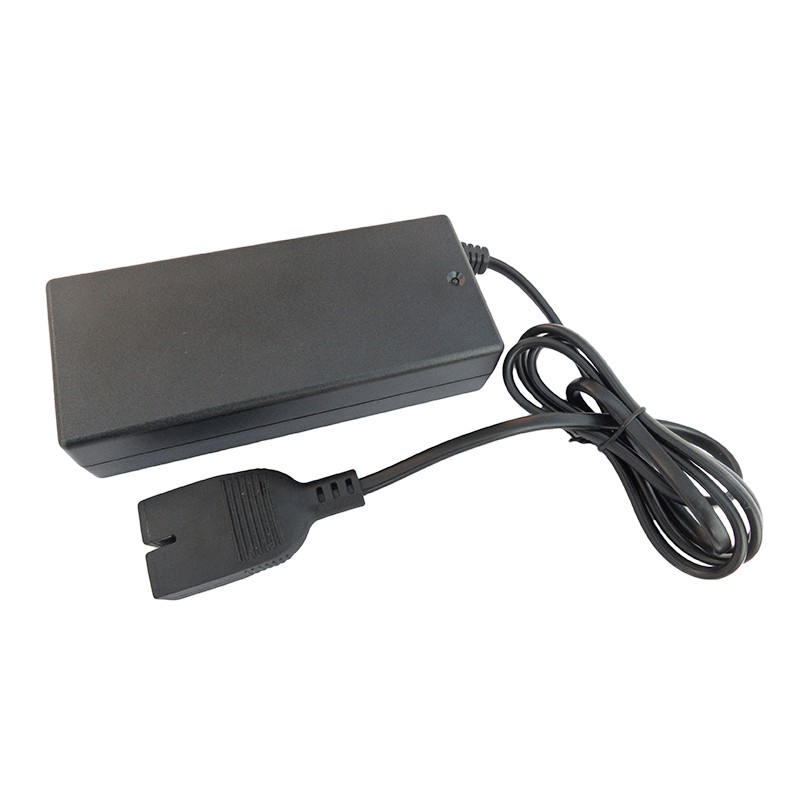

29V 2A Battery charger
Model :IN2902000
Output :29V 2A
Brand :Intai
Product origin :China
Supply capacity :2000pcs/day
Warranty :3 year
This power supply 29V 2A employs an isolated-flyback power-supply controller that provides Constant-Voltage (CV) using an optical coupler to improve transient response to large-load steps. The 29V power supply processes information from opto-coupled feedback and an auxiliary flyback winding for high-performance control of output voltage and current. The output voltage is regulated accurately by a high-performance voltage-mode amplifier with an accurate voltage reference. The 29V dc power supply is built with power-saving technologies limit the no-load power consumption to lowest level. The 29 volt power supply also features excellent EMC performance.
The output over-voltage and over-load protection greatly enhances the system reliability. Effective thermal management reduces thermal stress on power supply reliability, allows the 29 volt dc power supply to operate at full power in higher ambient temperatures (see our UL/TUV documents).
Intai also offers quality 29V 2A battery charger which is battery charger certified for Lead acid, lithium or LPF batteries. See more here http://www.adapter-intai.com/product/24v-2a-battery-charger .
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.21W | |
Average Efficiency | >88% | |
Power Factor (Typ) | >0.7 | |
Output | Output Voltage | 29V±5% |
Rated Current | 2A | |
Ripple & Noise | 300mV | |
Hold Up Time | >15mS(115/230Vac input at full load) | |
Transient Response(Typ) | 0.5mS for 50% load change | |
Line Regulation | ±2% max | |
Load Regulation | ±5% max | |
Protection | Over Current | 150% of rated output current, hiccup mode, auto recovery |
Over Voltage | 120%~150% of rated output voltage, hiccup mode | |
Input | 3.15A current fuse | |
Short Circuit | Auto recovery | |
Safety Certifications | UL60950-1, 2nd Edition, 2014 | Certificate Number: E472300 |
CAN/CSA C22.2 No.60950-1-07,2nd Edition, 2014 | Certificate Number: E472300 | |
TUV/GS/CE/LVD EN60950-1, 2006+A11+A1+A12+A2 | Certificate Number: S 50297489 | |
RCM/AS NZS60950.1:2011+A1 | Certificate Number: TUV017488EA | |
PSE/J60950-1(H26) | Certificate Number: JD 50300674 | |
EMC | Emissions | EN55022, Class B |
Harmonic currents | EN61000-3-2, Class A | |
Voltage Flicker | EN61000-3-3 Section 5 | |
ESD Immunity | IEC61000-4-2 | |
Radiated Immunity | IEC61000-4-3 | |
EFT Burst | IEC61000-4-4 | |
Surge | IEC61000-4-5 | |
Conducted Immunity | IEC61000-4-6 | |
Dip & Interruptions | IEC61000-4-11 | |
Environment | Operating Temp | -20℃~+45℃ |
Storage Temp | -40℃~+70℃ | |
| Relative Humidity | 5%~90% | |
Other | MTBF | 40000H min, MIL-HDBK-217F ( 25℃ ) |
Net Weight | 0.3kgs |

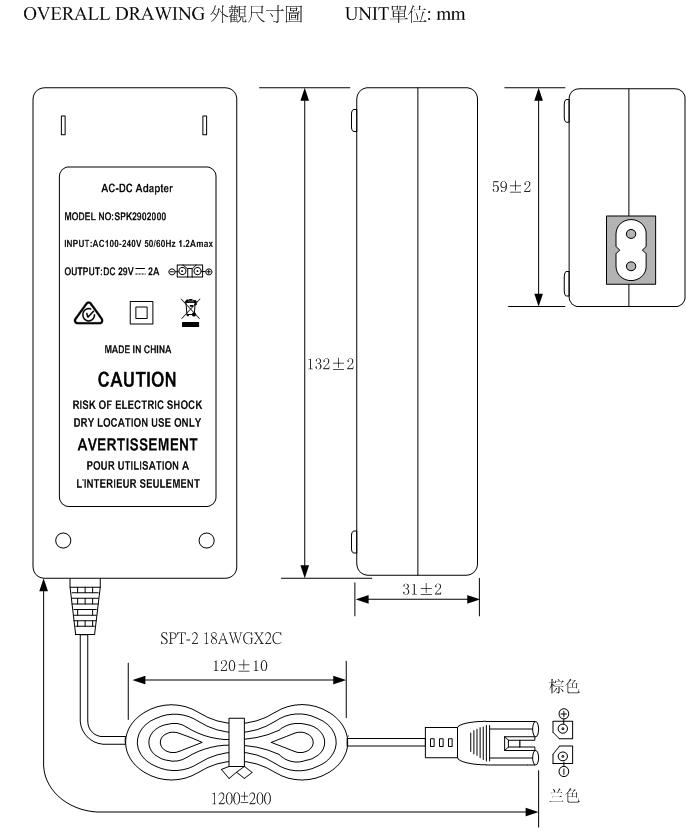

Product Dimension
Safety Certificates
A real manufacturer - with 50+ employees, our daily output is 2000-3000 pcs.
With the implementation of ISO9000 management and well trained workers, our 5 experienced engineers and 15 QC experts are ready to process your next orders.
Get in touch with us today.
Factory Show
